Brand: Panduit
|
SKU:
247063
Panduit PP1S-S12-X | Cable Tie Mount, Standoff, 2.0"; (50.8mm)H #12 Screw (M6), Pack of 10
Regular price
$23.72
Unit price
Shipping calculated at checkout.
-
Low prices.
Price match guarantee
-
In-House Experts.
We know our products
-
Easy Returns.
Quick & Hassle Free
-
Superior Selection.
Extensive product catalog
Panduit PP1S-S12-X | Cable Tie Mount, Standoff, 2.0"; (50.8mm)...
Regular price
$23.72
Unit price
Description
Description

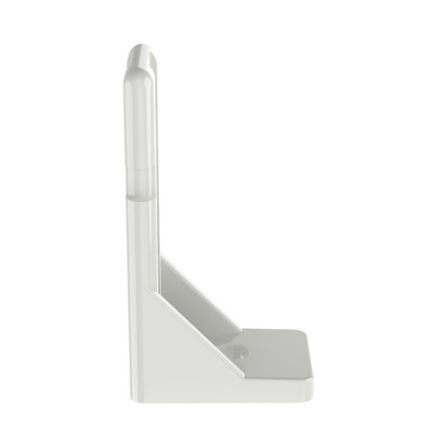

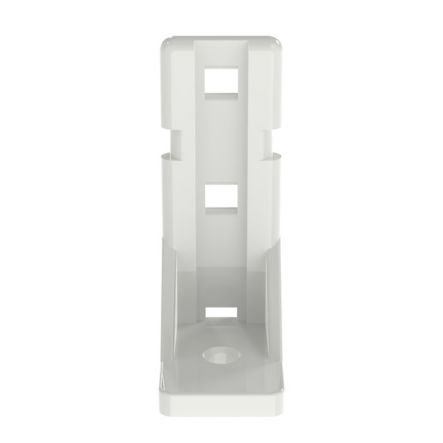

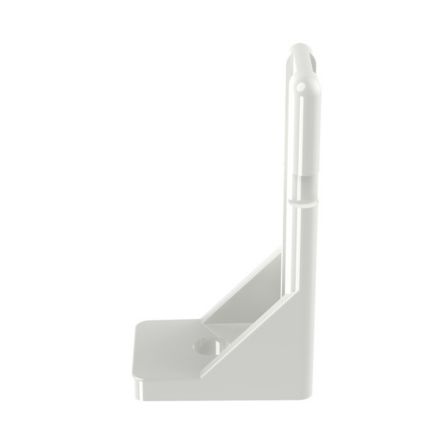

Panduit PP1S-S12-X | Pan-Post PP1S-S12-X Cable Tie Mount
The pan-post standoff is natural color and requires a #12 (M5.5) screw. It measures 1.06"L x .72"W x 1.97"H (26.9 x 18.3 x 50.0 mm). It is used with miniature, intermediate, and standard cable ties. It comes in packages of 10.
Specifications
Specifications
Panduit - PP1S-S12-X - Product Categories
- Wire Routing, Management & Protection
- Cable Tie Mounts
Panduit - PP1S-S12-X - Specifications
| Brand Name | Panduit |
|---|---|
| Manufacturer Part Number | PP1S-S12-X |
| Item Description | Pan-Post PP1S-S12-X Cable Tie Mount |
| Application | Pan-Post Standoff Supports Cable Bundles Above or Away from Surface |
| Product Type | Cable Tie Mount |
| Color | Natural |
| Flammability Rating | UL94V-2 |
| Environment | Indoor |
| Material | Nylon 6.6 |
| Maximum Operating Temperature (°C) | 85 |
| Maximum Operating Temperature (°F) | 185 |
| Minimum Loop Tensile Strength (N) | 222 |
| Minimum Loop Tensile Strength (lb) | 50 |
| Minimum Operating Temperature (°C) | -60 |
| Minimum Operating Temperature (°F) | -76 |
| Mount Method | Screw |
| Mounting Hole Thread Size | #12 |
| Overall Height (In.) | 1.97 |
| Overall Height (mm) | 50 |
| Overall Length (In.) | 1.06 |
| Overall Length (mm) | 26.9 |
| Overall Width (In.) | 0.72 |
| Overall Width (mm) | 18.3 |
| Standards Met | cULus 62275 Type 2,21 (E136577), CE Compliant, RoHS Compliant |
| Sub Brand | Pan-Post |
| For Use With | Miniature, Intermediate, Standard Cross-Section Ties |
Panduit - PP1S-S12-X - Package Information
| UPC | 07498339882 |
|---|---|
| Standard Pkg. Qty. | 10 |
| Standard Package Volume (cf) | 0.0420 |
| Standard Ctn. Qty. | 100 |
| Standard Ctn. Volume (cf) | 0.4196 |
Panduit - PP1S-S12-X - Videos
| Video 1 | Click to View |
|---|
