Brand: Panduit
|
SKU:
223688
Panduit PP2S-S12-C | Pan-Post PP2S-S12-C Post Standoff, Natural, PA 6.6, 4.6x0.72", 0.23" Screw Hole
Regular price
$152.57
Unit price
Shipping calculated at checkout.
-
Low prices.
Price match guarantee
-
In-House Experts.
We know our products
-
Easy Returns.
Quick & Hassle Free
-
Superior Selection.
Extensive product catalog
Panduit PP2S-S12-C | Pan-Post PP2S-S12-C Post Standoff, Natural, PA...
Regular price
$152.57
Unit price
Brand: Panduit
|
SKU:
223688
Panduit PP2S-S12-C | Pan-Post PP2S-S12-C Post Standoff, Natural, PA 6.6, 4.6x0.72", 0.23" Screw Hole
Regular price
$152.57
Unit price
Shipping calculated at checkout.
Description
Description

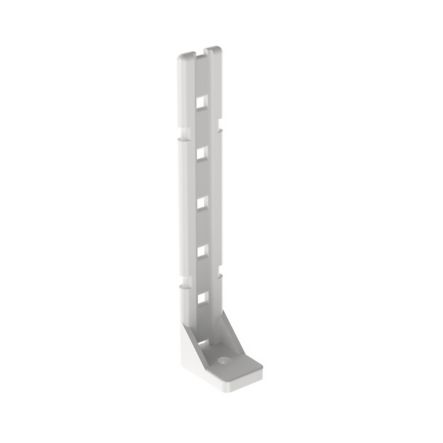

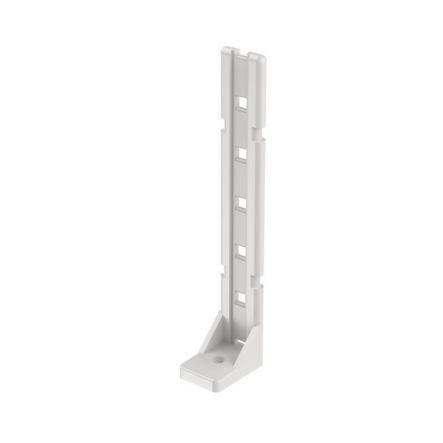

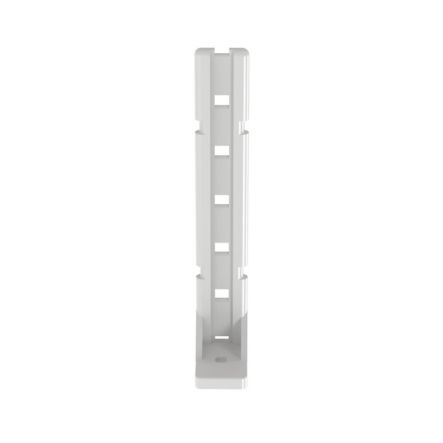

Panduit PP2S-S12-C | Pan-Post PP2S-S12-C Post Standoff, Natural, PA 6.6, 4.6x0.72", 0.23" Screw Hole
Panduit PP2S-S12-C Pan-Post Standoffs support cable bundles above or away from the surface. For use in indoor environments and with size #12 (M5.5) screws. They are 1.06" x .72" x 1.97" (26.9 x 18.3 x 50.0 mm) in size and can be used with miniature, intermediate, and standard cable ties. Made of Nylon 6.6, are natural in color and come in packages of 100.
Supports Cable Bundles Above or Away from Surface
Specifications
Specifications
Panduit - PP2S-S12-C - Product Categories
- Wire Routing, Management & Protection
- Cable Tie Mounts
Panduit - PP2S-S12-C - Specifications
| Brand Name | Panduit |
|---|---|
| Manufacturer Part Number | PP2S-S12-C |
| Item Description | Pan-Post PP2S-S12-C Post Standoff, Natural, PA 6.6, 4.6x0.72", 0.23" Screw Hole |
| Application | Pan-Post Standoff Supports Cable Bundles Above or Away from Surface |
| Product Type | Cable Tie Mount |
| Color | Natural |
| Environment | Indoor |
| Material | Nylon 6.6 |
| Maximum Operating Temperature (°C) | 85 |
| Maximum Operating Temperature (°F) | 185 |
| Minimum Operating Temperature (°C) | -60 |
| Minimum Operating Temperature (°F) | -76 |
| Mount Method | Screw |
| Mounting Hole Thread Size | #12 |
| Overall Height (In.) | 4.6 |
| Overall Height (mm) | 116.8 |
| Overall Length (In.) | 4.6 |
| Overall Length (mm) | 116.8 |
| Overall Width (In.) | 0.72 |
| Overall Width (mm) | 50.3 |
| Standards Met | CE Compliant, UL Recognized: E136577, RoHS Compliant |
| Sub Brand | Pan-Post |
| For Use With | Miniature, Intermediate, Standard Cross-Section Ties |
Panduit - PP2S-S12-C - Package Information
| UPC | 07498374001 |
|---|---|
| Standard Package Quantity | 100 |
| Standard Package Volume (cf) | 0.2163 |
| Standard. Ctn. Quantity | 1000 |
| Standard. Ctn. Volume (cf) | 2.1626 |
Panduit - PP2S-S12-C - Videos
| Video 1 | Click to View |
|---|
