Panduit PP2S-S12-X | Pan-Post Post Standoff, Natural, PA 6.6, 4.6x0...
Description
Description
Ensure a tidy workspace with our standoff cable tie mount. Perfect for various tie sizes, it keeps cable bundles elevated or separated from surfaces, promoting an organized and efficient environment.

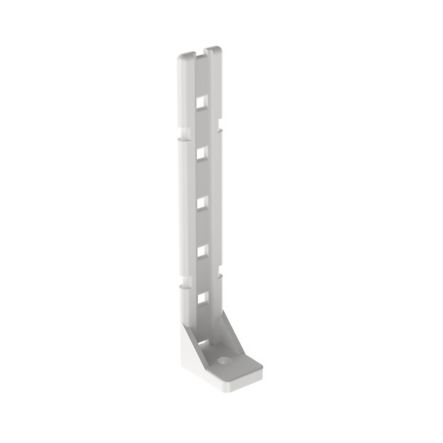

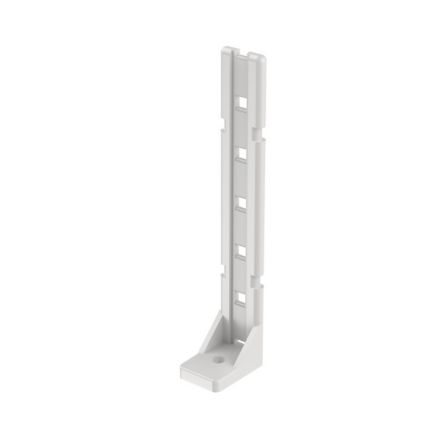

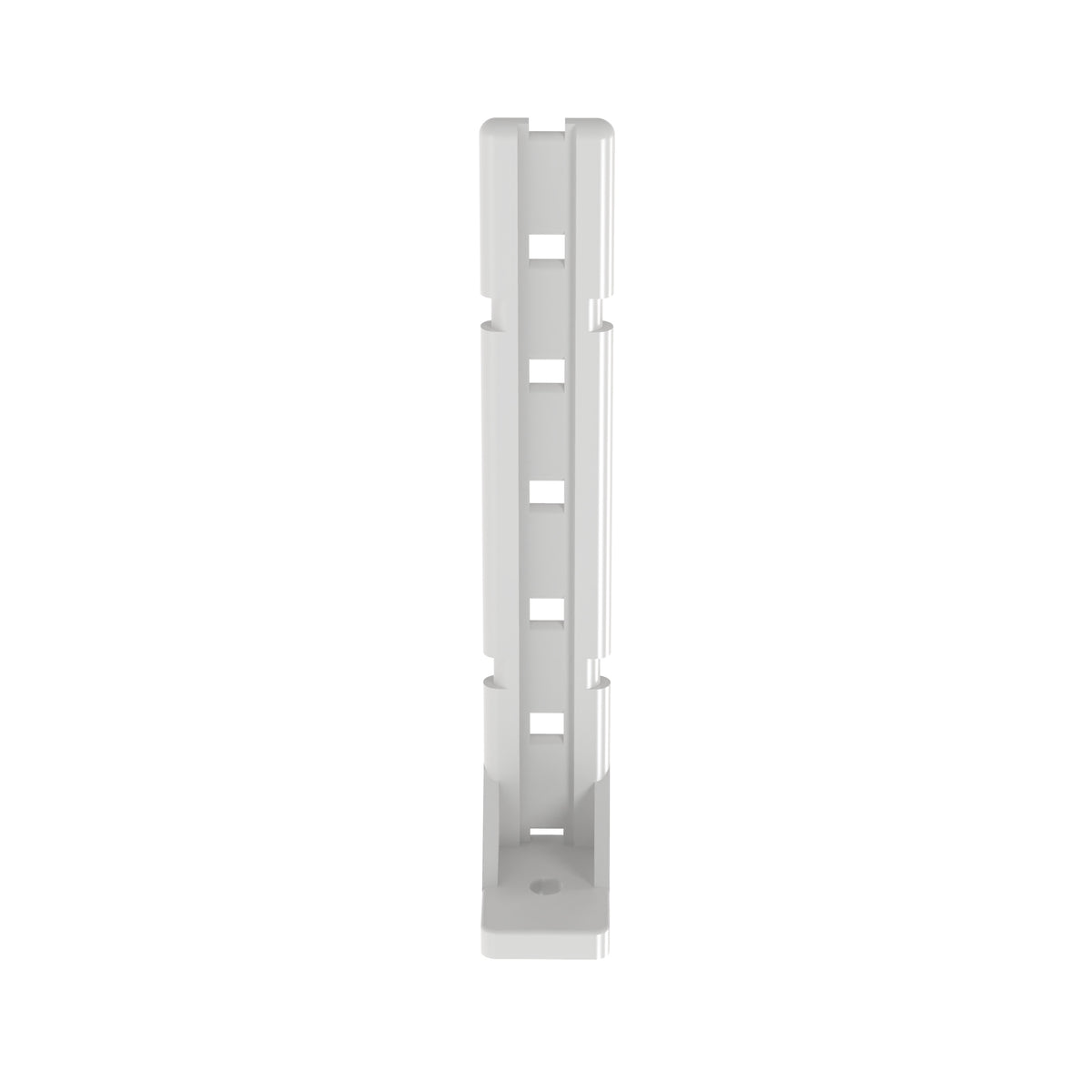

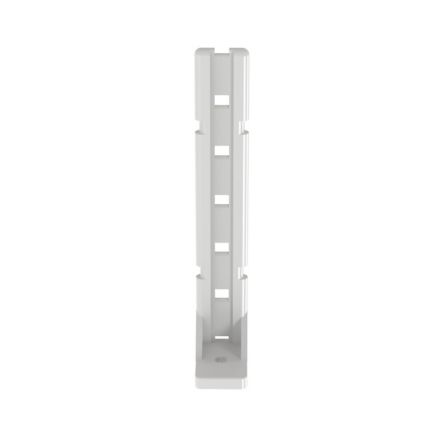

Pan-Post standoff, mounting method #12/M5.5 screw, 1.06"L x .72"W x 4.60"H (26.9mm x 18.3mm x 116.9mm). Used with cable ties M,I,S., standard package.
Panduit Pan Post Standoff, Threaded Mount, 0.188 in Maximum Tie Width, 1.06 in Base Length, 0.72 in Base Width, Nylon, Natural
Panduit - PP2S-S12-X - Features
- Supports cable bundles above or away from surface
- Polyamide (PA) insulation
- For use with miniature, intermediate and standard cable ties
- Support cable bundles above or away from surface
- For indoor use only
Specifications
Specifications
Panduit - PP2S-S12-X - Specifications
| Brand Name | Panduit |
|---|---|
| Manufacturer Part Number | PP2S-S12-X |
| UNSPSC Code | 24102001 |
| Product Type | Cable Tie Mount |
| Application | Pan-Post Standoff Supports Cable Bundles Above or Away from Surface |
| Color | Natural |
| Environment | Indoor |
| Material | Nylon 6.6 |
| Maximum Operating Temperature (°C) | 85 |
| Maximum Operating Temperature (°F) | 185 |
| Minimum Operating Temperature (°C) | -60 |
| Minimum Operating Temperature (°F) | -76 |
| Mount Method | Screw-On |
| Mounting Hole Thread Size | #10 |
| Overall Length (In.) | 4.6 |
| Overall Length (mm) | 116.8 |
| Overall Width (In.) | 0.72 |
| Overall Width (mm) | 50.3 |
| Overall Height (In.) | 4.6 |
| Overall Height (mm) | 116.8 |
| Standards Met | CE Compliant, UL Recognized: E136577, RoHS Compliant |
| Sub Brand | Pan-Post |
| For Use With | Miniature, Intermediate, Standard Cross-Section Ties |
| UPC | 07498374002 |
Panduit - PP2S-S12-X - Videos
| Panduit PP2S-S12-X Video 1 | Click to View |
|---|
