Panduit PPF2SV-S25-V69 | Pan-Post Flat Post Standoff, Ivory, V-0 PA...
Description
Description

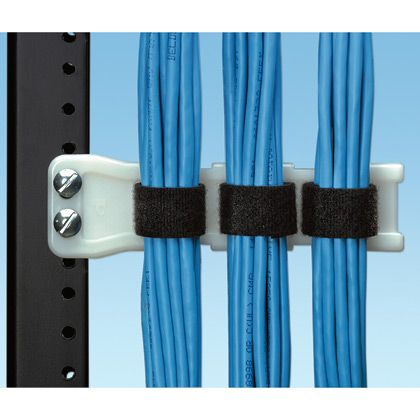

Keep cables organized and secure with our flat standoff cable tie mount. Resistant to heat and wear, it supports bundles above or away from surfaces, ensuring a neat and efficient setup.
The flat pan-post standoff is natural color and requires two 1/4" (6.35 mm) (M6) screws. It measures 5.60" (142.2 mm) long, 1.62" (41.3 mm) high, and 0.19" (4.8 mm) wide. It is used with Tak-ty hook and loop cable ties and is made of flame-retardant ny lon 6.6, which increases mechanical strength, heat and wear resistance, and stiffness. It comes in packages of 5.
Panduit Pan-Post Post Standoff, Flat, Threaded Mount, 5.6 in Base Length, 0.19 in Base Width, Nylon 6.6, Natural
Panduit - PPF2SV-S25-V69 - Features
- Standard EIA hole spacing allows product to be mounted with user supplied screws up to 1/4 in (M6) Dia
- Organize cables in standard cabinets and racks
- Use where space is limited
- V-0 flammability
- For use with M, I, S, LH, H, HLM and HLS cable ties
- Organize cable vertically or horizontally in enclosures or on equipment racks
- Use where depth is critical or space is limited
- Mounting slots accept screws up to 1/4" in diameter
Specifications
Specifications
Panduit - PPF2SV-S25-V69 - Specifications
| Brand Name | Panduit |
|---|---|
| Manufacturer Part Number | PPF2SV-S25-V69 |
| UNSPSC Code | 31000000 |
| Material Description | Nylon 6.6 (Flame-Retardant) |
| Product Type | Flat Post Standoff |
| Application | Flat Pan-Post Standoffs Allows to Organize Cables in Standard Cabinets and Racks |
| Color | Ivory |
| Flammability Rating | UL94V-0 |
| Environment | Indoor |
| Material | Nylon 6.6 |
| Maximum Operating Temperature (°C) | 100 |
| Maximum Operating Temperature (°F) | 212 |
| Minimum Operating Temperature (°C) | -60 |
| Minimum Operating Temperature (°F) | -76 |
| Minimum Loop Tensile Strength (N) | 778 |
| Minimum Loop Tensile Strength (lb) | 175 |
| Mount Method | Screw-On |
| Mounting Hole Thread Size | M6 |
| Overall Length (In.) | 5.6 |
| Overall Length (mm) | 142.2 |
| Overall Width (In.) | 0.19 |
| Overall Width (mm) | 4.8 |
| Overall Height (In.) | 1.62 |
| Overall Height (mm) | 41.3 |
| UPC | 07498382245 |
Panduit - PPF2SV-S25-V69 - Environmental Information
| RoHS Status | ROHS3 Compliant |
|---|---|
| Moisture Sensitivity Level (MSL) | Not Applicable |
| ECCN | EAR99 |
| HTSUS | 3926.90.9985 |
Panduit - PPF2SV-S25-V69 - Videos
| Panduit PPF2SV-S25-V69 Video 1 | Click to View |
|---|
