Brand: Panduit
|
SKU:
10332016
Panduit PQSF2PXA1MBL | 100G QSFP28 DAC Assembly, 30AWG, 1M, Black
Regular price
$473.06
Unit price
Shipping calculated at checkout.
-
Low prices.
Price match guarantee
-
In-House Experts.
We know our products
-
Easy Returns.
Quick & Hassle Free
-
Superior Selection.
Extensive product catalog
Panduit PQSF2PXA1MBL | 100G QSFP28 DAC Assembly, 30AWG, 1M, Black
Regular price
$473.06
Unit price
Description
Description

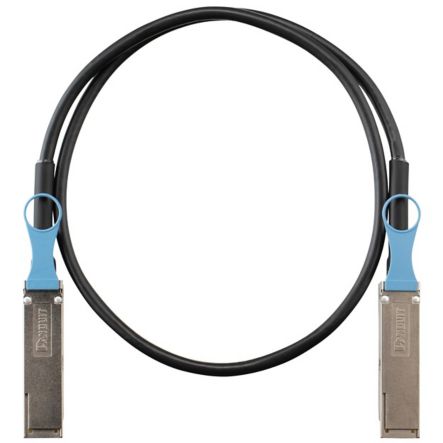

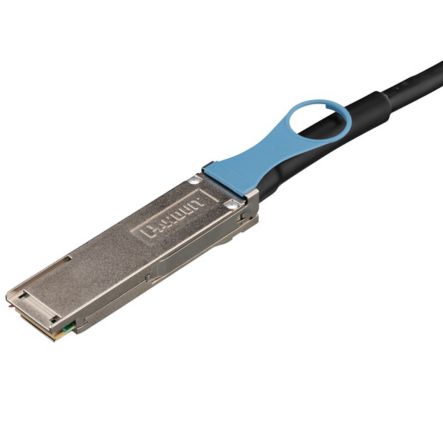

Panduit PQSF2PXA1MBL | 100G QSFP28 DAC Assembly, 30AWG, 1M, Black
This direct attach passive copper cable assembly features 100G factory-terminated QSFP28 passive modular connectors on each end. The high-speed, 2-pair assembly has twinaxial cable, is black in cable color, 30AWG and 1 meter in length.
Panduit PQSF2PXA1MBL | Qsfp28 100G Direct Attach Copper, Black, 1 Meter
Panduit - PQSF2PXA1MBL - Features
- High speed twinaxial cable assembly with QSFP28 100Gbps hot pluggable modular connectors on each end, Black, 1 meter
- Technical Information: Compliant to SFF-8431, SFF-8432 and SFF-8472, IEC flame compliance: IEC 60332, 60333, 60324, CE and RoHS Complaint
Specifications
Specifications
Panduit - PQSF2PXA1MBL - Product Categories
- Copper Systems
- Direct Attach Cable Assemblies
Panduit - PQSF2PXA1MBL - Specifications
| Brand Name | Panduit |
|---|---|
| Manufacturer Part Number | PQSF2PXA1MBL |
| Item Description | 100G QSFP28 DAC Assembly, 30AWG, 1M, Black |
| Jacket Material | PVC |
| Conductor Gauge (AWG) | 30 |
| Connector 1 Type | QSFP28 |
| Connector 2 Type | QSFP28 |
| Color | Black |
| Overall Length (ft.) | 3.28 |
| Overall Length (m) | 1 |
| Nominal Diameter (In.) | 0.24 |
| Nominal Diameter (mm) | 6.1 |
| Bend Radius (In.) | 1.2 |
| Bend Radius (mm) | 30.5 |
| Number of Connector 1 Ports | 1 |
| Number of Connector 2 Ports | 1 |
| Maximum Operating Temperature (°C) | 80 |
| Maximum Operating Temperature (°F) | 176 |
| Minimum Operating Temperature (°C) | -25 |
| Minimum Operating Temperature (°F) | -13 |
| Resistance Properties | Flame-Resistant |
| Standards Met | Compliant to SFF-8431, SFF-8432 and SFF-8472, IEC flame compliance: IEC 60332, 60333, 60324, CE and RoHS Compliant |
| Part Features | 100% performance tested, robust construction, low latency performance, passive low power assembly, low profile, small diameter cable design, built-in strain relief, variety of lengths. |
Panduit - PQSF2PXA1MBL - Package Information
| UPC | 61305676706 |
|---|---|
| Standard Package Quantity | 1 |
| Standard Package Volume (cf) | 0.0662 |
| Standard Ctn. Quantity | 10 |
| Standard Ctn. Volume (cf) | 0.6620 |
