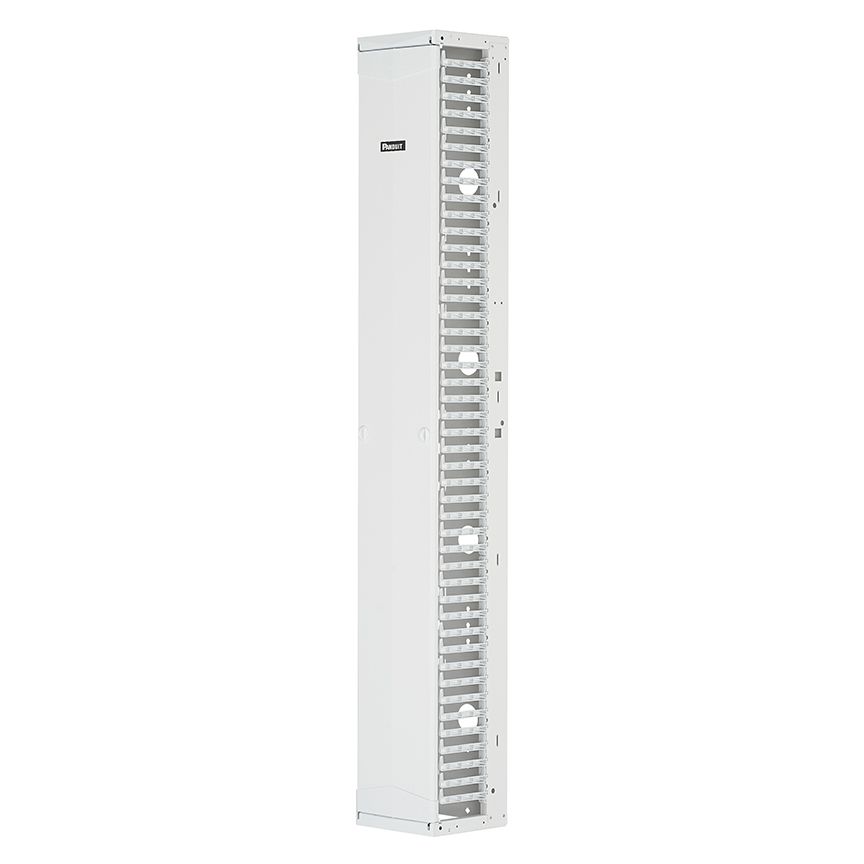

Panduit PR2VFD12WH | Single Sided Manager | UPC - 61305639624
Description
Description
The Panduit PatchRunner 2 vertical cable manager combines high density capability and versatility, freeing up valuable floor space. The fully pre-assembled manager lowers overall costs and sets the standard for the entire cable management industry. Single sided, steel, 45 RU, white, 1 pc, includes (1) full length metal, dual hinging, push-to-close door.
Panduit PatchRunner 2 Cable Manager, Single Sided Vertical, Series: PR2V, 12 in Width, 12 in D, 7 ft Height, 45RU Capacity, For Use With: 19 or 23 in EIA Standard Rack, Steel, White
Features + Benefits
- Large finger openings accommodate up to 48 category 6A cables
- Push-to-close door design allows for easy operation
- Integral cable retainer on ends of each finger contain cables within each rack unit
- No assembly required, faster installation while reducing labor costs
Panduit PR2VFD12WH Key Specs
| Product Type | Single Sided Manager |
| Body Material | Steel |
| Orientation | Vertical |
| Cover Material | Steel |
| Finger Material | ABS |
| Sub Brand | PatchRunner 2 |
| Overall Height (In.) | 83.88 |
| Overall Height (mm) | 2130.4 |
| Overall Width (In.) | 12 |
| Overall Width (mm) | 304.8 |
| Overall Depth (In.) | 12 |
| Overall Depth (mm) | 304.5 |
| Number of Rack Units | 45 |
| Environment | Indoor |
| Color | White |
| Standards Met | RoHS |
| Includes | Manager, one door, hardware kit |
Panduit PR2VFD12WH Data Sheets
| Videos | Patchrunner 2 Installation | Download and View |
| Videos | PatchRunner 2 Vertical Cable Manager | Download and View |
| Part Drawings | Patchrunner 2 Vertical Cable Managers, Front Fingers Only And Door | Download and View |
| Flyers | PatchRunner Family: PR2V & PE2V | Download and View |
| Application Guides | PatchRunner 2 Enhanced Vertical Cable Manager with Vertical Patching | Download and View |
| Press Releases | PatchRunner 2 Enhanced Vertical Cable Manager with Vertical Patching | Download and View |
| Selection Guides | Vertical Cable Manager | Download and View |
