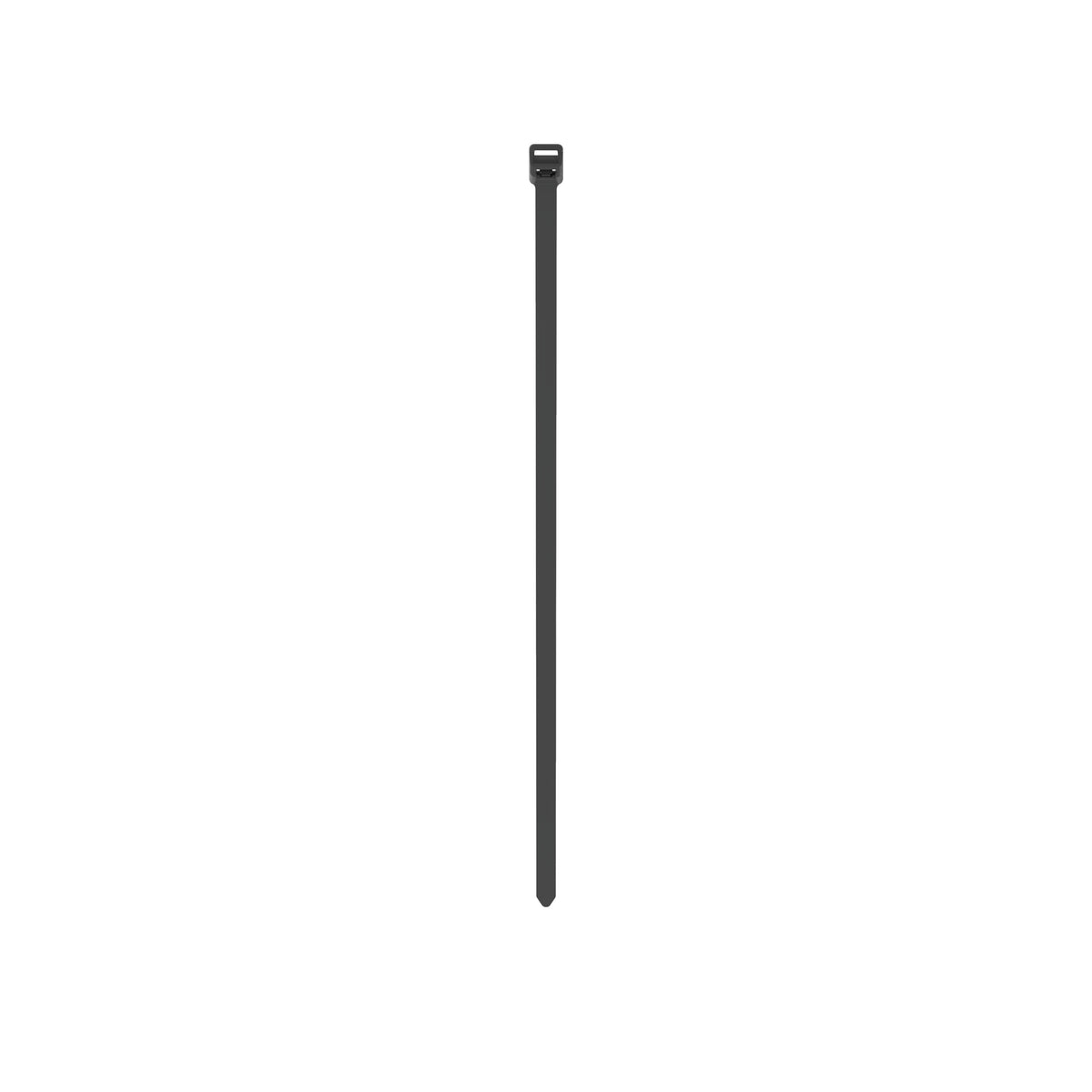

Panduit PRT12EH-C0 | Pan-Ty® Releasable Lashing Tie
-
Low prices.
Price match guarantee
-
In-House Experts.
We know our products
-
Easy Returns.
Quick & Hassle Free
-
Superior Selection.
Extensive product catalog
Panduit PRT12EH-C0 | Pan-Ty® Releasable Lashing Tie
Description
Description
Panduit Pan-Ty Lashing Tie, Extra Heavy, Series: PRT, 40.1 in Length, 1/2 in Width, 0.09 in Thickness, 12 in Diameter Bundle, Lock Mechanism: Releasable, 250 lb Tensile Strength, -76 to 185 deg F, Nylon 6.6, Black
For cable ties that can be reused and adjusted, choose our releasable lashing cable tie. This tie has a release tab that lets you easily loosen or remove them whenever you need to make changes.
Panduit PRT12EH-C0 Releasable Lashing Cable Ties has a release tab that permits easy release where changes are anticipated during development, production or servicing in the field. Ideal for heavy duty applications. Extra-Heavy cross section, 40.1 (101 9mm) length. For Indoor and outdoor use, made of Weather Resistant Nylon 6.6 with high resistance to ultraviolet light, are black in color and come packages of 100.
Panduit - PRT12EH-C0 - Features
- Release tab permits easy release and re-use where changes are anticipated during development, production or servicing in the field
- 1-piece construction for consistent performance and reliability
- Curved tip is easy to pickup from flat surfaces and allows faster initial threading to speed installation
- For chemical resistance where high loop tensile strength is not required
- Greater resistance to damage caused by ultraviolet light
- UV-resistant
Specifications
Specifications
Panduit - PRT12EH-C0 - Specifications
| Type | Cables Ties And Accessories |
|---|---|
| UNSPSC Code | 39121703 |
| Technical Information | UL 62275 Compliant (Type 1, 11), UL Recognized (File #E56854), CSA Certified, RoHS and CE Compliant |
| Material Description | Nylon 6.6 (UV-Resistant, Weather-Resistant) |
| Product Type | Premium Cable Tie |
| Color | Black |
| Environment | Indoor/Outdoor |
| Material | Nylon 6.6 |
| Resistance Properties | UV-Resistant, Weather-Resistant |
| Overall Length (In.) | 40.1 |
| Overall Length (mm) | 1 |
| Body Width (In.) | 0.5 |
| Body Width (mm) | 12.7 |
| Maximum Bundle Diameter (In.) | 12 |
| Maximum Bundle Diameter (mm) | 304.8 |
| Minimum Bundle Diameter (In.) | 2.5 |
| Minimum Bundle Diameter (mm) | 63.5 |
| Minimum Loop Tensile Strength (N) | 1112 |
| Minimum Loop Tensile Strength (lb) | 250 |
| Maximum Operating Temperature (°C) | 85 |
| Maximum Operating Temperature (°F) | 185 |
| Minimum Operating Temperature (°C) | -60 |
| Minimum Operating Temperature (°F) | -76 |
| Minimum Installation Temperature (°C) | -20 |
| UPC | 07498356884 |
Panduit - PRT12EH-C0 - Package Information
| UPC | 07498356884 |
|---|---|
| Standard Packaging Quantity | 100 |
| Standard Packaging Volume (cf) | 0.5667 |
| Standard Ctn. Quantity | 500 |
| Standard Ctn. Volume (cf) | 2.8336 |
Panduit - PRT12EH-C0 - Videos
| Panduit PRT12EH-C0 Videos | Click to View |
|---|
