Brand: Panduit
|
SKU:
PRT3S-M

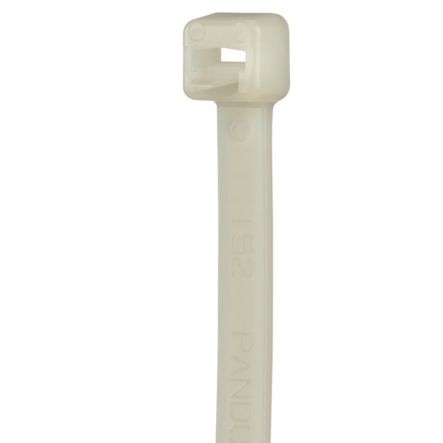

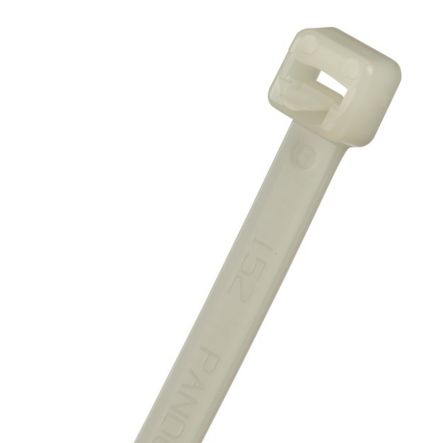

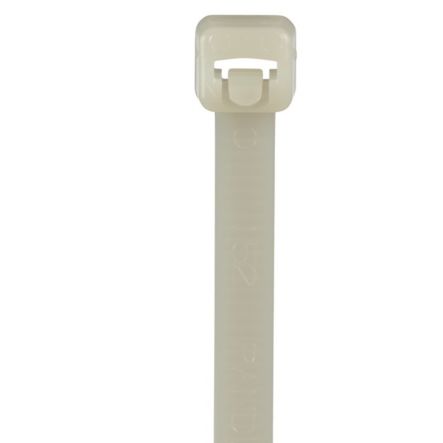

Panduit PRT3S-M | Pan-Ty Prt3S-M Releasable Cable Tie, Pa6.6, 11.5"L, 50Lb, Pk1000
Regular price
$481.89
Unit price
Shipping calculated at checkout.
-
Low prices.
Price match guarantee
-
In-House Experts.
We know our products
-
Easy Returns.
Quick & Hassle Free
-
Superior Selection.
Extensive product catalog
Panduit PRT3S-M | Pan-Ty Prt3S-M Releasable Cable Tie, Pa6.6, 11.5&...
Regular price
$481.89
Unit price
Description
Description
Panduit PRT3S-M | Pan-Ty Prt3S-M Releasable Cable Tie, Pa6.6, 11.5"L, 50Lb, Pk1000
Panduit PRT3S-M Releasable Cable Ties have a release tab that permits easy release where changes are anticipated during development, production or servicing in the field. Standard cross section, 11.5" (292mm) length. For Indoor use, made of Nylon 6.6, are natural in color and come in packages of 1000.
Panduit - PRT3S-M - Features
- Cable Tie, Releasable, 11.5";, Standard cross section
- For indoor use
- Extended release tab permits easy release and re-use where changes are anticipated during development, production or servicing in the field
- To release, grasp the head of the cable tie, deflect release tab, and pull the cable tie away from the bundle
- One-piece construction for consistent performance and reliability
- Curved tip is easy to pick up from flat surfaces and allows faster initial threading to speed installation (Light-Heavy cross section ties have a straight tip)
Specifications
Specifications
Panduit - PRT3S-M - Product Categories
- Wire Routing, Management & Protection
- Cable Ties & Wire Ties
Panduit - PRT3S-M - Specifications
| Brand Name | Panduit |
|---|---|
| Manufacturer Part Number | PRT3S-M |
| Item Description | Pan-Ty Prt3S-M Releasable Cable Tie, Pa6.6, 11.5"L, 50Lb, Pk1000 |
| Product Type | Premium Cable Tie |
| Color | Natural |
| Environment | Indoor |
| Material | Nylon 6.6 |
| Overall Length (In.) | 11.5 |
| Overall Length (mm) | 292 |
| Body Width (In.) | 0.19 |
| Body Width (mm) | 4.8 |
| Maximum Bundle Diameter (In.) | 3 |
| Maximum Bundle Diameter (mm) | 76 |
| Minimum Bundle Diameter (In.) | 0.06 |
| Minimum Bundle Diameter (mm) | 1.5 |
| Minimum Loop Tensile Strength (N) | 222 |
| Minimum Loop Tensile Strength (lb) | 50 |
| Maximum Operating Temperature (°C) | 85 |
| Maximum Operating Temperature (°F) | 185 |
| Minimum Operating Temperature (°C) | -60 |
| Minimum Operating Temperature (°F) | -76 |
| Minimum Installation Temperature (°C) | -20 |
| Minimum Installation Temperature (°F) | -4 |
| Standards Met | UL 62275 Compliant (Type 2S, 21S), UL Listed (File #E56854), UL Recognized (File #E56854), CE, RoHS Compliant |
| For Use With | Hand Install Only |
| Part Features | Release tab permits easy release and re-use where changes are anticipated. |
Panduit - PRT3S-M - Package Information
| UPC | 07498354887 |
|---|---|
| Standard Package Quantity | 1000 |
| Standard Package Volume (cf) | 0.3133 |
| Standard Ctn. Quantity | 10000 |
| Standard Ctn. Volume (cf) | 3.1332 |
Panduit - PRT3S-M - Videos
| Video 1 | Click to View |
|---|
