Brand: Panduit
|
SKU:
342405
Panduit PRT4S-C0 | PRT4S-C0 Premium Cable Tie
Regular price
$104.43
Unit price
Shipping calculated at checkout.
-
Low prices.
Price match guarantee
-
In-House Experts.
We know our products
-
Easy Returns.
Quick & Hassle Free
-
Superior Selection.
Extensive product catalog
Panduit PRT4S-C0 | PRT4S-C0 Premium Cable Tie
Regular price
$104.43
Unit price
Description
Description

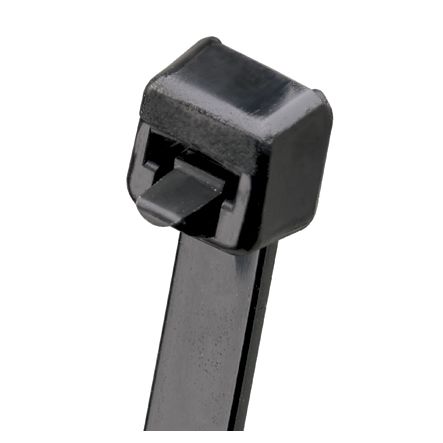

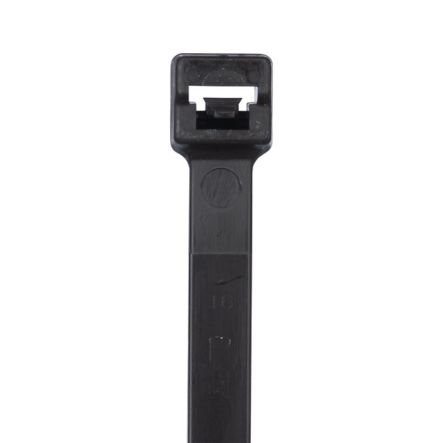

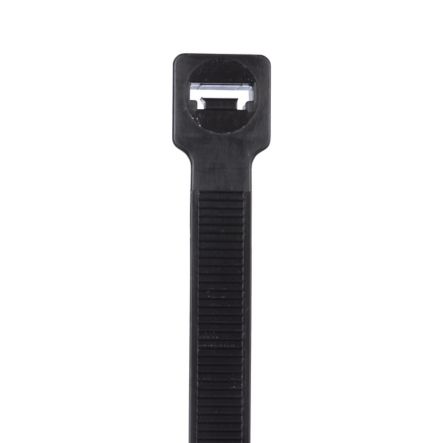

Panduit PRT4S-C0 | PRT4S-C0 Premium Cable Tie
Pan-Ty releasable tie,, standard cross section, 14.5 (368mm) length, weather resistant nylon 6.6, black, standard package.
Panduit - PRT4S-C0 - Features
- Cable Tie, Releasable, 14.5";, Standard cross section
- Greater resistance to damage caused by ultraviolet light - indoor or outdoor use
- Extended release tab permits easy release and re-use where changes are anticipated during development, production or servicing in the field
- One-piece construction for consistent performance and reliability
- Curved tip is easy to pick up from flat surfaces and allows faster initial threading to speed installation (Light-Heavy cross section ties have a straight tip)
- Specification Description
- Releasable Cable Tie
- Material: Weather-resistant Nylon 6.6
- Color: Black
- Cross Section: Standard
- Locking Style: Releasable
- Loop Tensile Strength: 50 lb (222 N) Minimum
- Continuous Use Temperature Range: -76 to 185 deg F (-60 to 85 deg C)
- Tool: Hand Install Only
- Bundle Diameter: 0.06 - 4 Inch (1.5 - 102 mm)
- Dimension: 14.5 Inch Length x 0.190 Inch Width x 0.052 Inch Thickness (368 mm x 4.8 mm x 1.3 mm)
Specifications
Specifications
Panduit - PRT4S-C0 - Product Categories
- Wire Routing, Management & Protection
- Cable Ties & Wire Ties
Panduit - PRT4S-C0 - Specifications
| Brand Name | Panduit |
|---|---|
| Manufacturer Part Number | PRT4S-C0 |
| Item Description | PRT4S-C0 Premium Cable Tie |
| Product Type | Premium Cable Tie |
| Color | Black |
| Environment | Indoor/Outdoor |
| Material | Weather Resistant Nylon 6.6 |
| Resistance Properties | UV Resistant |
| Overall Length (In.) | 14.5 |
| Overall Length (mm) | 368 |
| Body Width (In.) | 0.19 |
| Body Width (mm) | 4.8 |
| Maximum Bundle Diameter (In.) | 4 |
| Maximum Bundle Diameter (mm) | 102 |
| Minimum Bundle Diameter (In.) | 0.06 |
| Minimum Bundle Diameter (mm) | 1.5 |
| Minimum Loop Tensile Strength (N) | 222 |
| Minimum Loop Tensile Strength (lb) | 50 |
| Maximum Operating Temperature (°C) | 85 |
| Maximum Operating Temperature (°F) | 185 |
| Minimum Operating Temperature (°C) | -60 |
| Minimum Operating Temperature (°F) | -76 |
| Standards Met | Rated for AH-2 Plenum, UL Listed (File #E56854), UL Recognized (File #E56854), CE, RoHS Compliant |
| For Use With | Cables |
| Application | General |
| Part Features | Release tab permits easy release and re-use where changes are anticipated. |
Panduit - PRT4S-C0 - Package Information
| UPC | 07498354894 |
|---|---|
| Standard Package Quantity | 100 |
| Standard Package Volume (cf) | 0.0556 |
| Standard. Ctn. Quantity | 1000 |
| Standard. Ctn. Volume (cf) | 0.5563 |
Panduit - PRT4S-C0 - Videos
| Video 1 | Click to View |
|---|
