Panduit PRT5EH-C0 | Pan-Ty PRT5EH-C0 Releasable Cable Tie, Black, UV PA6.6, 20.1"L, 250lb, PK100
-
Low prices.
Price match guarantee
-
In-House Experts.
We know our products
-
Easy Returns.
Quick & Hassle Free
-
Superior Selection.
Extensive product catalog
Panduit PRT5EH-C0 | Pan-Ty PRT5EH-C0 Releasable Cable Tie, Black, U...
Description
Description

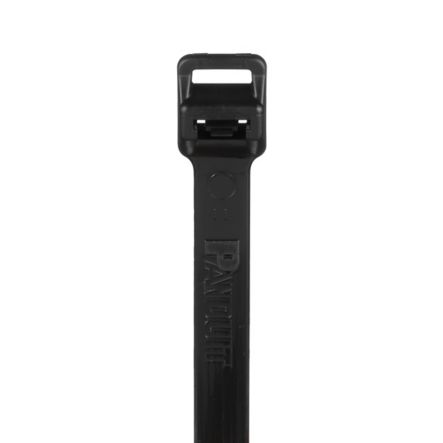

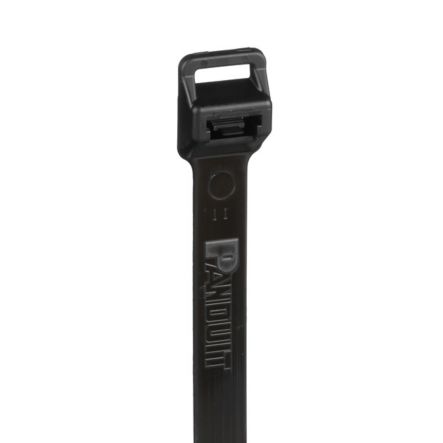

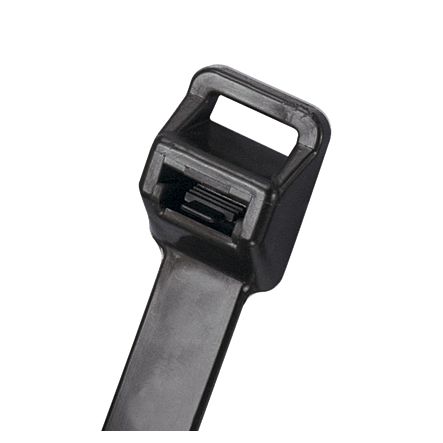

Panduit PRT5EH-C0 Releasable Lashing Cable Ties have a release tab that permits easy release where changes are anticipated during development, production or servicing in the field. Ideal for heavy duty applications. Extra-Heavy cross section, 20.1" (511mm) length. For Indoor or outdoor use, made of Weather Resistant Nylon 6.6 with high resistance to ultraviolet light, are black in color and come in packages of 100.
Panduit PRT5EH-C0 - CABLE TIE - CABLE TIE, RELEASABLE, 20.1"L
Specifications
Specifications
Panduit - PRT5EH-C0 - Product Categories
- Wire Routing, Management & Protection
- Cable Ties & Wire Ties
Panduit - PRT5EH-C0 - Specifications
| Brand Name | Panduit |
|---|---|
| Manufacturer Part Number | PRT5EH-C0 |
| Item Description | Pan-Ty PRT5EH-C0 Releasable Cable Tie, Black, UV PA6.6, 20.1"L, 250lb, PK100 |
| Product Type | Premium Cable Tie |
| Color | Black |
| Environment | Indoor/Outdoor |
| Material | Weather Resistant Nylon 6.6 |
| Resistance Properties | UV Resistant |
| Overall Length (In.) | 20.1 |
| Overall Length (mm) | 511 |
| Body Width (In.) | 0.5 |
| Body Width (mm) | 12.7 |
| Maximum Bundle Diameter (In.) | 5 |
| Maximum Bundle Diameter (mm) | 127 |
| Minimum Bundle Diameter (In.) | 0.5 |
| Minimum Bundle Diameter (mm) | 12.7 |
| Minimum Loop Tensile Strength (N) | 1112 |
| Minimum Loop Tensile Strength (lb) | 250 |
| Maximum Operating Temperature (°C) | 85 |
| Maximum Operating Temperature (°F) | 185 |
| Minimum Operating Temperature (°C) | -60 |
| Minimum Operating Temperature (°F) | -76 |
| Minimum Installation Temperature (°C) | -20 |
| Minimum Installation Temperature (°F) | -4 |
| Standards Met | RoHS, CE Compliant, UL 62275 Compliant (Type 1, 11), UL Recognized (File #E56854), CSA Certified |
| For Use With | Hand Install Only |
| Part Features | Release tab permits easy release and re-use where changes are anticipated. Used for heavy duty applications. |
Panduit - PRT5EH-C0 - Package Information
| UPC | 07498354201 |
|---|---|
| Standard Package Quantity | 100 |
| Standard Package Volume (cf) | 0.2163 |
| Standard Ctn. Quantity | 1000 |
| Standard Ctn. Volume (cf) | 2.1626 |
Panduit - PRT5EH-C0 - Videos
| Video 1 | Click to View |
|---|
