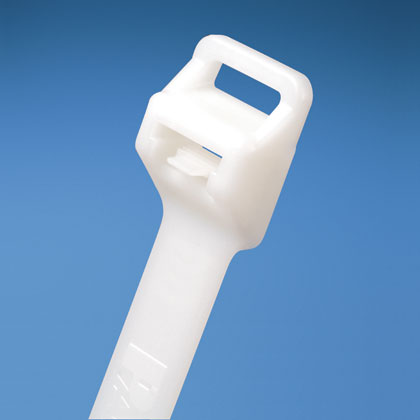

Panduit PRT6EH-C | Pan-Ty® Releasable Lashing Tie
Description
Description
Panduit Pan-Ty Lashing Cable Tie, Extra Heavy, Series: PRT, 22.2 in Length, 1/2 in Width, 0.08 in Thickness, 6 in Bundle Dia, Releasable, 250 lb Tensile, -76 to 185 deg F, Nylon 6.6, Natural
For cable ties that can be reused and adjusted, choose our releasable lashing cable tie. This tie has a release tab that lets you easily loosen or remove them whenever you need to make changes.
Panduit PRT6EH-C Releasable Lashing Cable Ties have a release tab that permits easy release where changes are anticipated during development, production or servicing in the field. Ideal for heavy duty applications. Extra-Heavy cross section, 22.2 (564m m) length. For Indoor use, made of Nylon 6.6, are natural in color and come in packages of 100.
Panduit - PRT6EH-C - Features
- Release tab permits easy release and re-use where changes are anticipated during development, production or servicing in the field
- 1-piece construction for consistent performance and reliability
- Curved tip is easy to pickup from flat surfaces and allows faster initial threading to speed installation
- For chemical resistance where high loop tensile strength is not required
- Greater resistance to damage caused by ultraviolet light
Specifications
Specifications
Panduit - PRT6EH-C - Specifications
| Type | Cables Ties And Accessories |
|---|---|
| UNSPSC Code | 39121703 |
| Technical Information | UL 62275 Compliant (Type 2, 21), CE C, RoHS compliant |
| Material Description | Nylon 6.6 () |
| Product Type | Premium Cable Tie |
| Color | Natural |
| Environment | Indoor |
| Material | Nylon 6.6 |
| Overall Length (In.) | 22.2 |
| Overall Length (mm) | 564 |
| Body Width (In.) | 0.5 |
| Body Width (mm) | 12.7 |
| Maximum Bundle Diameter (In.) | 6 |
| Maximum Bundle Diameter (mm) | 152.4 |
| Minimum Bundle Diameter (In.) | 0.5 |
| Minimum Bundle Diameter (mm) | 12.7 |
| Minimum Loop Tensile Strength (N) | 1112 |
| Minimum Loop Tensile Strength (lb) | 250 |
| Maximum Operating Temperature (°C) | 85 |
| Maximum Operating Temperature (°F) | 185 |
| Minimum Operating Temperature (°C) | -60 |
| Minimum Operating Temperature (°F) | -76 |
| Minimum Installation Temperature (°C) | -20 |
| Minimum Installation Temperature (°F) | -4 |
| UPC | 07498354208 |
Panduit - PRT6EH-C - Package Information
| UPC | 07498354208 |
|---|---|
| Standard Packaging Quantity | 100 |
| Standard Packaging Volume (cf) | 0.2834 |
| Standard Ctn. Quantity | 1000 |
| Standard Ctn. Volume (cf) | 2.8336 |
Panduit - PRT6EH-C - Videos
| Panduit PRT6EH-C Videos | Click to View |
|---|
Documents and Downloads
Documents and Downloads
