Brand: Panduit
|
SKU:
264593

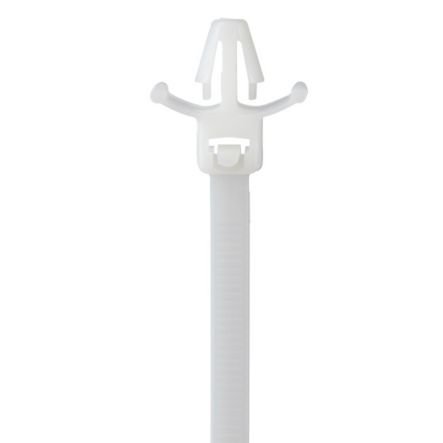

Panduit PRWP1S-D | Pan-Ty PRWP1S-D Releasable Wing Push Mount Tie, PA6.6, 5.2"L, 50lb, PK500
Regular price
$222.51
Unit price
Shipping calculated at checkout.
-
Low prices.
Price match guarantee
-
In-House Experts.
We know our products
-
Easy Returns.
Quick & Hassle Free
-
Superior Selection.
Extensive product catalog
Panduit PRWP1S-D | Pan-Ty PRWP1S-D Releasable Wing Push Mount Tie, ...
Regular price
$222.51
Unit price
Description
Description
Panduit PRWP1S-D | Pan-Ty PRWP1S-D Releasable Wing Push Mount Tie, PA6.6, 5.2"L, 50lb, PK500
Pan-Ty releasable wing push mount tie, standard cross section, 5.2 (132mm) length, nylon 6.6, natural, bulk package.
Panduit - PRWP1S-D - Features
- For indoor use
- Cable tie, mount, and fastener in a single part
- Used to attach bundles to another surface such as a flat panel
- Anchor is easily pressed into a pre-formed hole and locks in place
- Wings provide constant tension for a stable, secure andattle-free installation
- Extended release tab permits easy release and re-use where changes are anticipated during development, production or servicing in the field
- Curved tip is easy to pick up from flat surfaces and allows faster initial threading to speed installation
Specifications
Specifications
Panduit - PRWP1S-D - Product Categories
- Wire Routing, Management & Protection
- Cable Ties & Wire Ties
Panduit - PRWP1S-D - Specifications
| Brand Name | Panduit |
|---|---|
| Manufacturer Part Number | PRWP1S-D |
| Item Description | Pan-Ty PRWP1S-D Releasable Wing Push Mount Tie, PA6.6, 5.2"L, 50lb, PK500 |
| Product Type | Premium Cable Tie |
| Color | Natural |
| Environment | Indoor |
| Material | Nylon 6.6 |
| Overall Length (In.) | 5.2 |
| Overall Length (mm) | 132.1 |
| Body Width (In.) | 0.19 |
| Body Width (mm) | 4.8 |
| Maximum Bundle Diameter (In.) | 1.75 |
| Maximum Bundle Diameter (mm) | 44.5 |
| Minimum Bundle Diameter (In.) | 0.06 |
| Minimum Bundle Diameter (mm) | 1.5 |
| Minimum Loop Tensile Strength (N) | 222 |
| Minimum Loop Tensile Strength (lb) | 50 |
| Maximum Operating Temperature (°C) | 85 |
| Maximum Operating Temperature (°F) | 185 |
| Minimum Operating Temperature (°C) | -60 |
| Minimum Operating Temperature (°F) | -76 |
| Minimum Installation Temperature (°C) | -20 |
| Minimum Installation Temperature (°F) | -4 |
| Standards Met | UL 62275 Compliant (Type 1, 11), UL Recognized (File #E56854), RoHS, CE Complaint |
| For Use With | Cables |
| Application | General |
Panduit - PRWP1S-D - Package Information
| UPC | 07498354316 |
|---|---|
| Standard Package Quantity | 500 |
| Standard Package Volume (cf) | 0.2109 |
| Standard. Ctn. Quantity | 5000 |
| Standard. Ctn. Volume (cf) | 2.1087 |
Panduit - PRWP1S-D - Videos
| Video 1 | Click to View |
|---|
