Panduit PRWP1SB-D | Premium Cable Tie
Regular price
$233.95
Unit price
Brand: Panduit
|
SKU:
670900
Regular price
$233.95
Unit price
Description
Description

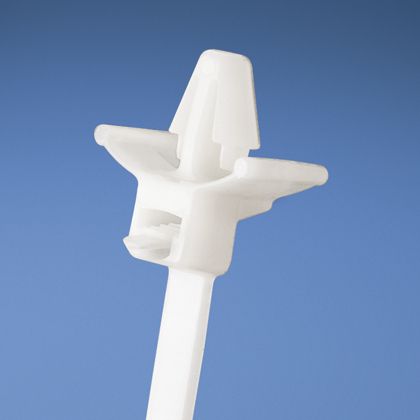

Panduit PRWP1SB-D | Premium Cable Tie
Secure and reuse cable ties with a simple push. Our releasable wing push mount tie are weather-resistant, rattle-free, and sleek. Perfect for any project or environment.
Pan-Ty releasable wing push mount tie, standard cross section, 5.2 (132mm) length, nylon 6.6, natural.
Panduit Pan-Ty Cable Tie, Standard, Series: PRWP, 5.2 in Length, 0.19 in Width, 0.05 in Thickness, 1 in Diameter Bundle, Lock Mechanism: Releasable, 50 lb Tensile Strength, -76 to 185 deg F, Nylon 6.6, Natural
Panduit - PRWP1SB-D - Features
- Weather-resistant material has greater resistance to damage caused by UV light
- Cable tie, mount and fastener in a single part
- Used to attach bundles to another surface such as a flat panel
- Anchor is easily pressed into a pre-formed hole and locks in place
- Wings provide constant tension for a stable, secure and rattle-free installation
- Extended release tab permits easy release and reuse where changes are anticipated during development, production or servicing in the field
- Releasable wing push
Specifications
Specifications
Panduit - PRWP1SB-D - Specifications
| Brand Name | Panduit |
|---|---|
| Manufacturer Part Number | PRWP1SB-D |
| Type | Cables Ties And Accessories |
| UNSPSC Code | 39121703 |
| Product Type | Premium Cable Tie |
| Color | Natural |
| Environment | Indoor |
| Material | Nylon 6.6 |
| Overall Length (In.) | 5.2 |
| Overall Length (mm) | 132 |
| Body Width (In.) | 0.19 |
| Body Width (mm) | 4.8 |
| Maximum Bundle Diameter (In.) | 1.75 |
| Maximum Bundle Diameter (mm) | 44.5 |
| Minimum Bundle Diameter (In.) | 0.06 |
| Minimum Bundle Diameter (mm) | 1.5 |
| Minimum Loop Tensile Strength (N) | 222 |
| Minimum Loop Tensile Strength (lb) | 50 |
| Maximum Operating Temperature (°C) | 85 |
| Maximum Operating Temperature (°F) | 185 |
| Minimum Operating Temperature (°C) | -60 |
| Minimum Operating Temperature (°F) | -76 |
| Minimum Installation Temperature (°C) | -20 |
| Minimum Installation Temperature (°F) | -4 |
| Standards Met | UL 62275 Compliant (Type 1, 11), UL Recognized (File #E56854), RoHS, CE Complaint |
| UPC | 07498354339 |
Panduit - PRWP1SB-D - Environmental Information
| RoHS Status | ROHS3 Compliant |
|---|---|
| Moisture Sensitivity Level (MSL) | Not Applicable |
| ECCN | EAR99 |
| HTSUS | 3926.90.9985 |
