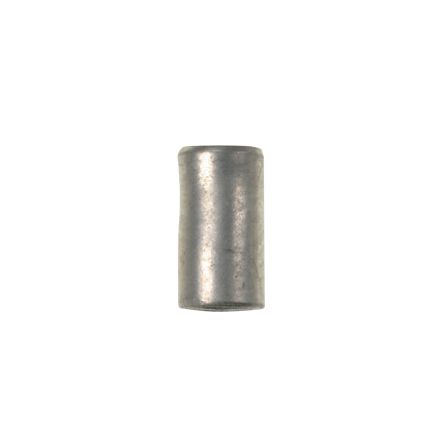

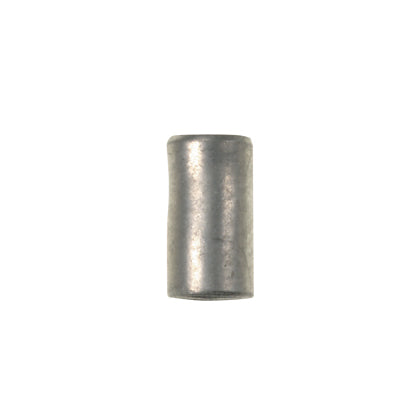

Panduit PS12-D | Parallel Splice | UPC - 07498383405
Regular price
$115.03
Unit price
Brand: Panduit
|
SKU:
703246
Regular price
$115.03
Unit price
Description
Description
Panduit Pan-Term Parallel Splice, Metallic Non-Insulated Standard, Series: PS Series, Solid/Stranded Copper Conductor, 14 to 12 AWG Conductor, 0.22 in OD Barrel, 0.38 in Length, 7/16 in Wire Strip Length, 2000 VAC, 302 deg F, Brass, TiN Coated
Features + Benefits
- Designed to splice two solid or stranded wires together to repair or lengthen wires
- Parallel design results in only one crimp required to complete splice
- Seamless tubular barrel provides a consistent high performance quality crimp
- Non-insulated barrel can be used to provide an economical termination when insulation is not required
- Standard barrel configuration
Panduit PS12-D | Parallel Splice | UPC - 07498383405 Key Specs
| Product Type | Parallel Splice |
| Maximum Copper Conductor Size (AWG SOL) | #12 |
| Maximum Copper Conductor Size (AWG STR) | #12 |
| Maximum Copper Conductor Size (AWG) | #12 |
| Minimum Copper Conductor Size (AWG SOL) | #14 |
| Minimum Copper Conductor Size (AWG STR) | #14 |
| Minimum Copper Conductor Size (AWG) | #14 |
| Sub Brand | Pan-Term |
| Copper Conductor Size (AWG) | #12 |
| Barrel Type | Standard |
| Maximum Voltage (V) | 2 |
| Maximum Voltage (kV) | 2 |
| Base Material | Brass |
| Insulation Material | Non-Insulated |
Panduit PS12-D | Parallel Splice | UPC - 07498383405 Data Sheets
| Catalog Cut Sheets | Parallel Splice, Non-Insulated Catalog Cut Sheet | Download and View |
| Videos | Success Depends on the Crimp Training Video 16:9 BS10-D | Download and View |
| Part Drawings | Non Insulated Parallel Splice Part Drawing A41339 | Download and View |
Panduit PS12-D | Parallel Splice | UPC - 07498383405 Environmental Information
| Panduit's RoHS Statement | Download and View |
