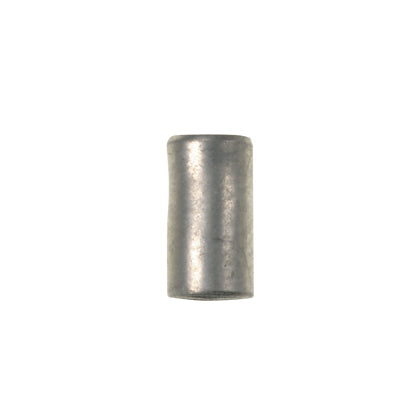

Panduit PS16-C | Pan-Term Parallel Splice
Regular price
$54.18
Unit price
Brand: Panduit
|
SKU:
10044864
Regular price
$54.18
Unit price
Description
Description
Panduit PS16-C | Pan-Term Parallel Splice
Panduit Pan-Term Parallel Splice, Metallic Non-Insulated Standard, Series: PS Series, Solid/Stranded Copper Conductor, 20 to 16 AWG Conductor, 0.16 in OD Barrel, 0.29 in Length, 5/16 in Wire Strip Length, 2000 VAC, 150 deg C, Brass, TiN Coated
Panduit - PS16-C - Features
- Designed to splice two solid or stranded wires together to repair or lengthen wires
- Parallel design results in only one crimp required to complete splice
- Seamless tubular barrel provides a consistent high performance quality crimp
- Non-insulated barrel can be used to provide an economical termination when insulation is not required
- Standard barrel configuration
Specifications
Specifications
Panduit - PS16-C - Specifications
| Product Type | Parallel Splice |
|---|---|
| Base Material | Brass |
| Barrel Type | Standard |
| Finish/Coating | Tin-Plated |
| Copper Conductor Size (AWG) | 20-16 |
| Maximum Copper Conductor Size (AWG SOL) | 16 |
| Maximum Copper Conductor Size (AWG STR) | 16 |
| Minimum Copper Conductor Size (AWG SOL) | 20 |
| Minimum Copper Conductor Size (AWG STR) | 20 |
| Maximum Metric Conductor Size (mm²) | 2 |
| Minimum Metric Conductor Size (mm²) | 0.8 |
| Insulation Material | Non-Insulated |
| Overall Length (In.) | 0.29 |
| Overall Length (mm) | 7.4 |
| Overall Width (In.) | 0.16 |
| Overall Width (mm) | 4.1 |
| Standards Met | UL 486C, CSA C22.2 No.65 |
| UL Temperature Rating (°C) | 150 |
| UL Temperature Rating (°F) | 302 |
| CSA Temperature Rating (°C) | 150 |
| CSA Temperature Rating (°F) | 302 |
| UNSPSC Code | 39121400 |
Panduit - PS16-C - Package Includes
| UPC | 07498383402 |
|---|---|
| Std. Pkg. Qty. | 100 |
| Std. Pkg. Volume (cf) | 0.0074 |
| Std. Ctn. Qty. | 500 |
| Std. Ctn. Volume (cf) | 0.0368 |
