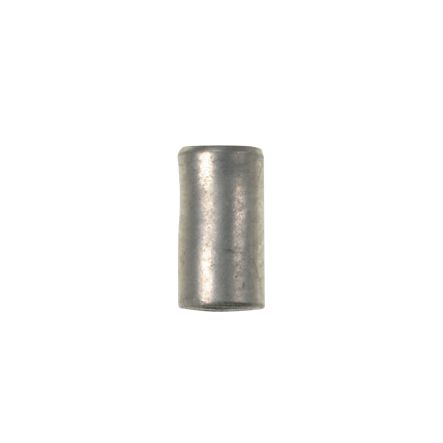

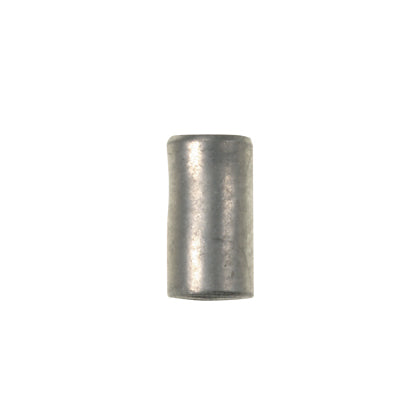

Panduit PS18-M | Pan-Term Parallel Splice
Regular price
$193.26
Unit price
Brand: Panduit
|
SKU:
PAN-PS18-M
Regular price
$193.26
Unit price
Description
Description
Panduit PS18-M | Pan-Term Parallel Splice
Our parallel splice cuts repair and extension time in half with a single crimp for secure, cost-effective wire connections.
Parallel Splice, non-insulated, 22 " 18 AWG, bulk package.
Panduit Pan-Term Parallel Splice, Metallic Non-Insulated Standard, Series: PS Series, Solid/Stranded Copper Conductor, 22 to 18 AWG Conductor, 0.13 in OD Barrel, 0.29 in Length, 5/16 in Wire Strip Length, 2000 VAC, 302 deg F, Brass, TiN Coated
Panduit - PS18-M - Features
- Designed to splice two solid or stranded wires together to repair or lengthen wires
- Parallel design results in only one crimp required to complete splice
- Seamless tubular barrel provides a consistent high performance quality crimp
- Non-insulated barrel can be used to provide an economical termination when insulation is not required
- Standard barrel configuration
- Designed to splice two solid or stranded wires together to repair or lengthen wires
- Parallel design results in only one crimp required to complete splice
- Seamless tubular barrel provides a consistent high performance quality crimp
- Maximum recommended operating temperature 302F (150C)
- Non-insulated barrel can be used to provide an economical termination when insulation is not required
Specifications
Specifications
Panduit - PS18-M - Specifications
| Brand Name | Panduit |
|---|---|
| Manufacturer Part Number | PS18-M |
| UNSPSC Code | 39121400 |
| Product Type | Parallel Splice |
| Base Material | Brass |
| Barrel Type | Standard |
| Finish/Coating | Tin-Plated |
| Copper Conductor Size (AWG) | 22-18 |
| Maximum Copper Conductor Size (AWG SOL) | 18 |
| Maximum Copper Conductor Size (AWG STR) | 18 |
| Minimum Copper Conductor Size (AWG SOL) | 22 |
| Minimum Copper Conductor Size (AWG STR) | 22 |
| Maximum Metric Conductor Size (mm²) | 1 |
| Minimum Metric Conductor Size (mm²) | 0.5 |
| Insulation Material | Non-Insulated |
| Overall Length (In.) | 0.29 |
| Overall Length (mm) | 7.4 |
| Overall Width (In.) | 0.13 |
| Overall Width (mm) | 3.3 |
| Standards Met | UL 486C, CSA C22.2 No.65 |
| UL Temperature Rating (°C) | 150 |
| UL Temperature Rating (°F) | 302 |
| CSA Temperature Rating (°C) | 150 |
| CSA Temperature Rating (°F) | 302 |
| UPC | 07498383401 |
