Brand: Panduit | SKU: PAN-PS18-RAW

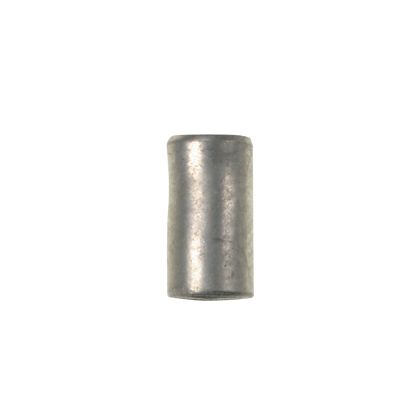

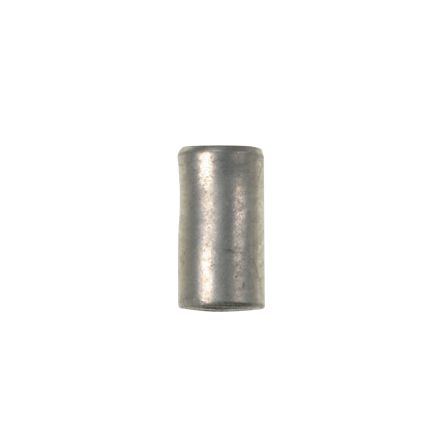

Panduit PS18-M | Pan-Term PS18-M Parallel Splice

Name: Panduit PS18-M | Pan-Term PS18-M Parallel Splice
Brand: Anixter
SKU: PAN-PS18-RAW
Price: 164.64 USD
Availability: InStock

$164.64

Description

Panduit PS18-M Non-Insulated Parallel Splice

Panduit PS18-M - SPLICE - PARALLEL SPLICES, NON INSULATE

Brand Name	Panduit
Manufacturer Part Number	PS18-M
Item Description	Pan-Term PS18-M Parallel Splice
Product Type	Parallel Splice
Maximum Copper Conductor Size (AWG SOL)	#18
Maximum Copper Conductor Size (AWG STR)	#18
Minimum Copper Conductor Size (AWG SOL)	#22
Minimum Copper Conductor Size (AWG STR)	#22
Maximum Metric Conductor Size (mm²)	1
Minimum Metric Conductor Size (mm²)	0.5
Sub Brand	Pan-Term
Copper Conductor Size (AWG)	#22 - #18
Barrel Type	Standard
Maximum Voltage (V)	2
Base Material	Brass
Insulation Material	Non-Insulated
Standards Met	UL 486C, CSA C22.2 No.65
Finish/Coating	Tin-Plated
Color Code	Metallic
Overall Length (In.)	0.29
Overall Length (mm)	7.4
Overall Width (In.)	0.13
Overall Width (mm)	3.3
Wire Strip Length (In.)	0.3125
Wire Strip Length (mm)	7.9
Part Features	• Designed to splice two solid or stranded wires together to repair or lengthen wires • Parallel design results in only one crimp required to complete splice • Seamless tubular barrel provides a consistent high performance quality crimp • Non-insulated barrel can be used to provide an economical termination when insulation is not required
