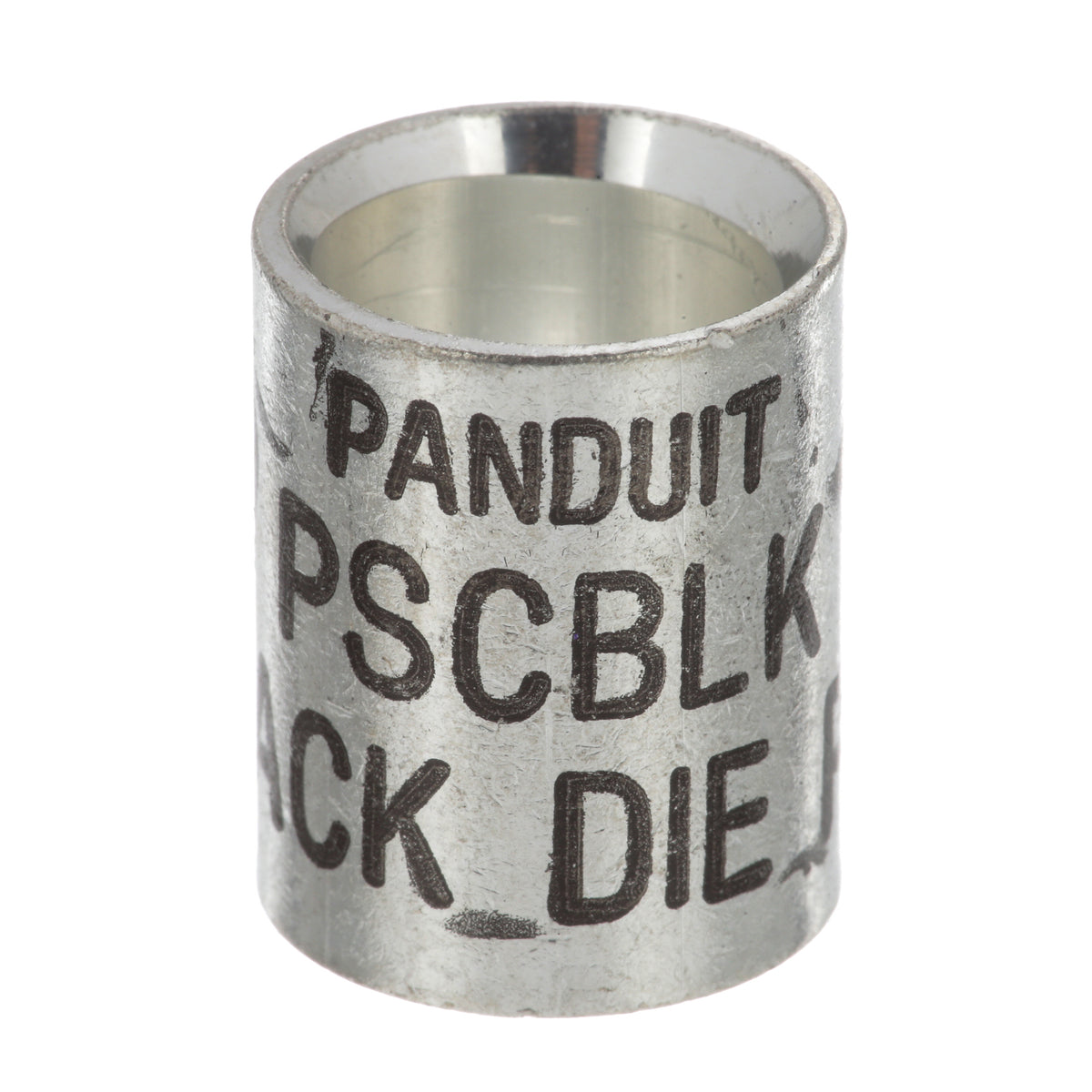

Panduit PSCBLK-Q | Compression Connectors - Splices | UPC - 0749830...
Regular price
$73.10
Unit price
Brand: Panduit
|
SKU:
1018712
Regular price
$73.10
Unit price
Description
Description
Panduit Pan-Term Parallel Splice, Series: PSC, Stranded Copper Conductor, 12 to 2/0 AWG Conductor, 0.64 in OD Barrel, 0.81 in Length, 7/8 in Wire Strip Length, Die Code: P45, 35 kV, 90 deg C, Copper, Black, Tin Plated
Features + Benefits
- Industry recognized color coding allows proper part selection and quick identification of crimping dies to speed installation
- Large easy to read part numbering for verification in demanding low light conditions
- Single crimp design speeds installation and reduces labor costs
- Chamfered on both ends to facilitate fast and easy conductor insertion to speed installation
- Tin plated to inhibit corrosion
- For use with stranded copper conductors
- UL listed and CSA certified to 35 kV and temperature rated to 90 deg C when crimped with Panduit dieless and die type crimping tools
Panduit PSCBLK-Q Key Specs
| Product Type | Compression Connectors - Splices |
| Sub Brand | Pan-Lug |
| Copper Conductor Size (kcmil) | 640 |
| Color Code | Black |
| Panduit Die Index Number | P45 |
| Overall Length (In.) | 0.81 |
| Overall Length (mm) | 20.6 |
| Wire Strip Length (In.) | 0.87 |
| Wire Strip Length (mm) | 22.2 |
Panduit PSCBLK-Q Data Sheets
| Catalog Cut Sheets | Catalog Cut Sheet - PSCRED-L Product Page | Download and View |
| Press Releases | Press Release - Parallel Splice PR II | Download and View |
| Product Bulletins | Product Bulletin - SA-PCCB08 (Parallel Splice) PDF for web (7-07) | Download and View |
| Selection Guides | Selection Guide - WW-pcsg15 (parallel splice selection guide)7-25-11 | Download and View |
| Part Drawings | Part Drawing - PDF - PSCBLK-CUST | Download and View |
| Installation Documents | Parallel Splice Connector Installation Instructions | Download and View |
