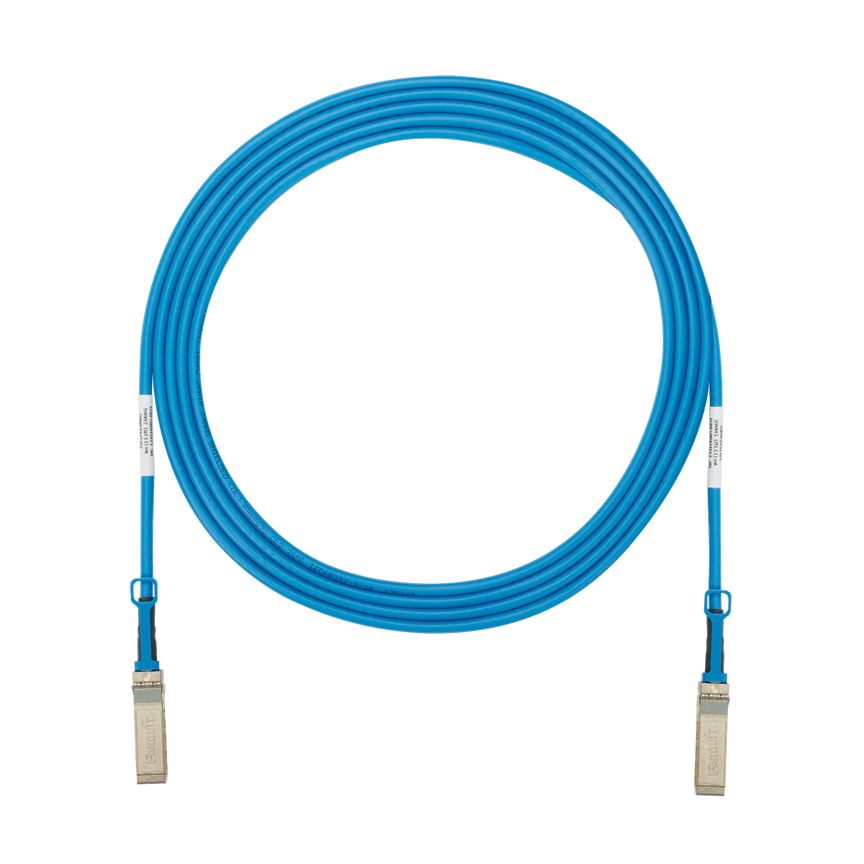

Panduit PSF1PXD4.5MBU | SFP+ Cable Assembly
Description
Description
As virtualization, consolidation and convergence initiatives continue to grow, so do the demands placed on the physical infrastructure. to meet the needs for faster processing speeds, low power server inter connect and I/O consolidation deployments, Panduit offers 10Gig SFP+ direct attach passive copper cable assemblies. this high speed data transport capability is ideal as server virtualization becomes more prevalent. with multiple virtual machines, server I/O consolidation topology requires 10 Gbps interconnects between top of rack switches and servers.

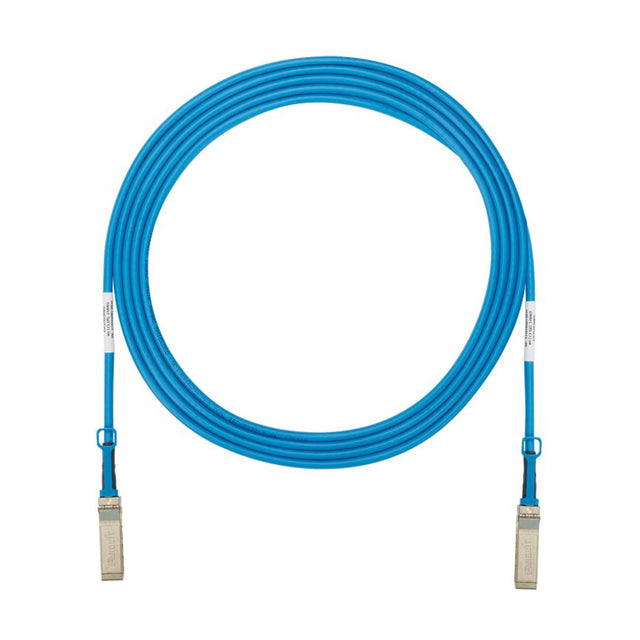

Panduit SFP+ Cable Assembly, 24 AWG Conductor, SFP+ 10 Gbps Plug/SFP+ 10 Gbps Boot Connector, 14.77 ft Cord, Blue
Panduit - PSF1PXD4.5MBU - Features
- Designed to provide easy and economical solutions for routing any low voltage cable along smooth and clean perimeter walls, baseboards or ceilings
- 100% performance tested for wire map, next and return loss
- Centered de-embedded plug
- Integral pair manager
- Patented tangle free latch
- Robust construction
Specifications
Specifications
Panduit - PSF1PXD4.5MBU - Specifications
| Product Type | SFP+ Cable Assembly |
|---|---|
| Jacket Material | PVC |
| Conductor Gauge (AWG) | 24 |
| Conductor Gauge (kcmil) | 0.4 |
| Connector 1 Type | SFP+ |
| Connector 2 Type | SFP+ |
| Color | Blue |
| Overall Length (ft.) | 14.76 |
| Overall Length (m) | 4.5 |
| Nominal Diameter (In.) | 0.23 |
| Nominal Diameter (mm) | 6 |
| Bend Radius (In.) | 1.18 |
| Bend Radius (mm) | 30 |
| Sub Brand | SFP+ |
| Number of Connector 1 Ports | 1 |
| Number of Connector 2 Ports | 1 |
| Maximum Operating Temperature (°C) | 70 |
| Maximum Operating Temperature (°F) | 158 |
| Minimum Operating Temperature (°F) | 32 |
| Data Transfer Rate (Gb/s) | 10 |
| Resistance Properties | Flame-Resistant |
| Standards Met | Compliant to SFF-8431, SFF-8432 and SFF-8472, IEC flame compliance: IEC 60332, 60333, 60324, CE and RoHS Complaint |
| Part Features | 100% performance tested, robust construction, low latency performance, passive low power assembly, low profile, small diameter cable design, built-in strain relief, variety of lengths and a variety of colors |
| UPC | 07498341882 |
Panduit - PSF1PXD4.5MBU - Environmental Information
| RoHS Status | ROHS3 Compliant |
|---|---|
| Moisture Sensitivity Level (MSL) | Not Applicable |
| ECCN | EAR99 |
| HTSUS | 8544.42.9090 |
Documents and Downloads
Documents and Downloads
- Panduit PSF1PXD4.5MBU Compliances
- Panduit PSF1PXD4.5MBU Product Bulletins
- Panduit PSF1PXD4.5MBU Part Drawings
- Panduit PSF1PXD4.5MBU Technical References
- Panduit PSF1PXD4.5MBU Technology Briefs
- Panduit PSF1PXD4.5MBU Technical References
- Panduit PSF1PXD4.5MBU Application Guides
- Panduit PSF1PXD4.5MBU RoHS Statement
