Panduit PSF1PXD4.5MWH | SFP+ Cable Assembly
Description
Description
As virtualization, consolidation, convergence initiatives continue to grow, do the demands placed the physical infrastructure. To meet the needs for faster processing , low power inter-connect I/O consolidation deployments, Panduit offers 10Gig SFP+ Direct Attach passive copper cable Assemblies. This high speed data transport capability ideal as virtualization becomes more prevalent. With multiple virtual machines, I/O consolidation topology 10 Gbps between rack switches servers. By incorporating 10Gig SFP+ Direct Attach passive copper cable assemblies into the physical infrastructure, businesses can 10 Gigabit performance port-to-port without additional signal processing conversion, providing a low power, low latency 10 Gbps option for rack switching applications. End to end high speed data transport systems from Panduit deliver enhanced availability, agility security.

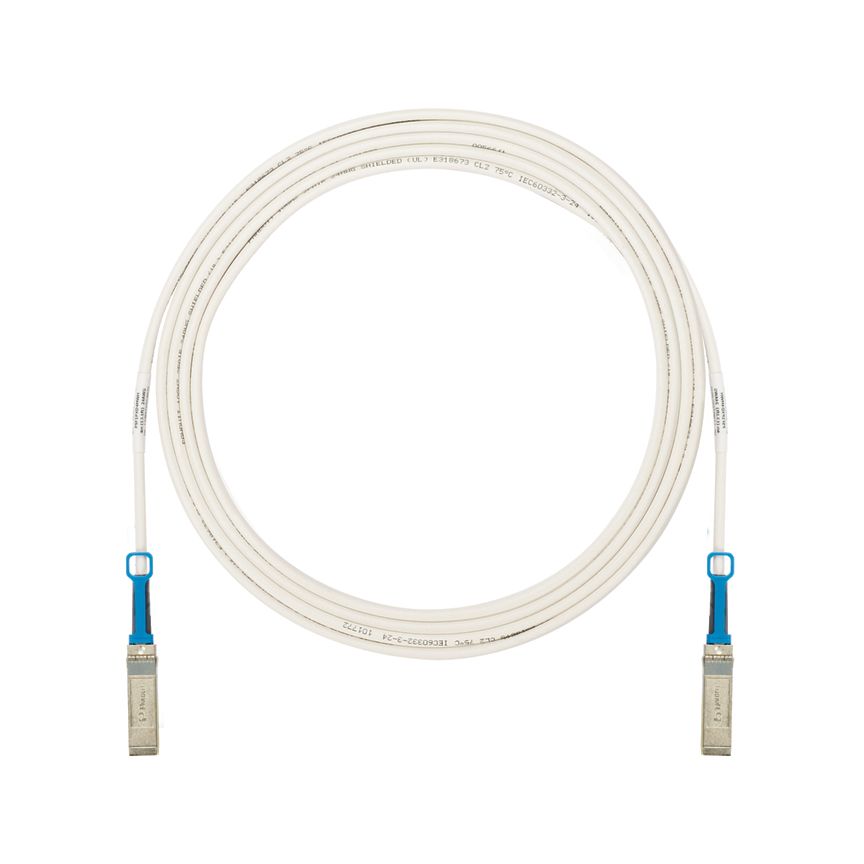

Panduit SFP+ Cable Assembly, 24 AWG Conductor, SFP+ 10 Gbps Plug/SFP+ 10 Gbps Boot Connector, 14.77 ft Cord, White
Panduit - PSF1PXD4.5MWH - Features
- Soft, premium material is safe to use on high performance cabling protecting against over tensioning
- Adjustable, releasable and re-usable multiple times ideal for applications requiring frequent moves, adds or changes
- Deeper cable channel in the base
- Rounded edges on jumper trough
- Field terminable patch cord connector
- Metal contact retention in connecting block
- Legs are molded as part of the base
- Base has tip colors on wire strip and connecting block has ring colors for wiring identification
- Four pair 110 connector plug
Specifications
Specifications
Panduit - PSF1PXD4.5MWH - Specifications
| Product Type | SFP+ Cable Assembly |
|---|---|
| Jacket Material | PVC |
| Conductor Gauge (AWG) | 24 |
| Conductor Gauge (kcmil) | 0.4 |
| Connector 1 Type | SFP+ |
| Connector 2 Type | SFP+ |
| Color | White |
| Overall Length (ft.) | 14.76 |
| Overall Length (m) | 4.5 |
| Nominal Diameter (In.) | 0.23 |
| Nominal Diameter (mm) | 6 |
| Bend Radius (In.) | 1.18 |
| Bend Radius (mm) | 30 |
| Sub Brand | SFP+ |
| Number of Connector 1 Ports | 1 |
| Number of Connector 2 Ports | 1 |
| Maximum Operating Temperature (°C) | 70 |
| Maximum Operating Temperature (°F) | 158 |
| Minimum Operating Temperature (°F) | 32 |
| Data Transfer Rate (Gb/s) | 10 |
| Resistance Properties | Flame-Resistant |
| Standards Met | Compliant to SFF-8431, SFF-8432 and SFF-8472, IEC flame compliance: IEC 60332, 60333, 60324, CE and RoHS Complaint |
| Part Features | 100% performance tested, robust construction, low latency performance, passive low power assembly, low profile, small diameter cable design, built-in strain relief, variety of lengths and a variety of colors |
| UPC | 07498341881 |
Panduit - PSF1PXD4.5MWH - Environmental Information
| RoHS Status | ROHS3 Compliant |
|---|---|
| Moisture Sensitivity Level (MSL) | Not Applicable |
| ECCN | EAR99 |
| HTSUS | 8544.42.9090 |
