Brand: Panduit
|
SKU:
10067287
Panduit PSF1PZA2MBU | 10G SFP+ DAC Assembly, 30 AWG, 2M, Blue
Regular price
$173.00
Unit price
Shipping calculated at checkout.
-
Low prices.
Price match guarantee
-
In-House Experts.
We know our products
-
Easy Returns.
Quick & Hassle Free
-
Superior Selection.
Extensive product catalog
Panduit PSF1PZA2MBU | 10G SFP+ DAC Assembly, 30 AWG, 2M, Blue
Regular price
$173.00
Unit price
Description
Description

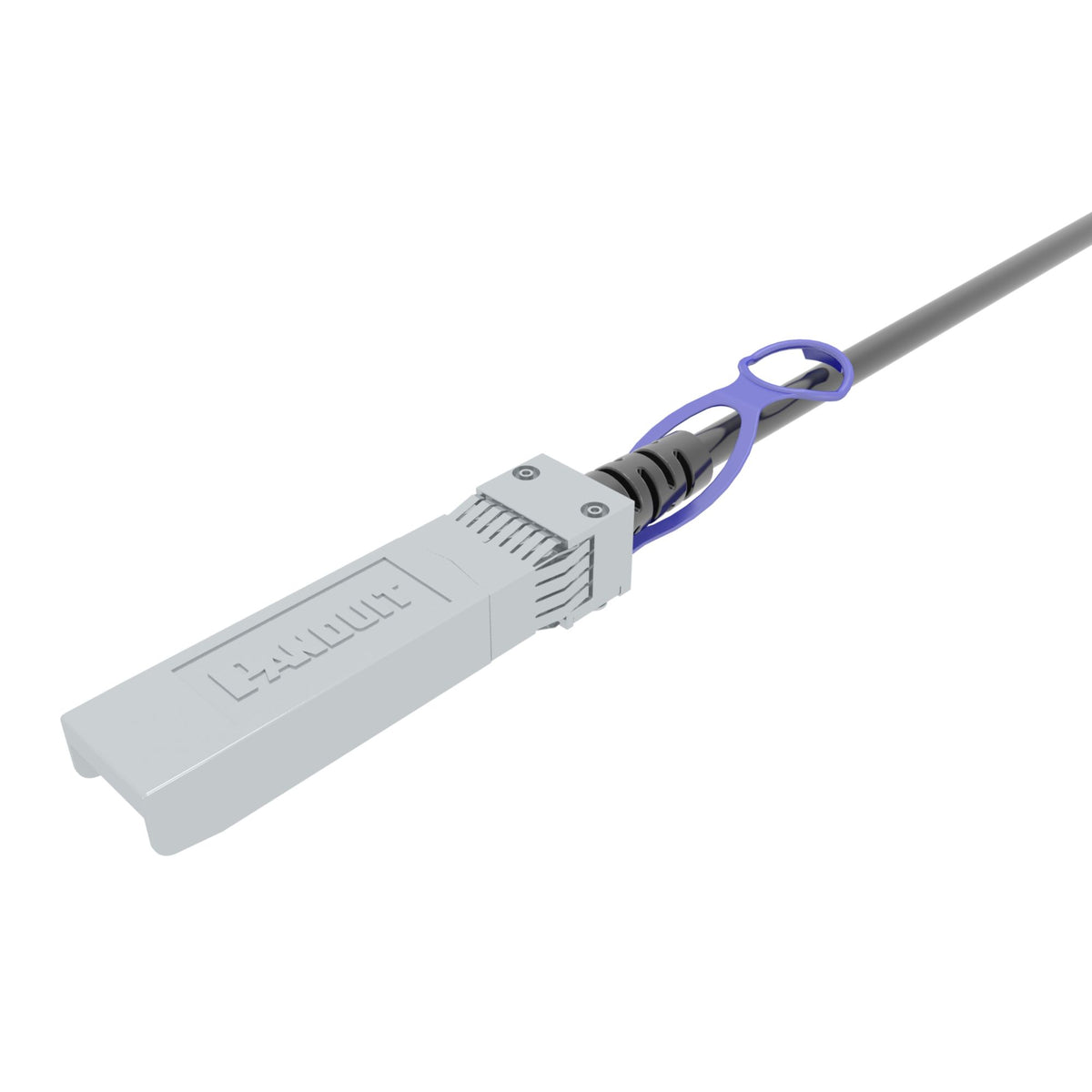

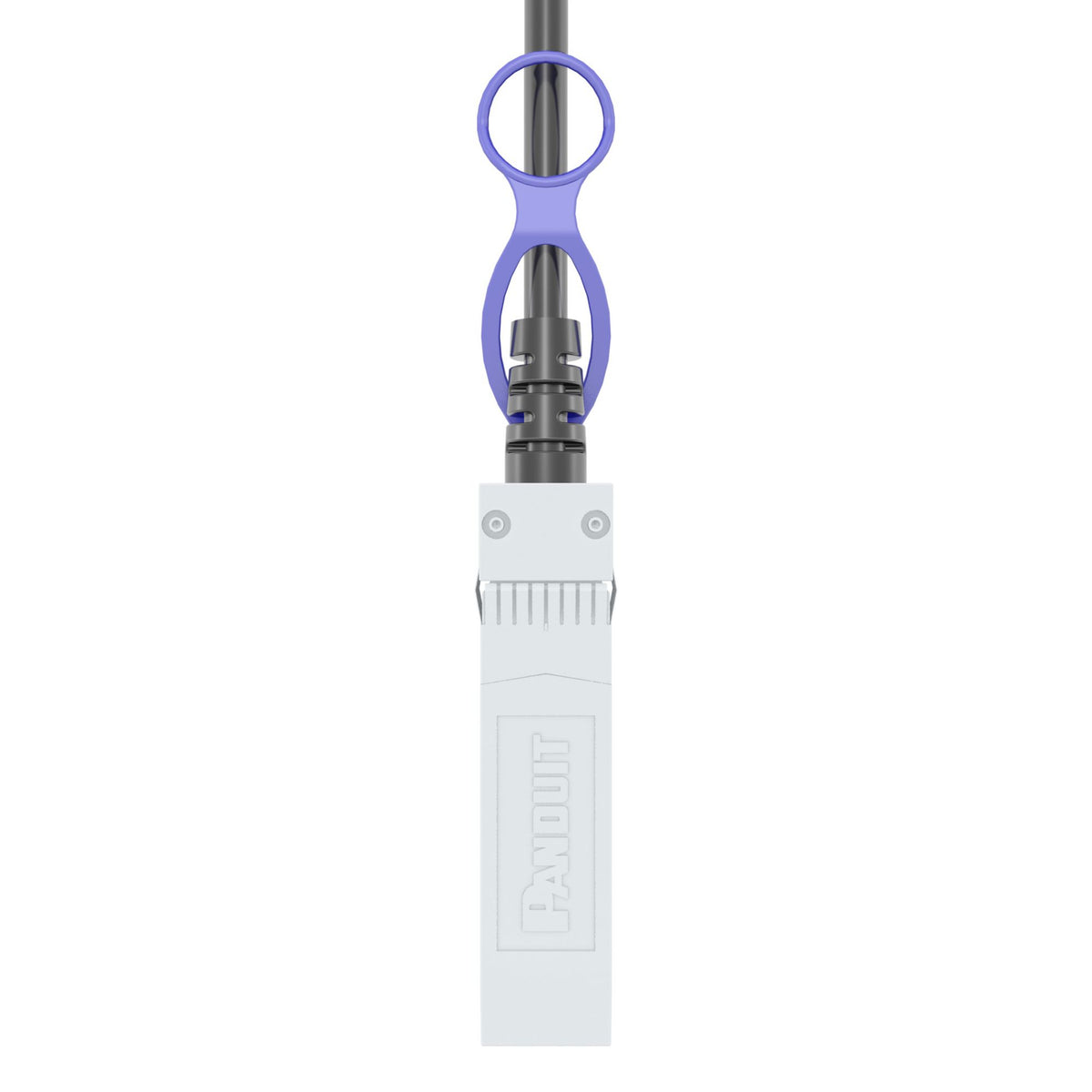

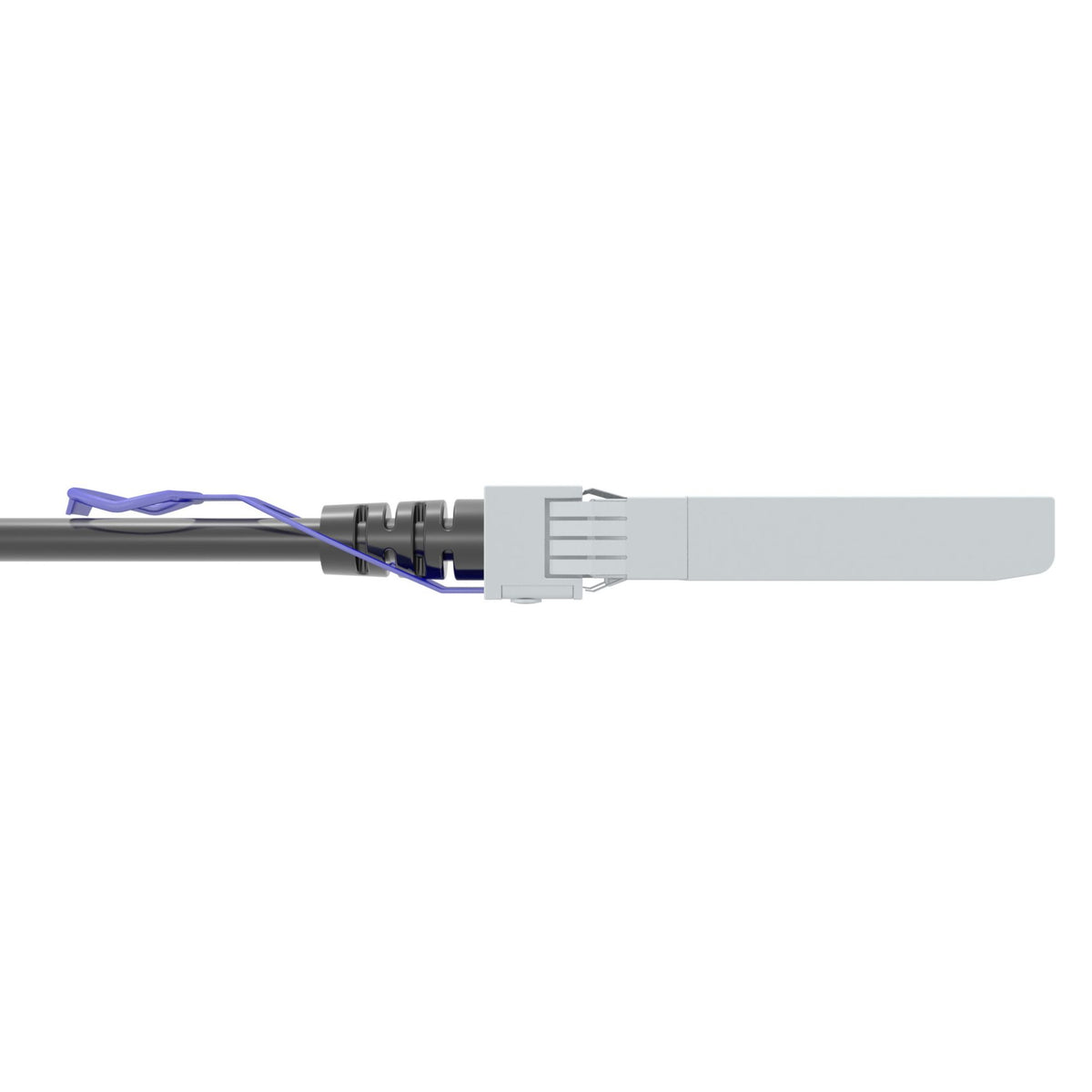

Panduit PSF1PZA2MBU | 10G SFP+ DAC Assembly, 30 AWG, 2M, Blue
This direct attach passive copper cable assembly features 10G factory-terminated SFP+ passive modular connectors on each end. The high-speed, 2-pair assembly has twinaxial cable, is blue in cable color, 30AWG and 2 meters in length.
Panduit PSF1PZA2MBU Direct Attach Passive Copper Cable Assembly, Sfp+, 10g, 30 awg, Black, 2m
Specifications
Specifications
Panduit - PSF1PZA2MBU - Product Categories
- Copper Systems
- Direct Attach Cable Assemblies
Panduit - PSF1PZA2MBU - Specifications
| Brand Name | Panduit |
|---|---|
| Manufacturer Part Number | PSF1PZA2MBU |
| Item Description | 10G SFP+ DAC Assembly, 30 AWG, 2M, Blue |
| Jacket Material | PVC |
| Conductor Gauge (AWG) | 30 |
| Conductor Gauge (kcmil) | 0.1005 |
| Connector 1 Type | SFP+ |
| Connector 2 Type | SFP+ |
| Color | Blue |
| Overall Length (ft.) | 6.56 |
| Overall Length (m) | 2 |
| Nominal Diameter (In.) | 0.24 |
| Nominal Diameter (mm) | 6.1 |
| Bend Radius (In.) | 1.2 |
| Bend Radius (mm) | 30.48 |
| Number of Connector 1 Ports | 1 |
| Number of Connector 2 Ports | 1 |
| Maximum Operating Temperature (°C) | 80 |
| Maximum Operating Temperature (°F) | 176 |
| Minimum Operating Temperature (°C) | -25 |
| Minimum Operating Temperature (°F) | -13 |
| Data Transfer Rate (Gb/s) | 10 |
| Resistance Properties | Flame-Resistant |
| Standards Met | IEC 60332-3-24, RoHS Compliant, compliant to SFF-8431, EEPROM compliant to SFF-8472, CE and RoHS Compliant |
| Part Features | 100% performance tested, robust construction, low latency performance, passive low power assembly, low profile, small diameter cable design, built-in strain relief, variety of lengths and a variety of colors |
| Device | DIRECT ATTACH CABLES |
| UNSPSC Code | 43201553 |
Panduit - PSF1PZA2MBU - Package Information
| UPC | 61305678545 |
|---|---|
| Standard Package Quantity | 1 |
| Standard Package Volume (cf) | 0.0662 |
| Standard Ctn. Quantity | 10 |
| Standard Ctn. Volume (cf) | 0.6620 |
