Panduit PSF1PZC4MBL | 10G SFP+ DAC Assembly, 26AWG, 4M, Black
Regular price
$222.94
Unit price
Description
Description
Panduit PSF1PZC4MBL | 10G SFP+ DAC Assembly, 26AWG, 4M, Black

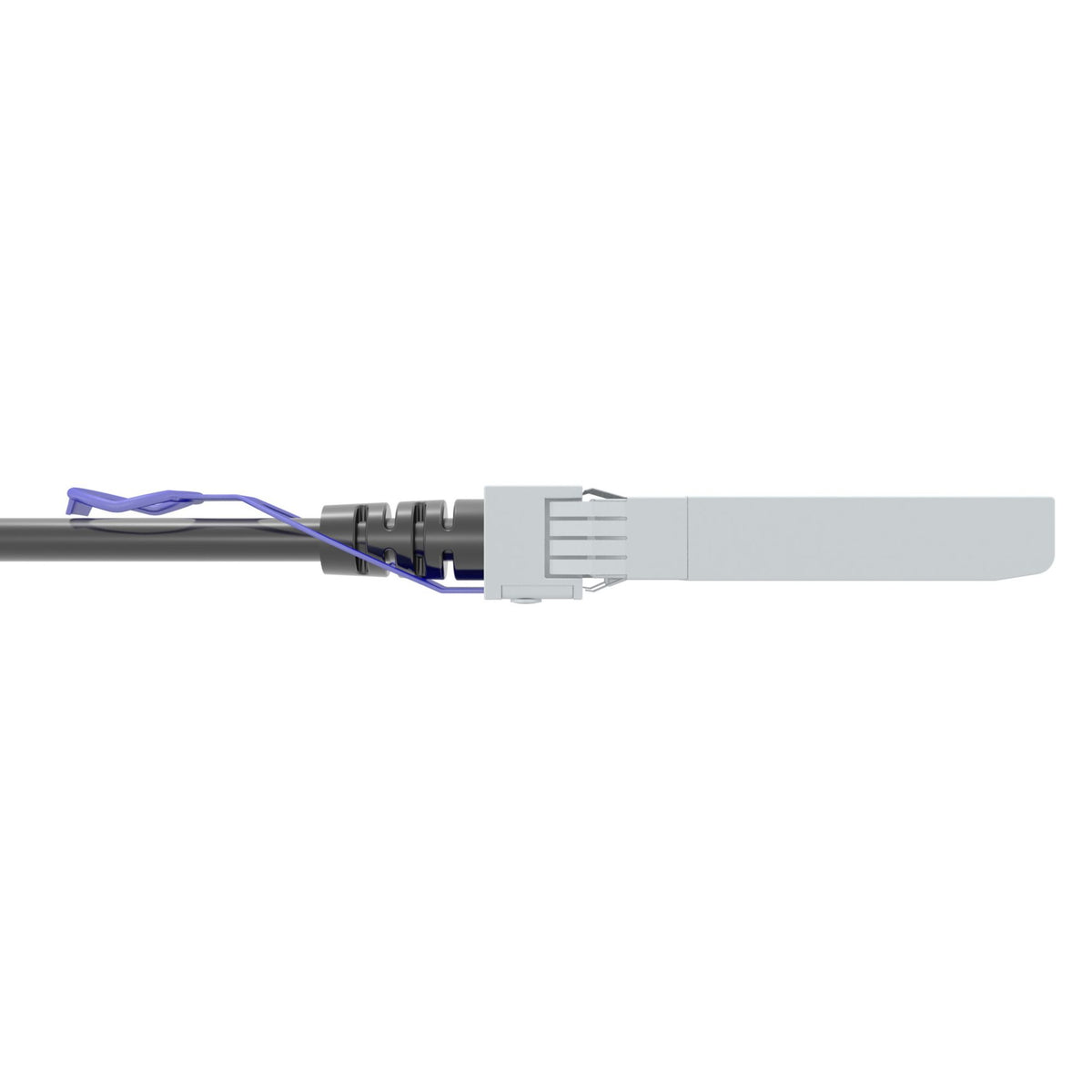

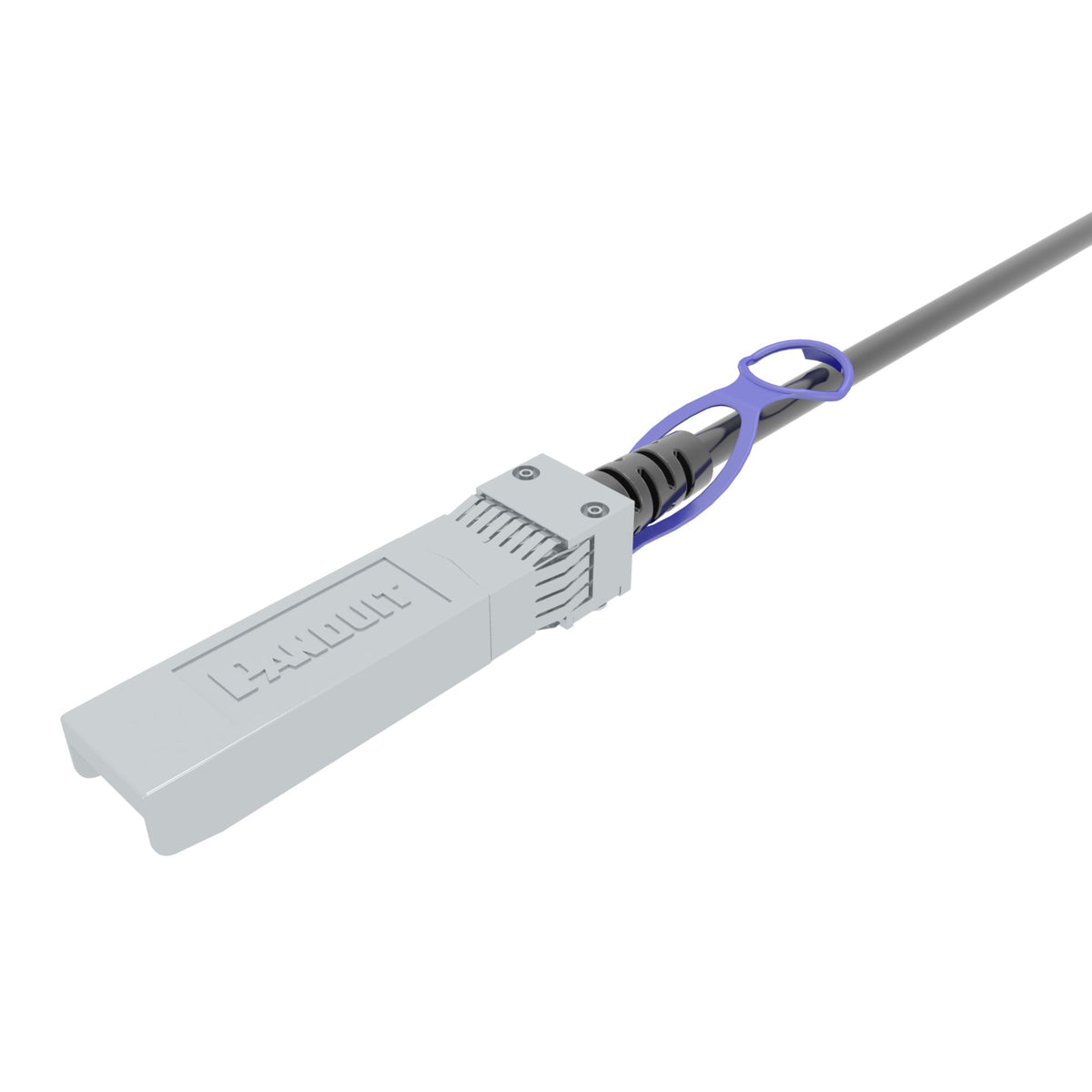

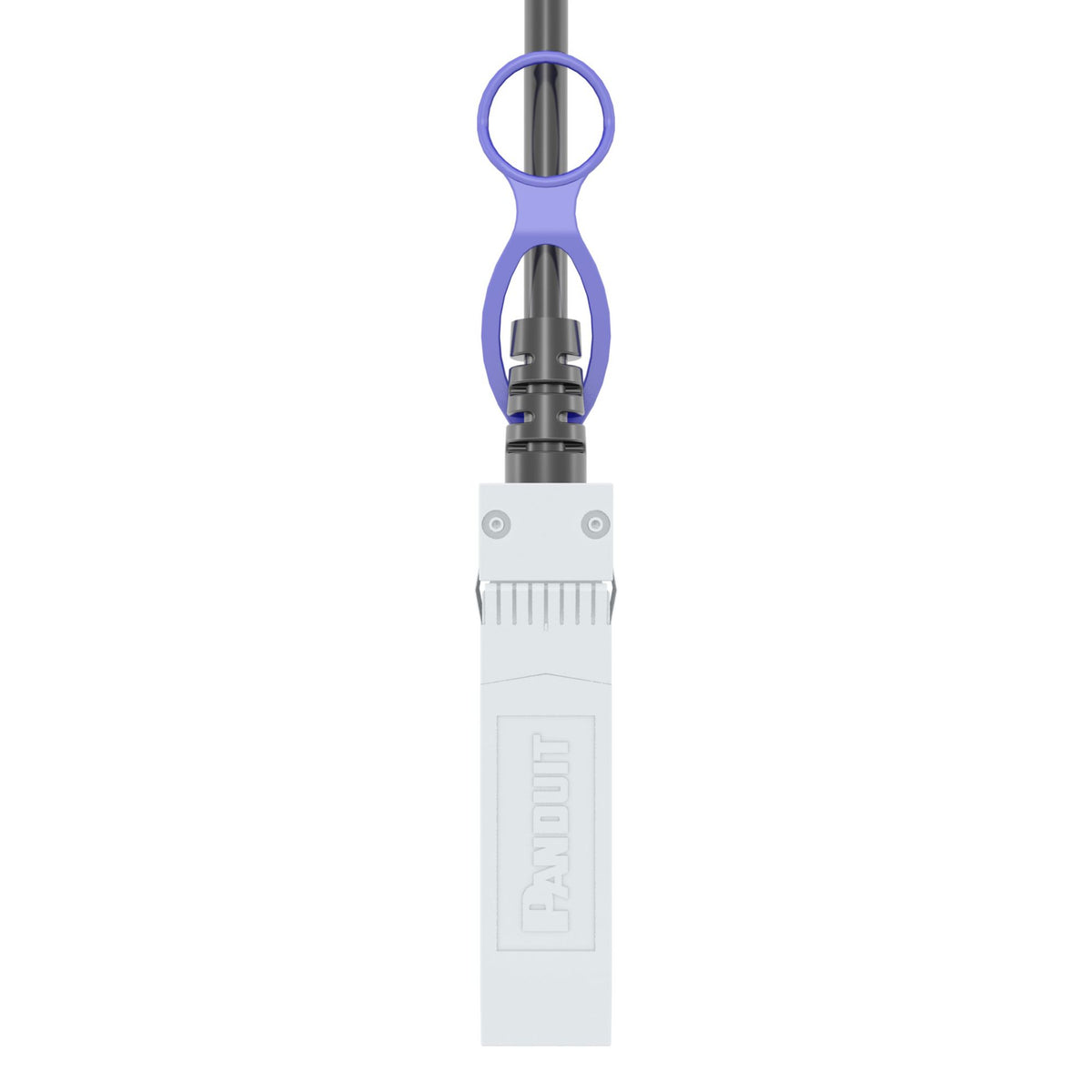

This direct attach passive copper cable assembly features 10G factory-terminated SFP+ passive modular connectors on each end. The high-speed, 2-pair assembly has twinaxial cable, is black in cable color, 26AWG and 4 meters in length.
Panduit PSF1PZC4MBL Direct Attach, Passive, Sfp+10g, 30awg, Black, 4m
Specifications
Specifications
Panduit - PSF1PZC4MBL - Product Categories
- Copper Systems
- Direct Attach Cable Assemblies
Panduit - PSF1PZC4MBL - Specifications
| Brand Name | Panduit |
|---|---|
| Manufacturer Part Number | PSF1PZC4MBL |
| Item Description | 10G SFP+ DAC Assembly, 26AWG, 4M, Black |
| Jacket Material | PVC |
| Conductor Gauge (AWG) | 26 |
| Connector 1 Type | SFP+ |
| Connector 2 Type | SFP+ |
| Color | Black |
| Overall Length (ft.) | 13.12 |
| Overall Length (m) | 4 |
| Nominal Diameter (In.) | 0.343 |
| Nominal Diameter (mm) | 8.7 |
| Bend Radius (In.) | 1.715 |
| Bend Radius (mm) | 43.5 |
| Number of Connector 1 Ports | 1 |
| Number of Connector 2 Ports | 1 |
| Maximum Operating Temperature (°C) | 80 |
| Maximum Operating Temperature (°F) | 176 |
| Minimum Operating Temperature (°C) | -25 |
| Minimum Operating Temperature (°F) | -13 |
| Data Transfer Rate (Gb/s) | 10 |
| Resistance Properties | Flame-Resistant |
| Standards Met | Compliant to SFF-8431, SFF-8432 and SFF-8472, IEC flame compliance: IEC 60332, 60333, 60324, CE and RoHS Compliant |
| Part Features | 100% performance tested, robust construction, low latency performance, passive low power assembly, low profile, small diameter cable design, built-in strain relief, variety of lengths and a variety of colors |
Panduit - PSF1PZC4MBL - Package Information
| UPC | 61305678542 |
|---|---|
| Standard Package Quantity | 1 |
| Standard Package Volume (cf) | 0.1483 |
| Standard Ctn. Quantity | 10 |
| Standard Ctn. Volume (cf) | 1.4833 |
