Panduit PSF2PZC3.5MBU | UPC - 61305677774
Regular price
$309.94
Unit price
Brand: Panduit
|
SKU:
10069940
Regular price
$309.94
Unit price
Description
Description

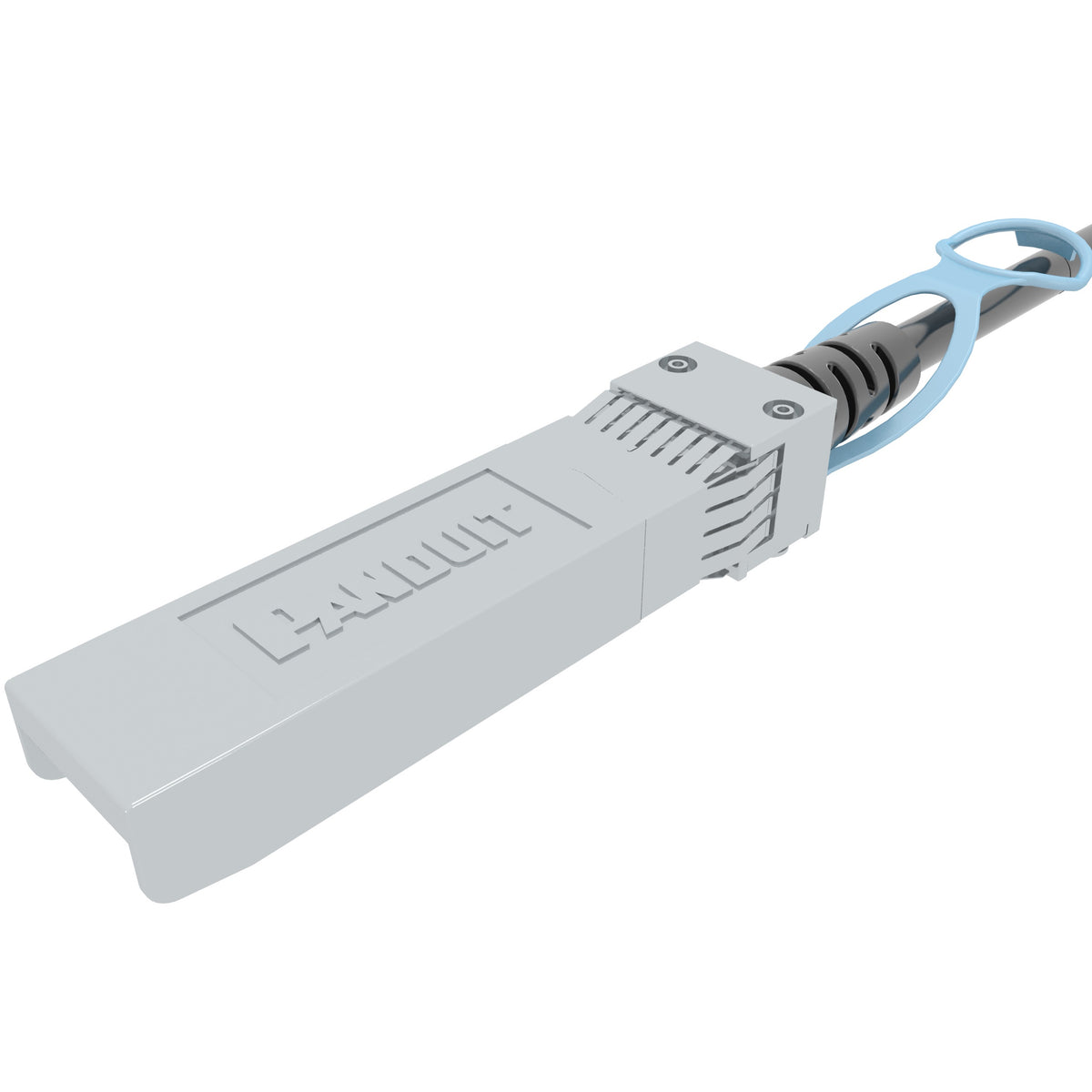

High speed twinaxial cable assembly with SFP28 25Gig hot pluggable modular connectors on each end, Blue, 3.5 meters
Panduit Panduit PSF2PZC3.5MBU | UPC - 61305677774 Key Specs
| Jacket Material | PVC |
| Conductor Gauge (AWG) | 26 |
| Connector 1 Type | SFP28 |
| Connector 2 Type | SFP28 |
| Color | Blue |
| Overall Length (ft.) | 11.48 |
| Overall Length (m) | 3.5 |
| Nominal Diameter (In.) | 0.343 |
| Nominal Diameter (mm) | 8.7 |
| Bend Radius (In.) | 1.715 |
| Bend Radius (mm) | 43.5 |
| Number of Connector 1 Ports | 1 |
| Number of Connector 2 Ports | 1 |
| Maximum Operating Temperature (°C) | 80 |
| Maximum Operating Temperature (°F) | 176 |
| Minimum Operating Temperature (°C) | -25 |
| Minimum Operating Temperature (°F) | -13 |
| Resistance Properties | Flame-Resistant |
| Standards Met | Compliant to SFF-8431, SFF-8432 and SFF-8472, IEC flame compliance: IEC 60332, 60333, 60324, CE and RoHS Complaint |
| Part Features | 100% performance tested, robust construction, low latency performance, passive low power assembly, low profile, small diameter cable design, built-in strain relief, variety of lengths and a variety of colors |
Panduit Panduit PSF2PZC3.5MBU | UPC - 61305677774 Data Sheets
| Part Drawings | SFP28 Direct Attach Copper Customer Drawing | Download and View |
| Product Bulletins | SFP28 Passive Direct Attach Copper (DAC) Cable Assemblies | Download and View |
Panduit Panduit PSF2PZC3.5MBU | UPC - 61305677774 Environmental Information
| Panduit's RoHS Statement | Download and View |
