Panduit PSL-BV1 | PSL-BV1 Ball Valve Lockout, Polypropylene, Red, 6.25"x3.1", PK1
-
Low prices.
Price match guarantee
-
In-House Experts.
We know our products
-
Easy Returns.
Quick & Hassle Free
-
Superior Selection.
Extensive product catalog
Panduit PSL-BV1 | PSL-BV1 Ball Valve Lockout, Polypropylene, Red, 6...
Description
Description

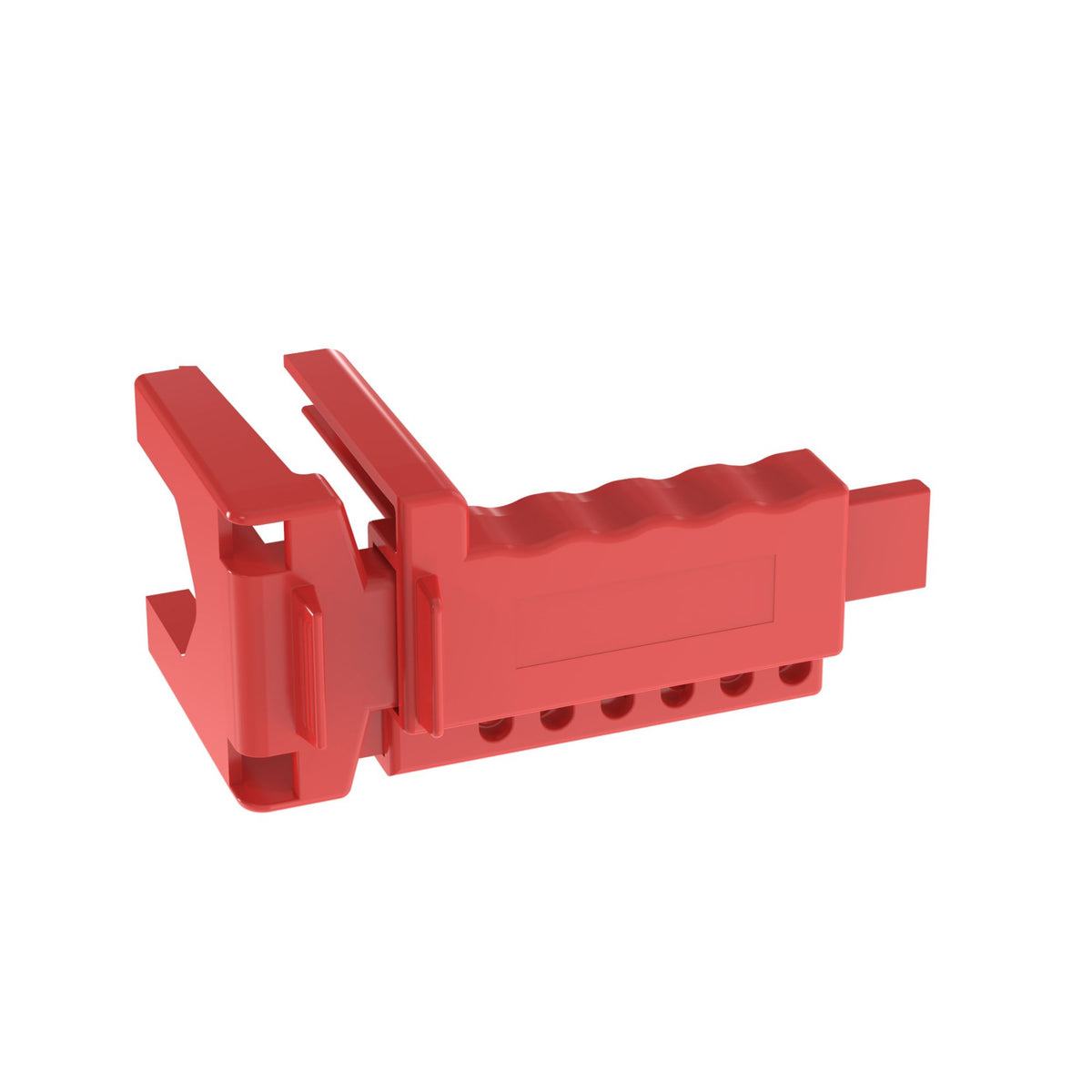

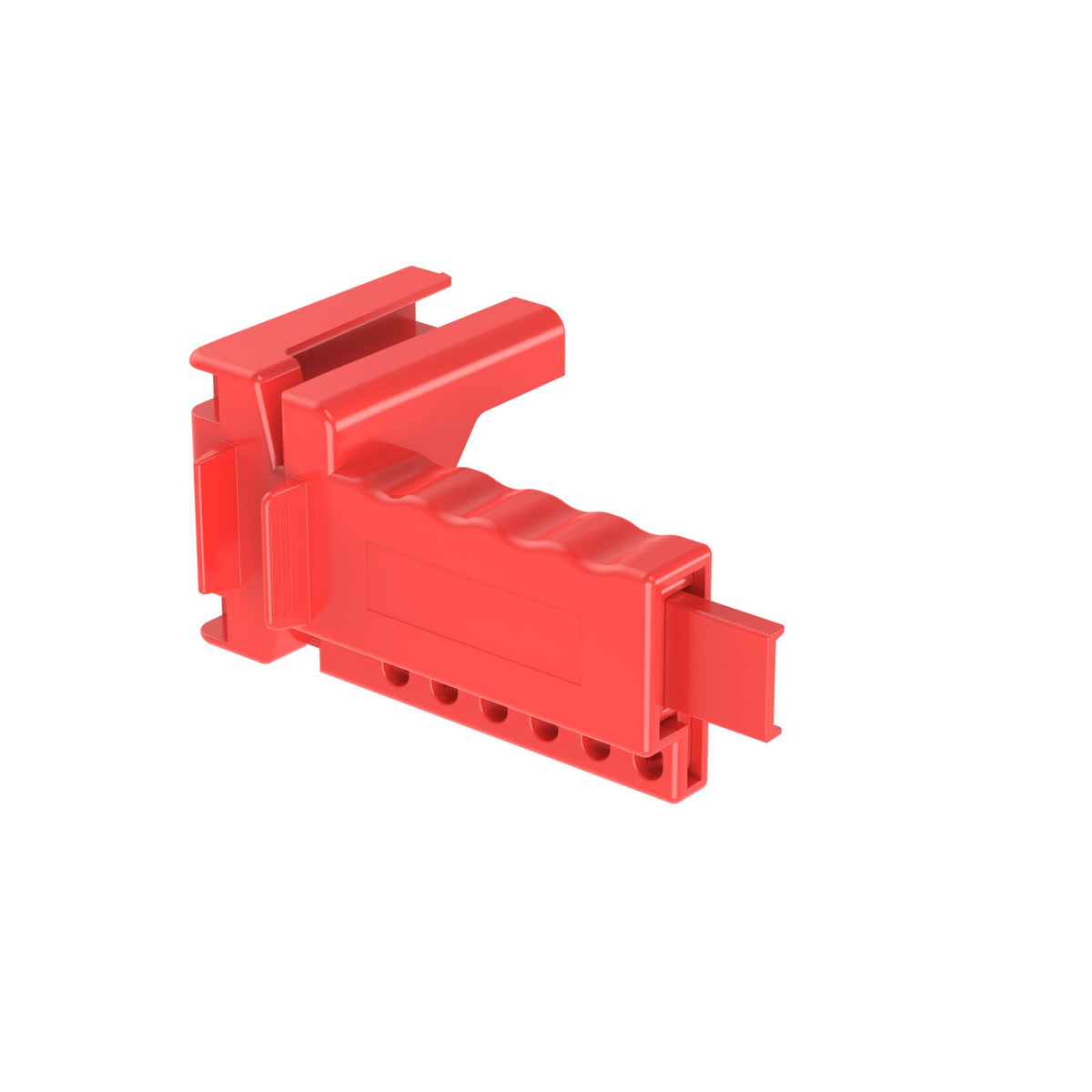

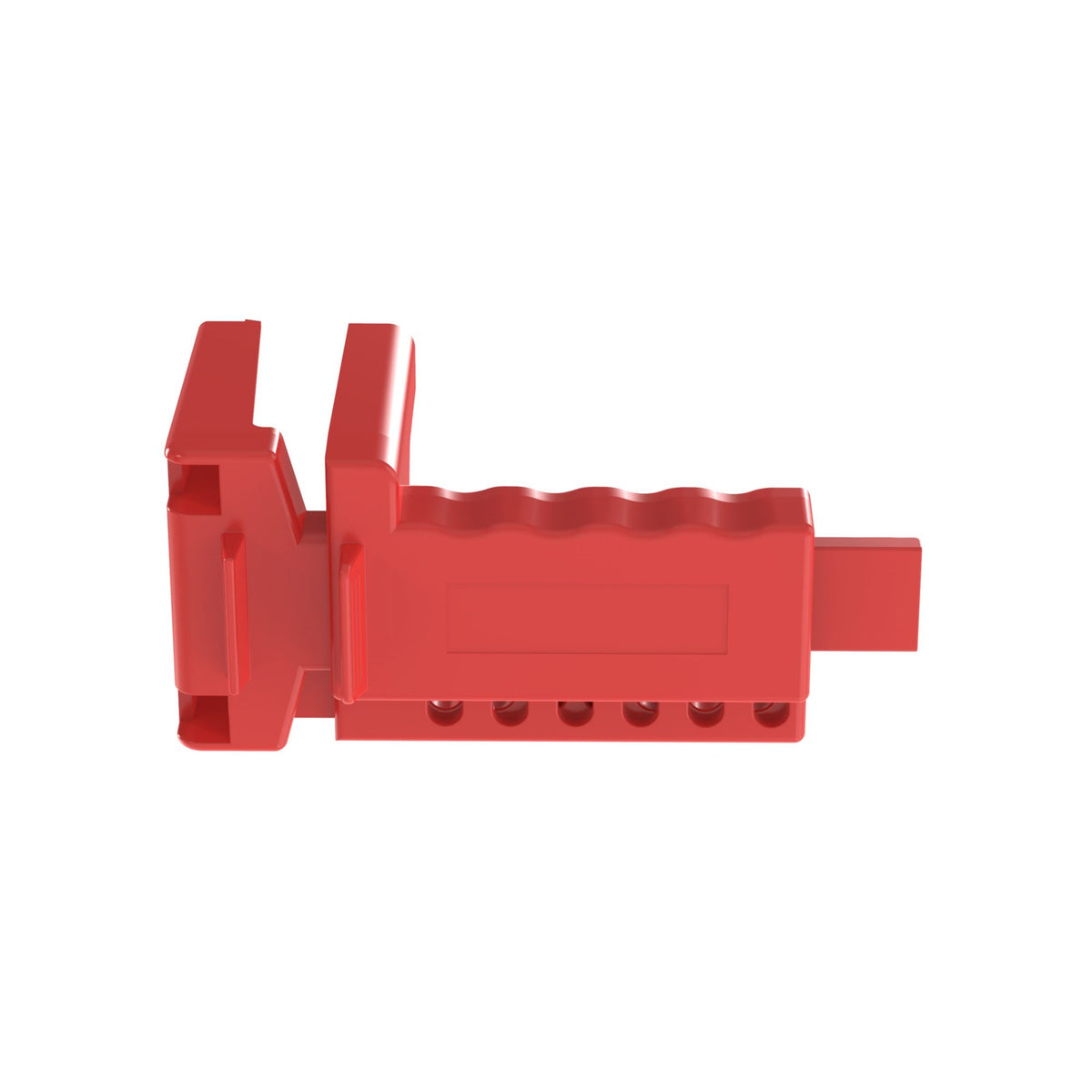

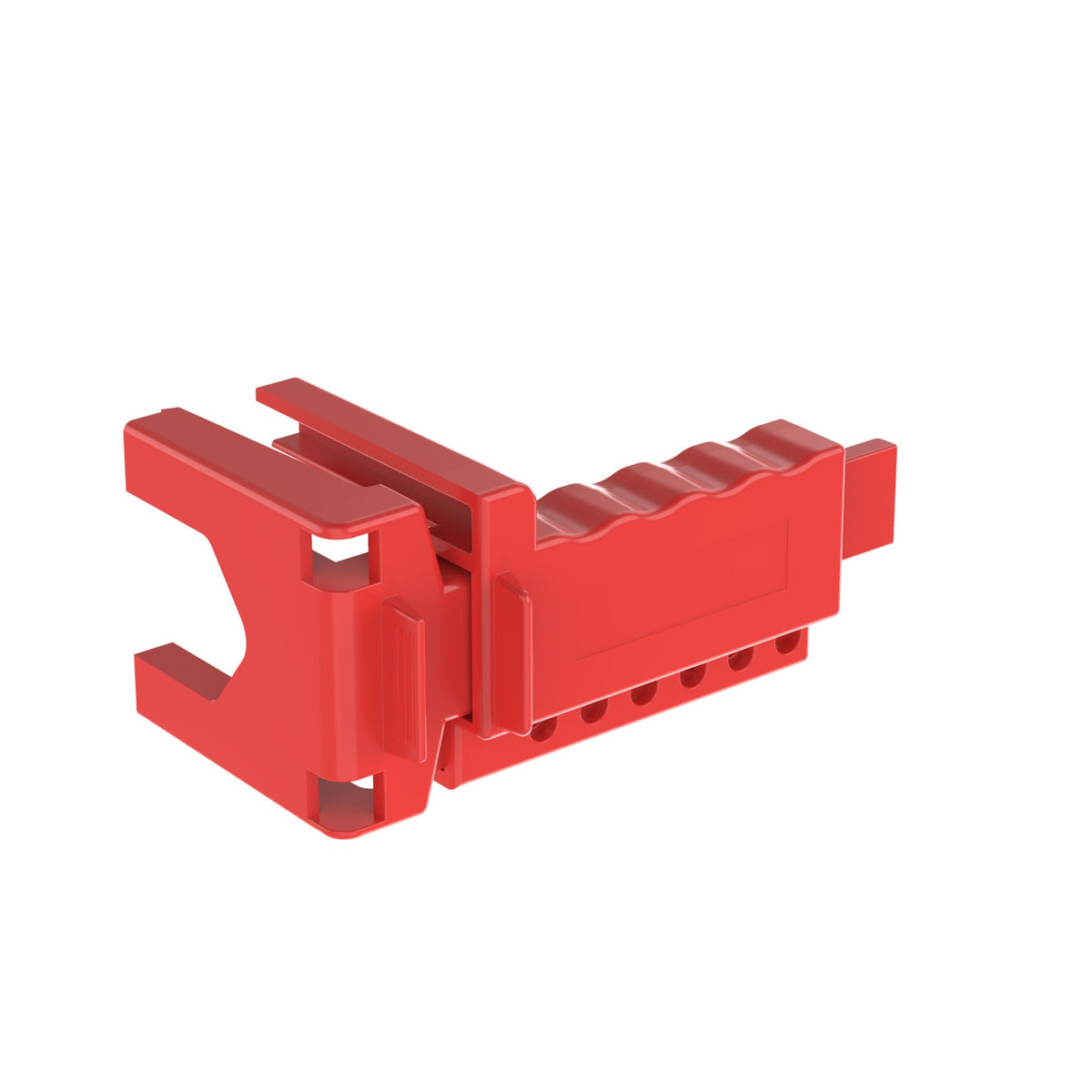

The PSL-BV1 Ball Valve Lockout is constructed of rugged polypropylene providing strength, durability, and added security. The Ball Valves regulating hydraulic, pneumatic, and chemical energy can be locked out quickly and easily. The valve accommodates valve diameters ranging from 0.25" (6.35 mm) to 1" (25.4 mm) with a maximum handle length of 7.5" (190.5 mm). Polypropylene. 3.1" x 6.25" (78.7 mm x 158.8 mm). Color Red. 1 per package.
Ball valve lockout, accommodates .25" - 1.00" valve pipe diameter.
Panduit - PSL-BV1 - Features
- Ball valves regulating hydraulic, pneumatic, and chemical energy can be locked out quickly and easily
- Accommodates valve diameters ranging from .25" (6.35mm) to 8.00" (203.20mm)
- Constructed of rugged polypropylene providing strength, durability, and added security
Specifications
Specifications
Panduit - PSL-BV1 - Product Categories
- Safety & Security
- Lockout Tagout Devices
Panduit - PSL-BV1 - Specifications
| Brand Name | Panduit |
|---|---|
| Manufacturer Part Number | PSL-BV1 |
| Item Description | PSL-BV1 Ball Valve Lockout, Polypropylene, Red, 6.25"x3.1", PK1 |
| Note | Accommodates 0.25" – 1.00" (6.4mm – 25.4mm) valve pipe diameter. Maximum handle length of 7.5" (190.5 mm). |
| Product Type | Ball Valve Lockout |
| Color | Red |
| Material | Polypropylene |
| Overall Length (In.) | 6.25 |
| Overall Length (mm) | 158.8 |
| Overall Width (In.) | 3.1 |
| Overall Width (mm) | 78.7 |
| Application | Ball valves regulating hydraulic, pneumatic, and chemical energy can be locked out quickly and easily |
| Maximum Operating Temperature (°C) | 101 |
| Maximum Operating Temperature (°F) | 215 |
| Minimum Operating Temperature (°C) | -40 |
| Minimum Operating Temperature (°F) | -40 |
| Part Features | Easy to use |
Panduit - PSL-BV1 - Package Information
| UPC | 07498334223 |
|---|---|
| Standard Package Quantity | 1 |
| Standard Package Volume (cf) | 0.0705 |
| Standard Ctn. Quantity | 10 |
| Standard Ctn. Volume (cf) | 0.7051 |
Panduit - PSL-BV1 - Videos
| Video 1 | Click to View |
|---|
