Panduit PSL-CBNT No-Tool Circuit Breaker Lockout Device, Red
Description
Description

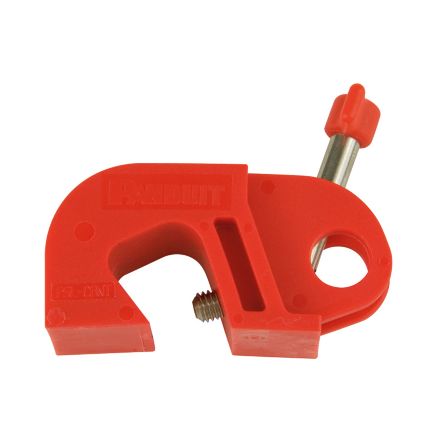

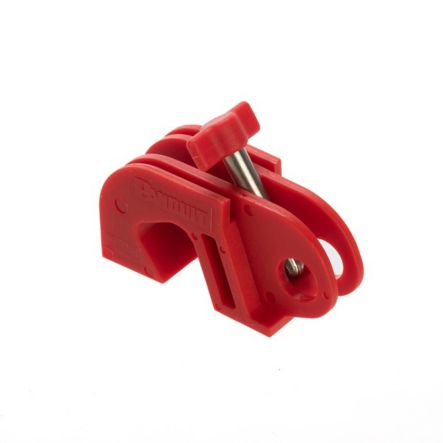

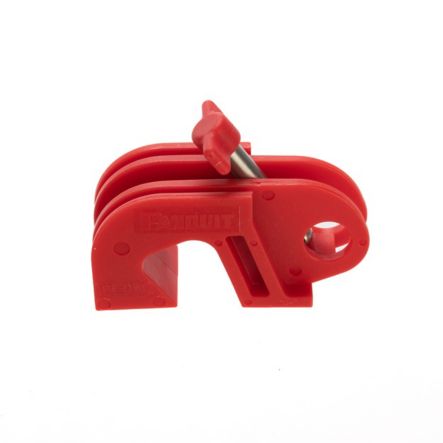

The PSL-CBNT No Tool Universal Circuit Breaker Lockout can be locked in the off position quickly and easily without any tools. The compact, universal design fits a wide range of single, double, and triple handle circuit breakers. Lockout accommodates breaker handle sizes ranging from 0.30" – 0.60" (7.62 mm – 15.24 mm) tall and 0.16" – 0.35" (4.06 mm x 8.89 mm) thick. Ideal for industrial and harsh applications, corrosion-resistant. Nylon and Stainless Steel. Color Red. 1 per package.
Panduit - PSL-CBNT - Features
- No-Tool Circuit Breaker Lockout Device. Quickly locks circuit breakers in the off position without any tools. Compact, universal design fits a wide range of single, double, and triple handle circuit breakers. Accommodates breaker handle sizes ranging f rom 0.3 inch - 0.60 inch (7.6 mm x 15.2 mm) tall and 0.16 inch - 0.35 inch (4.1 mm x 8.9 mm) thick. Easily secured to circuit breaker without modifications or holes in the breaker handle. Constructed of rugged nylon and stainless steel for industrial a nd harsh applications.
- Quickly locks circuit breakers in the off position without any tools
- Compact, universal design fits a wide range of single, double, and triple handle circuit breakers
- Accommodates breaker handle sizes ranging from .30"; - .60"; (7.6mm x 15.2mm) tall and .16"; - .35"; (4.1mm x 8.9mm) thick
- Easily secured to circuit breaker without modifications or holes in the breaker handle
- Constructed of rugged nylon and stainless steel for industrial and harsh applications
Specifications
Specifications
Panduit - PSL-CBNT - Product Categories
- Safety & Security
- Lockout Tagout Devices
Panduit - PSL-CBNT - Specifications
| Brand Name | Panduit |
|---|---|
| Manufacturer Part Number | PSL-CBNT |
| Item Description | PSL-CBNT Circuit Breaker Lockout no tool, Nylon, Red, 2.05"x0.75", PK1 |
| Product Type | Circuit Breaker Lockout |
| Color | Red |
| Material | Nylon |
| Overall Length (In.) | 2.05 |
| Overall Length (mm) | 52 |
| Overall Width (In.) | 0.75 |
| Overall Width (mm) | 19 |
| Environment | Harsh Environment |
| Application | Quickly locks out circuit breakers (such as 120/277V breakers); ideal for industrial and harsh applications |
| Maximum Operating Temperature (°C) | 121 |
| Maximum Operating Temperature (°F) | 250 |
| Minimum Operating Temperature (°C) | -40 |
| Minimum Operating Temperature (°F) | -40 |
| Part Features | Fits single and mulit-pole breakers |
Panduit - PSL-CBNT - Package Information
| UPC | 07498342118 |
|---|---|
| Standard Package Quantity | 1 |
| Standard Package Volume (cf) | 0.0175 |
| Standard. Ctn. Quantity | 10 |
| Standard. Ctn. Volume (cf) | 0.1748 |
