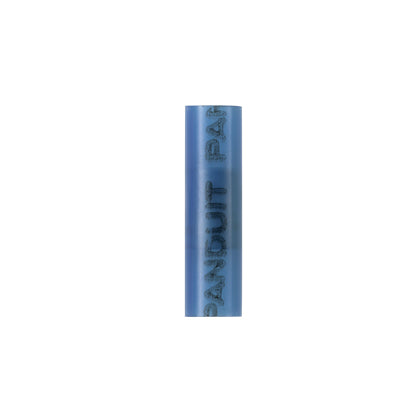

Panduit PSN16-C | Pan-Term Parallel Splice
Regular price
$91.65
Unit price
Brand: Panduit
|
SKU:
10044867
Regular price
$91.65
Unit price
Description
Description
Panduit PSN16-C | Pan-Term Parallel Splice
Panduit offers the permanence and total reliability of compression connectors or the versatility and reusability of mechanical connectors with Listed and Certified products. Designs to meet every application in sizes 14 AWG thru 1000 kcmil. All Panduit connectors have design and construction features which provide maximum dependability and lowest total installed cost.
Panduit - PSN16-C - Features
- Designed to splice two solid or stranded wires together to repair or lengthen wires
- Parallel design results in only one crimp required to complete splice
- Seamless tubular barrel provides a consistent high performance quality crimp
- Nylon insulated
- Straight angle
- Standard barrel configuration
- Application tool CT-100A, CT-1525, CT-2500
Specifications
Specifications
Panduit - PSN16-C - Specifications
| Product Type | Parallel Splice |
|---|---|
| Base Material | Brass |
| Barrel Type | Standard |
| Finish/Coating | Tin-Plated |
| Copper Conductor Size (AWG) | 20-16 |
| Maximum Copper Conductor Size (AWG SOL) | 16 |
| Maximum Copper Conductor Size (AWG STR) | 16 |
| Minimum Copper Conductor Size (AWG SOL) | 20 |
| Minimum Copper Conductor Size (AWG STR) | 20 |
| Maximum Metric Conductor Size (mm²) | 1.5 |
| Minimum Metric Conductor Size (mm²) | 0.8 |
| Insulation Material | Nylon |
| Overall Length (In.) | 0.75 |
| Overall Length (mm) | 19 |
| Overall Width (In.) | 0.21 |
| Overall Width (mm) | 5.3 |
| UL Temperature Rating (°C) | 105 |
| UL Temperature Rating (°F) | 221 |
| CSA Temperature Rating (°C) | 105 |
| CSA Temperature Rating (°F) | 221 |
| Maximum Voltage (V) | 300 |
| UNSPSC Code | 39121400 |
Panduit - PSN16-C - Package Includes
| UPC | 07498383302 |
|---|---|
| Std. Pkg. Qty. | 100 |
| Std. Pkg. Volume (cf) | 0.0070 |
| Std. Ctn. Qty. | 500 |
| Std. Ctn. Volume (cf) | 0.0350 |
