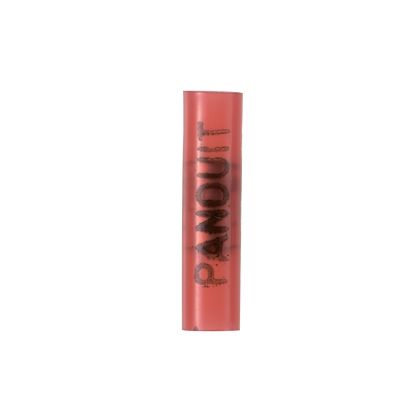

Panduit PSN18-M | Pan-Term PSN18-M Parallel Splice
Regular price
$343.29
Unit price
Brand: Panduit
|
SKU:
PSN18-M
Regular price
$343.29
Unit price
Description
Description
Panduit PSN18-M | Pan-Term PSN18-M Parallel Splice
Panduit PSN18-M Nylon Insulated Parallel Splice
Specifications
Specifications
Panduit - PSN18-M - Product Categories
- Wire Termination
- Splices
Panduit - PSN18-M - Specifications
| Brand Name | Panduit |
|---|---|
| Manufacturer Part Number | PSN18-M |
| Item Description | Pan-Term PSN18-M Parallel Splice |
| Product Type | Parallel Splice |
| Maximum Copper Conductor Size (AWG SOL) | #18 |
| Maximum Copper Conductor Size (AWG STR) | #18 |
| Minimum Copper Conductor Size (AWG SOL) | #22 |
| Minimum Copper Conductor Size (AWG STR) | #22 |
| Maximum Metric Conductor Size (mm²) | 1 |
| Minimum Metric Conductor Size (mm²) | 0.5 |
| Sub Brand | Pan-Term |
| Copper Conductor Size (AWG) | #22 - #18 |
| Barrel Type | Standard |
| Maximum Voltage (V) | 300 |
| Base Material | Brass |
| Insulation Material | Nylon |
| Finish/Coating | Tin-Plated |
| Color Code | Red |
| Overall Length (In.) | 0.75 |
| Overall Length (mm) | 19 |
| Overall Width (In.) | 0.18 |
| Overall Width (mm) | 4.6 |
| Wire Strip Length (In.) | 0.3125 |
| Wire Strip Length (mm) | 7.9 |
| UL Temperature Rating (°C) | 105 |
| UL Temperature Rating (°F) | 221 |
| CSA Temperature Rating (°C) | 105 |
| CSA Temperature Rating (°F) | 221 |
| Part Features | • Designed to splice two solid or stranded wires together to repair or lengthen wires • Parallel design results in only one crimp required to complete splice • Seamless tubular barrel provides a consistent high performance quality crimp |
Panduit - PSN18-M - Package Information
| UPC | 07498383301 |
|---|---|
| Std. Pkg. Qty. | 1000 |
| Std. Pkg. Volume (cf) | 0.0461 |
| Std. Ctn. Qty. | 0 |
| Std. Ctn. Volume (cf) | 0.0000 |
