Brand: Panduit
|
SKU:
CMP-00424PNDS-7-06
Panduit PUFP6X04BU-UG | Tx6A Copper Cable, Cat 6A, 23 Awg, U/Ftp, Cmp, Blue
Regular price
$3.78
Unit price
Shipping calculated at checkout.
-
Low prices.
Price match guarantee
-
In-House Experts.
We know our products
-
Easy Returns.
Quick & Hassle Free
-
Superior Selection.
Extensive product catalog
Panduit PUFP6X04BU-UG | Tx6A Copper Cable, Cat 6A, 23 Awg, U/Ftp, C...
Regular price
$3.78
Unit price
Brand: Panduit
|
SKU:
CMP-00424PNDS-7-06
Regular price
$3.78
Unit price
Shipping calculated at checkout.
Description
Description
Panduit PUFP6X04BU-UG | Tx6A Copper Cable, Cat 6A, 23 Awg, U/Ftp, Cmp, Blue

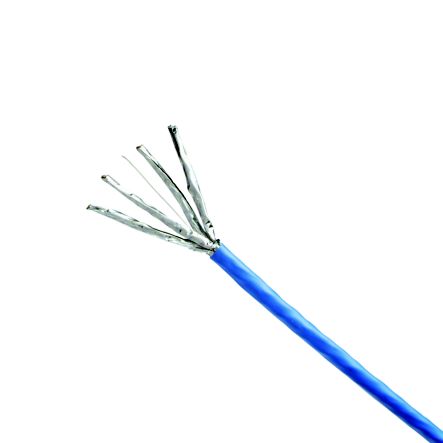

The TX6A Cat 6A U/FTP Plenum copper cable is constructed of 23 AWG copper conductors with HDPE insulation. The copper conductors are individually shielded, twisted in pairs and covered by a flame retardant PVC (CMP), Blue jacket. Packaged 1000ft/305m on a reel
Panduit - PUFP6X04BU-UG - Features
- Category 6A plenum (CMP) 4-pair U/FTP shielded copper cable. Conductors are 23 AWG with HDPE insulation. Conductors are twisted in pairs, each individual twisted pair includes a metallic foil shield and is protected by a low smoke, flame-retardant PV C jacket.
- Exceeds requirements of ANSI/TIA/EIA-568-C.2 Category 6A, IEEE 802.3an-2006, and ISO 11801 Class EA channel standards
- Exceeds requirements of ANSI/TIA/EIA-568-C.2 Category 6A and IEC 61156-5 Category 6A component standards
- Third party tested to comply with ANSI/TIA/EIA-568B.2-10
- Cable diameter 0.308 in. (7.8mm) nominal
- Installation temperature range: 32F to 140F (0C to 60C)
- Operating temperature range: 14F to 140F (-10C to 60C)
- Descending length cable markings enable easy identification of remaining cable which reduces installation time and cable scrap
Specifications
Specifications
Panduit - PUFP6X04BU-UG - Product Categories
- Copper Systems
- Enterprise/Data Center Copper Cable
Panduit - PUFP6X04BU-UG - Specifications
| Brand Name | Panduit |
|---|---|
| Manufacturer Part Number | PUFP6X04BU-UG |
| Item Description | Tx6A Copper Cable, Cat 6A, 23 Awg, U/Ftp, Cmp, Blue |
| Note | Available in Asia Pacific, EMEA and Latin America |
| Environment | Indoor |
| Performance Level | Category 6A |
| Cable Construction | U/FTP |
| Flammability Rating | CMP |
| Sub Brand | Pan-Net |
| Number of Pairs | 4 |
| Conductor Material | Copper |
| Conductor Type | Solid |
| Conductor Gauge (AWG) | 23 |
| Color | Blue |
| Product Type | Copper Cable |
Panduit - PUFP6X04BU-UG - Package Information
| UPC | 07498339797 |
|---|---|
| Standard Package Quantity | 1000 |
| Standard Package Volume (cf) | 2.9639 |
| Standard Ctn. Quantity | 20000 |
| Standard Ctn. Volume (cf) | 59.2778 |
