Panduit PUM-049-2S-D30 | Pum-049-2S-D30 Fir Tree Tie, Blk, High Hea...
Description
Description

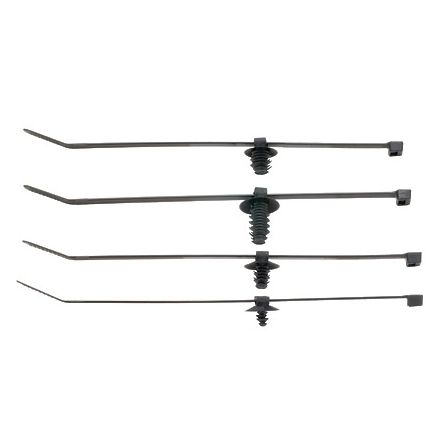

Panduit PUM-049-2S-D30 Fir Tree Push Mounts provide increased retention and lower insertion force. Ideal for solution for securing wire harnesses in automotive, marine, white goods, heavy equipment and mass transit-rail markets. This assembly has a maximum bundle diameter of 1.88" (48mm) and a panel hole diameter range of 0.18"–0.19" (4.6mm–4.9mm). Made of Heat Stabilized Nylon 6.6 which satisfies the needs of high temperature applications. They are black in color and come in packages of 500.
Panduit - PUM-049-2S-D30 - Features
- Fir Tree Push Mount Assembly
Specifications
Specifications
Panduit - PUM-049-2S-D30 - Product Categories
- Wire Routing, Management & Protection
- Cable Tie Mounts
Panduit - PUM-049-2S-D30 - Specifications
| Brand Name | Panduit |
|---|---|
| Manufacturer Part Number | PUM-049-2S-D30 |
| Item Description | Pum-049-2S-D30 Fir Tree Tie, Blk, High Heat Pa6.6, 0.19" Max Panel, 7.4"L, 50Lb |
| Application | They Are a Reliable and Cost Effective Solution for Securing Wire Harnesses in The Automotive, Marine, White Goods, Heavy Equipment and Mass Transit-Rail Markets |
| Product Type | Fir Tree Mount with Cable Tie |
| Color | Black |
| Flammability Rating | UL94V-2 |
| Environment | Indoor |
| Material | Heat Stabilized Nylon 6.6 |
| Maximum Compatible Panel Thickness (In.) | 0.19 |
| Maximum Compatible Panel Thickness (mm) | 3 |
| Maximum Operating Temperature (°C) | 115 |
| Maximum Operating Temperature (°F) | 239 |
| Minimum Loop Tensile Strength (N) | 222 |
| Minimum Loop Tensile Strength (lb) | 50 |
| Minimum Operating Temperature (°C) | -60 |
| Minimum Operating Temperature (°F) | -76 |
| Mount Method | Fir Tree Mount |
| Overall Height (In.) | 0.54 |
| Overall Height (mm) | 13.8 |
| Overall Length (In.) | 7.4 |
| Overall Length (mm) | 188 |
| Overall Width (In.) | 0.65 |
| Overall Width (mm) | 50.3 |
| Resistance Properties | Heat Resistant |
Panduit - PUM-049-2S-D30 - Package Information
| UPC | 07498390794 |
|---|---|
| Standard Package Quantity | 500 |
| Standard Package Volume (cf) | 0.3876 |
| Standard Ctn. Quantity | 5000 |
| Standard Ctn. Volume (cf) | 3.8756 |
Panduit - PUM-049-2S-D30 - Videos
| Video 1 | Click to View |
|---|
