Description
Description

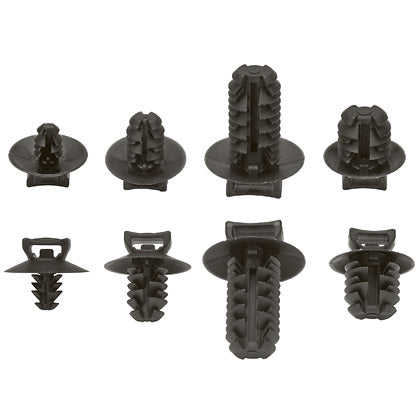

Panduit PUM-071-M30 | Fir Tree Mount, Black, High Heat PA 6.6, 0.67X0.67", PK1000
Cost-effective and reliable wire harness solution. Our fir tree push mounts offer a simple, secure way to organize cables across automotive, marine, heavy equipment, and mass transit applications.
Panduit Cable Tie Mount, Through Hole, Fir Tree Hole Mount, 0.67 in Base Length, Nylon, Black
Panduit - PUM-071-M30 - Features
- Locks securely into position and can be rotated 360 deg, giving you a wider application range than fixed barb designs, also seals against dust and moisture
- Firmly retains a minimum wire gauge of 12 AWG (2 mm Dia) within +/- 10 mm (0.394 in) of the initial installation point, providing a low profile design
- Provide routing and anchoring for wire harnesses, ties significantly reducing harness assembly time
- Meets the needs of Verband der Automobilindustrie (VDA) and Automotive Industry Action Group (AIAG) compliant documentation, allowing parts to be listed in IMDS site ID
- Lock securely into position
- Umbrella tensioning
- Exclusive contoured anvil head
- Provides increased retention and lower insertion force, reducing operator fatigue and improving productivity
- For use with miniature, intermediate and standard cable ties
Specifications
Specifications
Panduit - PUM-071-M30 - Specifications
| Brand Name | Panduit |
|---|---|
| Manufacturer Part Number | PUM-071-M30 |
| Material Description | Nylon 6.6 (Heat-Resistant) |
| Product Type | Cable Tie Mount |
| Application | They Are a Reliable and Cost Effective Solution for Securing Wire Harnesses in The Automotive, Marine, White Goods, Heavy Equipment and Mass Transit-Rail Markets |
| Color | Black |
| Environment | Indoor |
| Material | Nylon 6.6 |
| Material Properties | Heat-Stabilized |
| Maximum Compatible Panel Thickness (In.) | 0.28 |
| Maximum Compatible Panel Thickness (mm) | 7.1 |
| Maximum Operating Temperature (°C) | 115 |
| Maximum Operating Temperature (°F) | 239 |
| Minimum Operating Temperature (°C) | -60 |
| Minimum Operating Temperature (°F) | -76 |
| Minimum Loop Tensile Strength (N) | 264.16 |
| Minimum Loop Tensile Strength (lb) | 10.4 |
| Mount Method | Fir Tree Mount |
| Overall Length (In.) | 0.65 |
| Overall Length (mm) | 16.5 |
| Overall Width (In.) | 0.65 |
| Overall Width (mm) | 16.5 |
| Overall Height (In.) | 0.66 |
| UPC | 07498390791 |
Panduit - PUM-071-M30 - Videos
| Panduit PUM-071-M30 Video 1 | Click to View |
|---|
