Brand: Panduit
|
SKU:
DRC-046644
Panduit PUM-071-M30 | PUM-071-M30 Fir Tree Mount, Black, High Heat PA 6.6, 0.67X0.67", PK1000
Regular price
$206.30
Unit price
Shipping calculated at checkout.
-
Low prices.
Price match guarantee
-
In-House Experts.
We know our products
-
Easy Returns.
Quick & Hassle Free
-
Superior Selection.
Extensive product catalog
Panduit PUM-071-M30 | PUM-071-M30 Fir Tree Mount, Black, High Heat ...
Regular price
$206.30
Unit price
Description
Description
Panduit PUM-071-M30 | PUM-071-M30 Fir Tree Mount, Black, High Heat PA 6.6, 0.67X0.67", PK1000

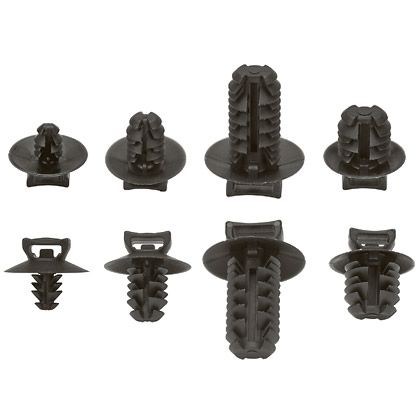

Panduit PUM-071-M30 Fir Tree Push Mounts have a unique alternating barb design that allows it to lock securely into position. They require a panel hole diameter of 0.25 to 0.28" (6.3 to 7.1 mm) for application. For use in indoor and outdoor environments and with miniature, intermediate and standard cable ties. Made of Heat Stabilized Nylon 6.6, are black in color and come in packages of 10.
Specifications
Specifications
Panduit - PUM-071-M30 - Product Categories
- Wire Routing, Management & Protection
- Cable Tie Mounts
Panduit - PUM-071-M30 - Specifications
| Brand Name | Panduit |
|---|---|
| Manufacturer Part Number | PUM-071-M30 |
| Item Description | PUM-071-M30 Fir Tree Mount, Black, High Heat PA 6.6, 0.67X0.67", PK1000 |
| Application | They Are a Reliable and Cost Effective Solution for Securing Wire Harnesses in The Automotive, Marine, White Goods, Heavy Equipment and Mass Transit-Rail Markets |
| Product Type | Cable Tie Mount |
| Color | Black |
| Environment | Indoor |
| Material | Nylon 6.6 |
| Material Properties | Heat-Stabilized |
| Maximum Compatible Panel Thickness (In.) | 0.28 |
| Maximum Compatible Panel Thickness (mm) | 7.1 |
| Maximum Operating Temperature (°C) | 115 |
| Maximum Operating Temperature (°F) | 239 |
| Minimum Operating Temperature (°C) | -60 |
| Minimum Operating Temperature (°F) | -76 |
| Minimum Loop Tensile Strength (N) | 264.16 |
| Minimum Loop Tensile Strength (lb) | 10.4 |
| Mount Method | Fir Tree Mount |
| Overall Height (In.) | 0.66 |
| Overall Height (mm) | 16.9 |
| Overall Length (In.) | 0.65 |
| Overall Length (mm) | 16.5 |
| Overall Width (In.) | 0.65 |
| Overall Width (mm) | 16.5 |
| Resistance Properties | Heat-Resistant |
| Standards Met | Chemical Resistance at 21 ° C (70 ° F): Excellent Resistance to Common Transportation Fluids Including: Ethylene Glycol, Gasoline, Jet Fuel, Hydraulic Fluid, Transmission Fluids and 10% Sodium Chloride Solution, Environmental Compliance: Meets 2000/53/Ec |
| For Use With | Miniature, Intermediate, Standard Cross-Section Ties |
Brand Name - PUM-071-M30 - Package Information
| UPC | 07498390791 |
|---|---|
| Standard Package Quantity | 1000 |
| Standard Package Volume (cf) | 0.1410 |
| Standard Ctn. Quantity | 5000 |
| Standard Ctn. Volume (cf) | 0.7051 |
