Brand: Panduit
|
SKU:
PAN-PUM-100-M30
Panduit PUM-100-M30 | Pum-100-M30 Cable Tie Mount
Regular price
$291.61
Unit price
Shipping calculated at checkout.
-
Low prices.
Price match guarantee
-
In-House Experts.
We know our products
-
Easy Returns.
Quick & Hassle Free
-
Superior Selection.
Extensive product catalog
Panduit PUM-100-M30 | Pum-100-M30 Cable Tie Mount
Regular price
$291.61
Unit price
Brand: Panduit
|
SKU:
PAN-PUM-100-M30
Regular price
$291.61
Unit price
Shipping calculated at checkout.
Description
Description
Panduit PUM-100-M30 | Pum-100-M30 Cable Tie Mount

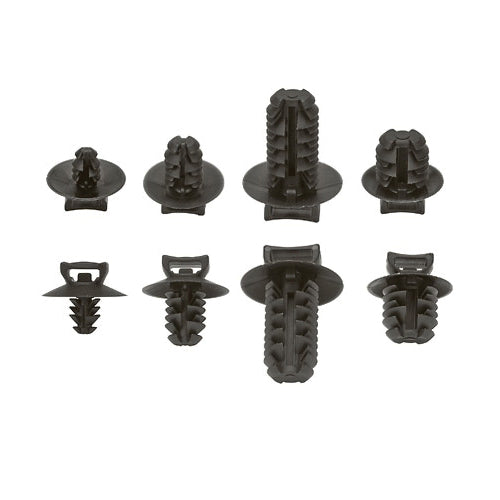

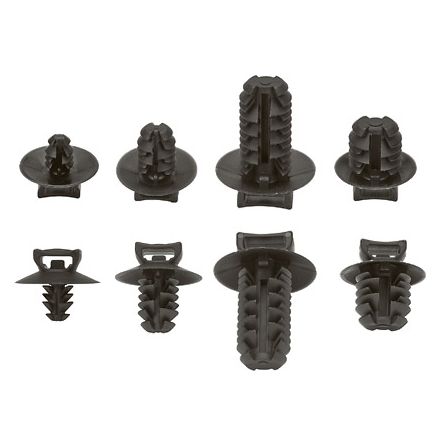

The fir tree push mount is black and requires a panel hole diameter of 0.35 to 0.40" (9.0 to 10.0 mm). It is made of heat-stabilized nylon 6.6, which increases mechanical strength, heat and wear resistance, and stiffness. It comes in packages of 1000.
Panduit - PUM-100-M30 - Features
- Panduit Cable Tie Mount, Through Hole, Fir Tree Hole Mount, 0.67 in Base Length, Nylon, Black
- Locks securely into position and can be rotated 360 deg, giving you a wider application range than fixed barb designs, also seals against dust and moisture
- Firmly retains a minimum wire gauge of 12 AWG (2 mm Dia) within +/- 10 mm (0.394 in) of the initial installation point, providing a low profile design
- Provide routing and anchoring for wire harnesses, ties significantly reducing harness assembly time
- Meets the needs of Verband der Automobilindustrie (VDA) and Automotive Industry Action Group (AIAG) compliant documentation, allowing parts to be listed in IMDS site ID
- Lock securely into position
- Umbrella tensioning
- Exclusive contoured anvil head
- Provides increased retention and lower insertion force, reducing operator fatigue and improving productivity
- For use with miniature, intermediate and standard cable ties
Specifications
Specifications
Panduit - PUM-100-M30 - Product Categories
- Wire Routing, Management & Protection
- Cable Tie Mounts
Panduit - PUM-100-M30 - Specifications
| Brand Name | Panduit |
|---|---|
| Manufacturer Part Number | PUM-100-M30 |
| Item Description | Pum-100-M30 Cable Tie Mount |
| Application | They Are a Reliable and Cost Effective Solution for Securing Wire Harnesses in The Automotive, Marine, White Goods, Heavy Equipment and Mass Transit-Rail Markets |
| Product Type | Cable Tie Mount |
| Color | Black |
| Environment | Indoor |
| Material | Heat Stabilized Nylon 6.6 |
| Maximum Compatible Panel Thickness (In.) | 0.275 |
| Maximum Compatible Panel Thickness (mm) | 7 |
| Maximum Operating Temperature (°C) | 115 |
| Maximum Operating Temperature (°F) | 239 |
| Minimum Loop Tensile Strength (N) | 222 |
| Minimum Loop Tensile Strength (lb) | 50 |
| Minimum Operating Temperature (°C) | -60 |
| Minimum Operating Temperature (°F) | -76 |
| Mount Method | Fir Tree Mount |
| Overall Height (In.) | 0.66 |
| Overall Height (mm) | 16.9 |
| Overall Length (In.) | 0.64 |
| Overall Length (mm) | 16.2 |
| Overall Width (In.) | 0.64 |
| Overall Width (mm) | 16.2 |
| Resistance Properties | Heat Resistant |
| Standards Met | RoHS Compliant |
| For Use With | Miniature, Intermediate, Standard Cross-Section Ties |
| MPN: | PUM-100-M30 |
| Base Length: | 0.67 in |
| Color: | Black |
| Material: | Nylon |
| Mounting Type: | Fir Tree Hole |
| Type: | Through Hole |
Panduit - PUM-100-M30 - Package Information
| UPC | 07498390793 |
|---|---|
| Standard Package Quantity | 1000 |
| Standard Package Volume (cf) | 0.1410 |
| Standard Ctn. Quantity | 5000 |
| Standard Ctn. Volume (cf) | 0.7051 |
