Brand: Panduit
|
SKU:
367302

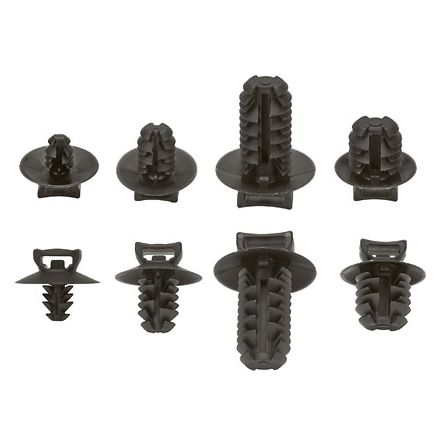

Panduit PUM-925-M30 | PUM-925-M30 Fir Tree Mount, Black, High Heat PA 6.6, 0.77x1.05", PK1000
Regular price
$243.21
Unit price
Shipping calculated at checkout.
-
Low prices.
Price match guarantee
-
In-House Experts.
We know our products
-
Easy Returns.
Quick & Hassle Free
-
Superior Selection.
Extensive product catalog
Panduit PUM-925-M30 | PUM-925-M30 Fir Tree Mount, Black, High Heat ...
Regular price
$243.21
Unit price
Description
Description
Panduit PUM-925-M30 | PUM-925-M30 Fir Tree Mount, Black, High Heat PA 6.6, 0.77x1.05", PK1000
The fir tree push mount is black and requires a panel hole diameter of 0.34 to 0.36" (8.8 to 9.3mm). It is made of heat-stabilized nylon 6.6, which increases mechanical strength, heat and wear resistance, and stiffness. It comes in packages of 1000.
Panduit - PUM-925-M30 - Features
- Fir Tree Push Mount
- Unique alternating barb design
- Lock securely into position
- Umbrella tensioning
- Exclusive contoured anvil head
- Material: Heat Stabilized Nylon 6.6
Specifications
Specifications
Panduit - PUM-925-M30 - Product Categories
- Wire Routing, Management & Protection
- Cable Tie Mounts
Panduit - PUM-925-M30 - Specifications
| Brand Name | Panduit |
|---|---|
| Manufacturer Part Number | PUM-925-M30 |
| Item Description | PUM-925-M30 Fir Tree Mount, Black, High Heat PA 6.6, 0.77x1.05", PK1000 |
| Application | They Are a Reliable and Cost Effective Solution for Securing Wire Harnesses in The Automotive, Marine, White Goods, Heavy Equipment and Mass Transit-Rail Markets |
| Product Type | Cable Tie Mount |
| Color | Black |
| Environment | Indoor |
| Material | Heat Stabilized Nylon 6.6 |
| Maximum Compatible Panel Thickness (In.) | 0.62 |
| Maximum Compatible Panel Thickness (mm) | 16 |
| Maximum Operating Temperature (°C) | 115 |
| Maximum Operating Temperature (°F) | 239 |
| Minimum Operating Temperature (°C) | -60 |
| Minimum Operating Temperature (°F) | -76 |
| Mount Method | Fir Tree Mount |
| Overall Height (In.) | 1.05 |
| Overall Height (mm) | 26.7 |
| Overall Length (In.) | 0.77 |
| Overall Length (mm) | 19.6 |
| Overall Width (In.) | 0.77 |
| Overall Width (mm) | 19.6 |
| Resistance Properties | Heat Resistant |
| Standards Met | RoHS Compliant |
| For Use With | Miniature, Intermediate, Standard, Light Heavy Cross-Section Ties |
Panduit - PUM-925-M30 - Package Information
| UPC | 07498390792 |
|---|---|
| Standard Package Quantity | 1000 |
| Standard Package Volume (cf) | 0.2652 |
| Standard. Ctn. Quantity | 5000 |
| Standard. Ctn. Volume (cf) | 1.3262 |
Panduit - PUM-925-M30 - Videos
| Video 1 | Click to View |
|---|
