Panduit PUO6C04BL-CEG | Copper Cable, Cat 6, 23 AWG, U/UTP, Outdoor...
Description
Description

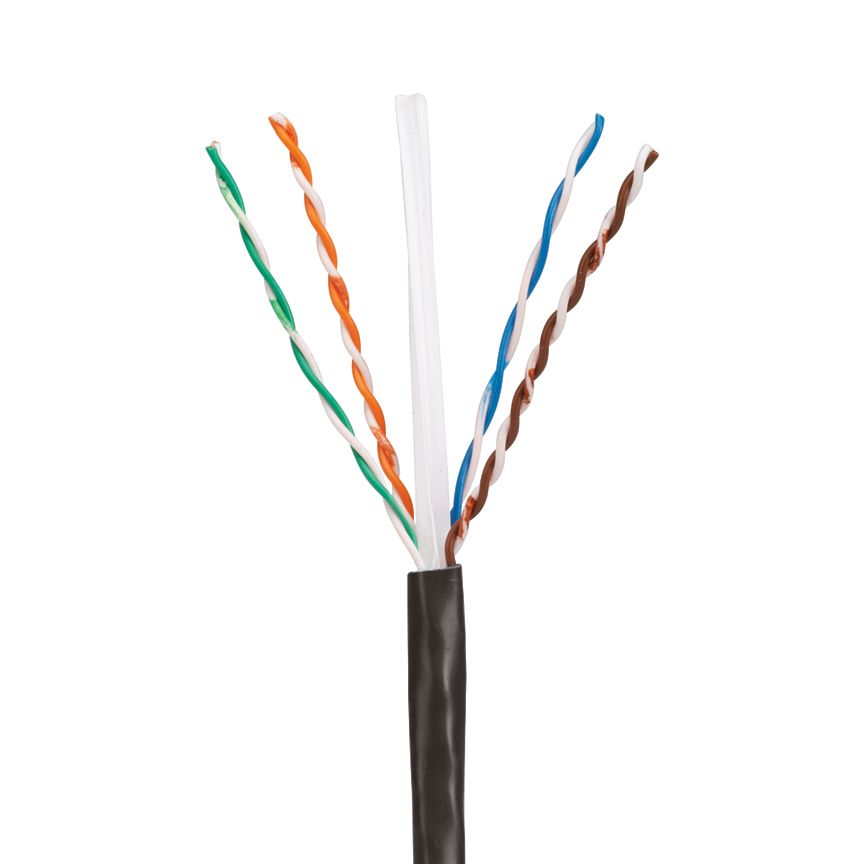

The TX6 U/UTP Outside Plant (OSP) Copper Cable is constructed of 23 AWG copper conductors with PE insulation. The cable has a gel-filled construction to prevent moisture migration in underground and wet applications. The conductors are twisted in pairs and covered by a UV-resistant and abrasion-resistant HDPE flame-retardant jacket. This cable is for duct and conduit installations only.
Panduit TX6 U/UTP Outside Plant - Bulk cable - 1000 ft - UTP - CAT 6 - solid - black - PUO6C04BL-CEG.
Specifications
Specifications
Panduit - PUO6C04BL-CEG - Product Categories
- Copper Systems
- Enterprise/Data Center Copper Cable
Panduit - PUO6C04BL-CEG - Specifications
| Brand Name | Panduit |
|---|---|
| Manufacturer Part Number | PUO6C04BL-CEG |
| Item Description | Copper Cable, Cat 6, 23 AWG, U/UTP, Outdoor, Black |
| Note | Available in Asia Pacific, Latin America, EMEA and North America |
| Environment | Outdoor |
| Performance Level | Category 6 |
| Cable Construction | U/UTP |
| Flammability Rating | Outdoor (OSP) |
| EuroClass Rating | Fca |
| Resistance Properties | UV Resistant |
| Jacket Material | High Density Polyethylene |
| Nominal Cable Outside Diameter (In.) | 0.262 |
| Nominal Cable Outside Diameter (mm) | 6.7 |
| Maximum Operating Temperature (°C) | 80 |
| Maximum Operating Temperature (°F) | 176 |
| Minimum Operating Temperature (°C) | -40 |
| Minimum Operating Temperature (°F) | -40 |
| Maximum Installation Temperature (°C) | 60 |
| Maximum Installation Temperature (°F) | 140 |
| Minimum Installation Temperature (°C) | -30 |
| Minimum Installation Temperature (°F) | -22 |
| Sub Brand | Pan-Net |
| Maximum Installation Tension (lb) | 25 |
| Maximum Installation Tension (N) | 110 |
| Bend Radius (In.) | 1.05 |
| Bend Radius (mm) | 26 |
| Number of Pairs | 4 |
| Conductor Material | Copper |
| Conductor Type | Solid |
| Overall Length (m) | 305 |
| Conductor Gauge (AWG) | 23 |
| Insulation Material | Polyolefin |
| Insulation Diameter (In.) | 0.043 |
| Insulation Diameter (mm) | 1.09 |
| Maximum Voltage (V) | 80 |
| Standards Met | Exceeds ANSI/TIA-568.2-D Category 6 and ISO 11801 Class E, IEC 61156-5, IEC 60794-1-2F5 Method B Water Prevention requirement, EN50575: Euroclass Fca, meets IEEE 802.3af, IEEE 802.3at and IEEE 802.3bt for PoE applications, RoHS Compliant. |
| Color | Black |
| Overall Length (ft.) | 1000 |
| Packaging Type | Reel |
| Product Type | Copper Cable |
| EuroClass Flame Rating | Fca |
Panduit - PUO6C04BL-CEG - Package Information
| UPC | 61305616960 |
|---|---|
| Standard Package Quantity | 1 |
| Standard Package Volume (cf) | 2.0720 |
| Standard Ctn. Quantity | 18 |
| Standard Ctn. Volume (cf) | 37.2955 |
