Brand: Panduit
|
SKU:
CMP00424PND7U06-FT
Panduit PUP6004BU-W | Copper Cable, Cat 6, 23 AWG, UTP, CMP, Blue
Regular price
$1.70
Unit price
Shipping calculated at checkout.
-
Low prices.
Price match guarantee
-
In-House Experts.
We know our products
-
Easy Returns.
Quick & Hassle Free
-
Superior Selection.
Extensive product catalog
Panduit PUP6004BU-W | Copper Cable, Cat 6, 23 AWG, UTP, CMP, Blue
Regular price
$1.70
Unit price
Brand: Panduit
|
SKU:
CMP00424PND7U06-FT
Regular price
$1.70
Unit price
Shipping calculated at checkout.
Description
Description
Panduit PUP6004BU-W | Copper Cable, Cat 6, 23 AWG, UTP, CMP, Blue

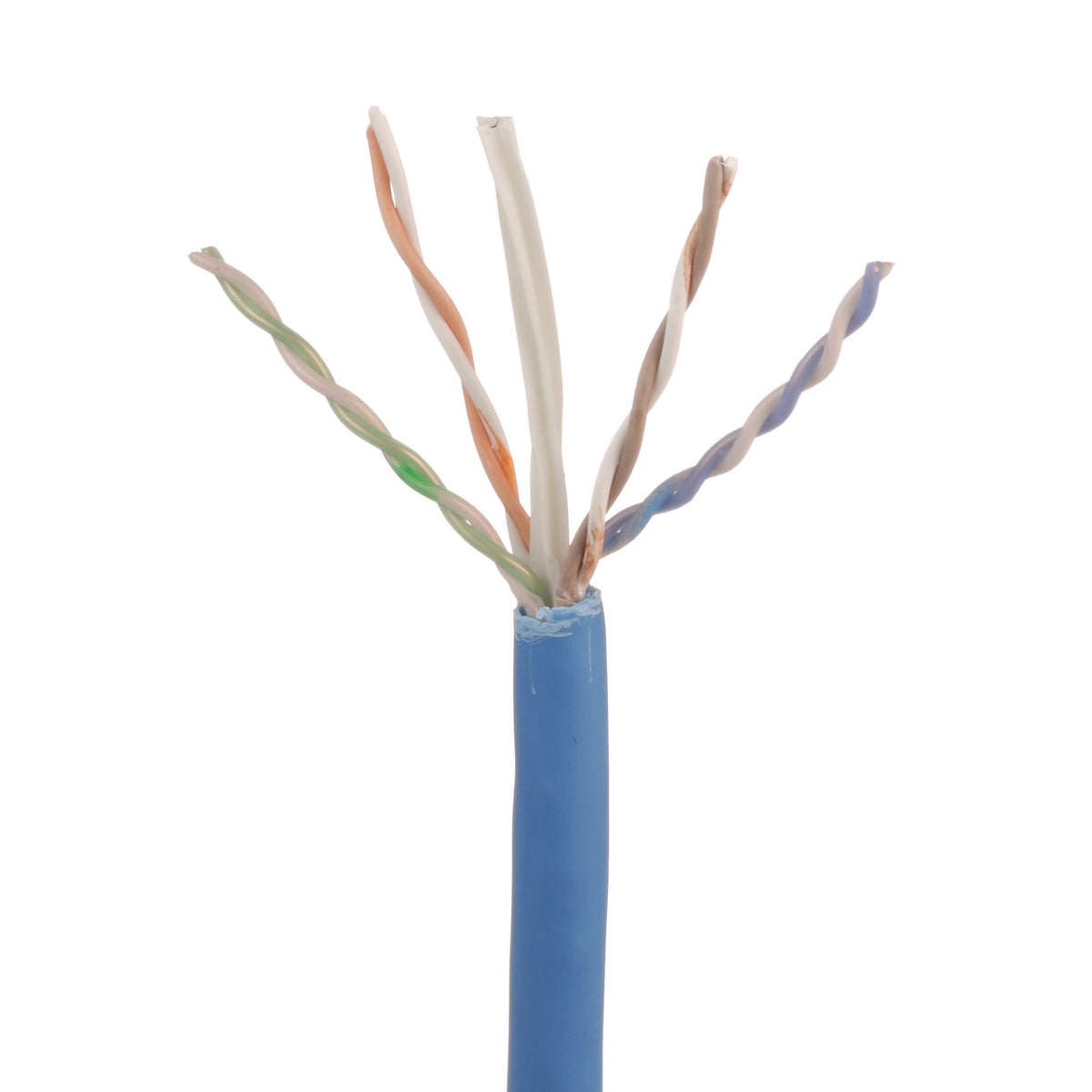

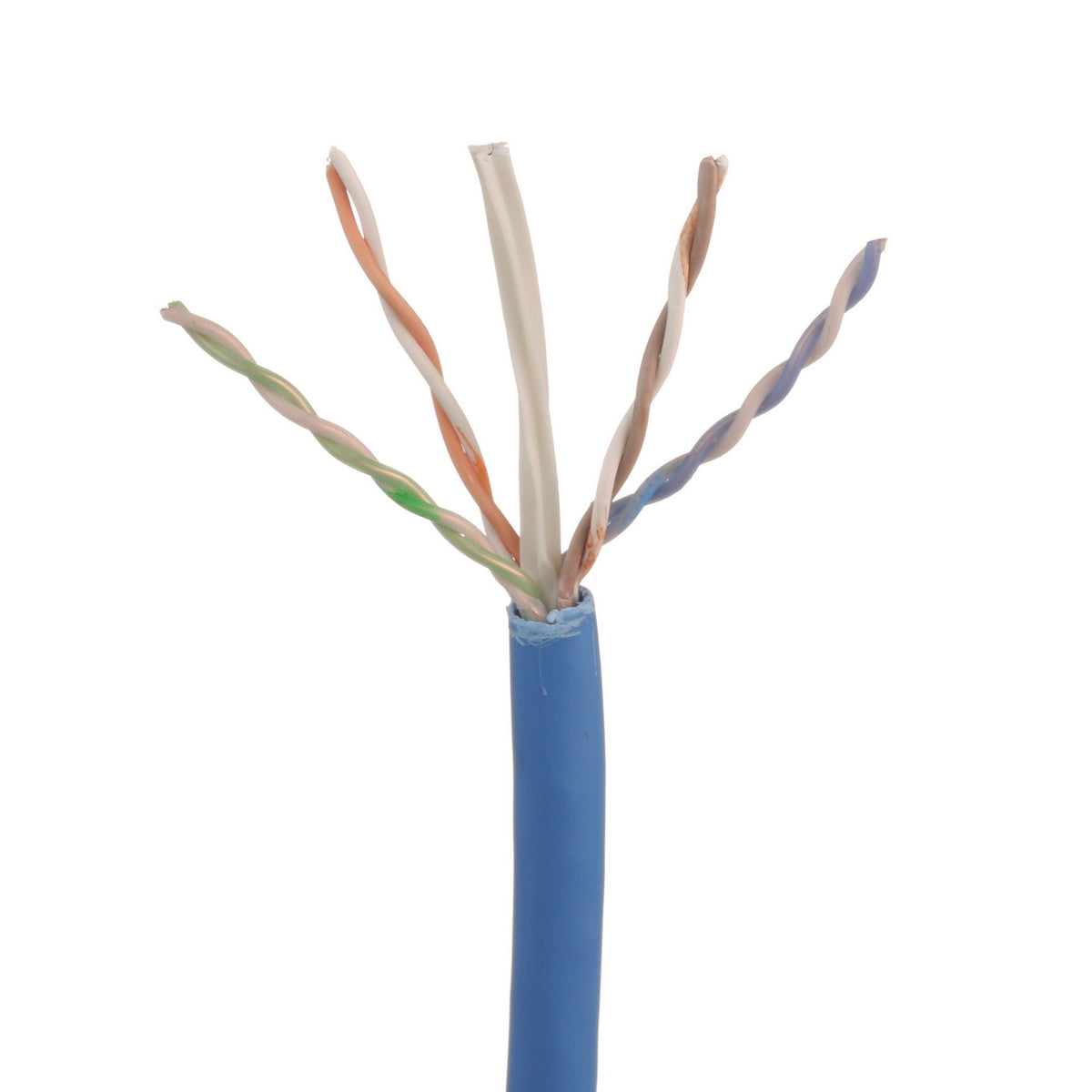

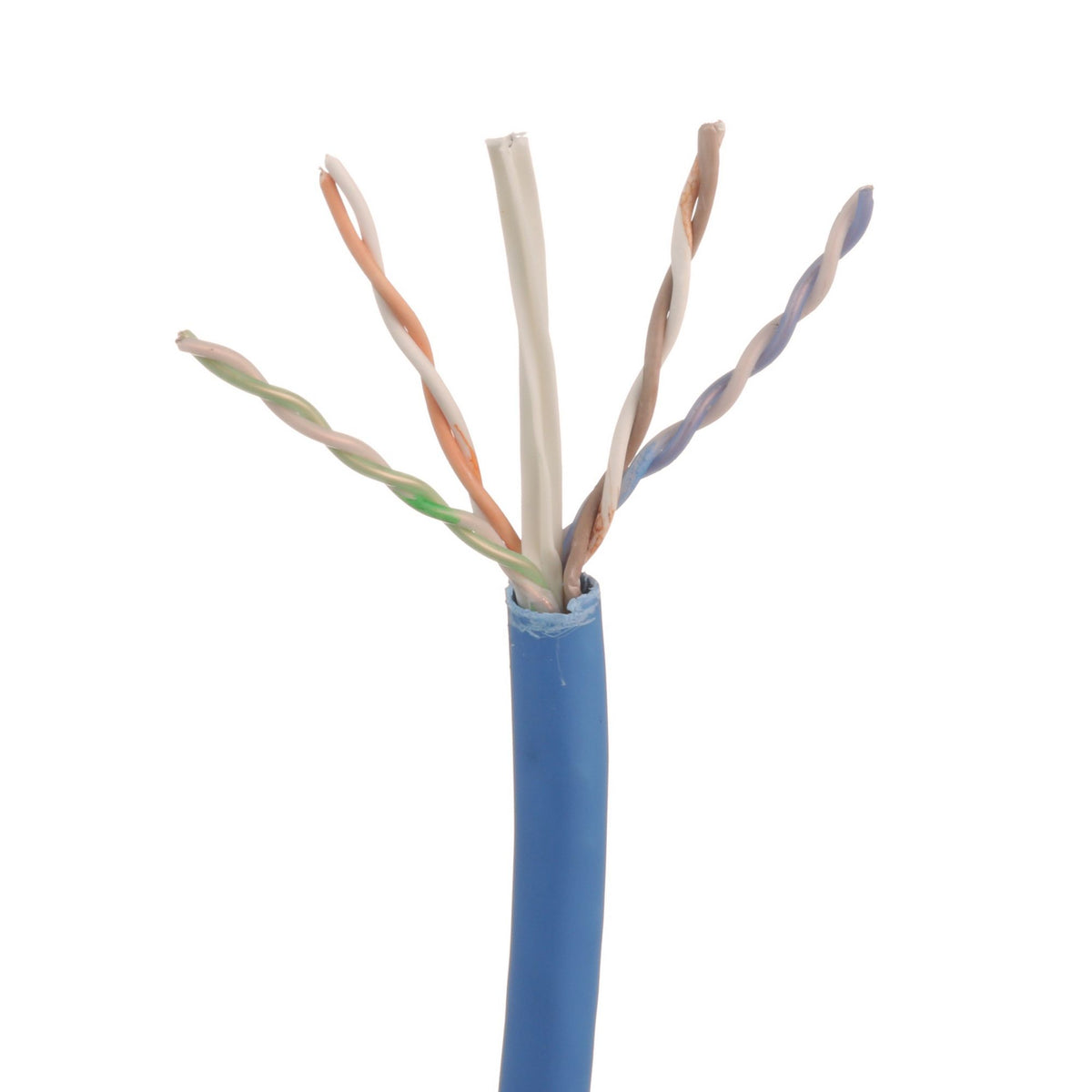

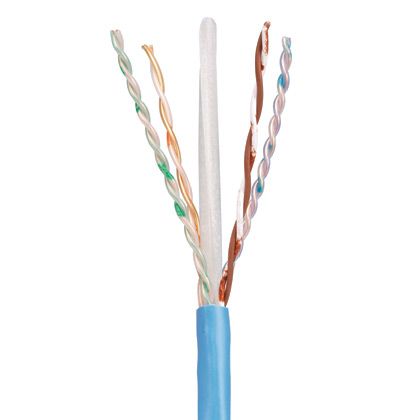

The TX6000 Enhanced Cat 6 U/UTP copper cable is constructed of 23 AWG copper conductors with FEP/HDPE insulation. The conductors are twisted in pairs and separated by a cross divider. All four pairs are surrounded by a PVC flame-retardant jacket. The blue, plenum (CMP) cable is supplied 1000 feet (305 meters) to an easy pay-out carton.
Panduit PUP6004BU-W - CABLECMP CAT6 - 23-4P UTP-CMP SOL BC CAT6 IP5
Specifications
Specifications
Panduit - PUP6004BU-W - Product Categories
- Copper Systems
- Enterprise/Data Center Copper Cable
Panduit - PUP6004BU-W - Specifications
| Brand Name | Panduit |
|---|---|
| Manufacturer Part Number | PUP6004BU-W |
| Item Description | Copper Cable, Cat 6, 23 AWG, UTP, CMP, Blue |
| Note | Available in North America |
| Environment | Indoor |
| Performance Level | Category 6 |
| Cable Construction | U/UTP |
| Flammability Rating | Plenum (CMP) |
| Resistance Properties | Flame Retardant |
| Jacket Material | Polyvinyl Chloride (PVC) |
| Nominal Cable Outside Diameter (In.) | 0.225 |
| Nominal Cable Outside Diameter (mm) | 5.7 |
| Maximum Operating Temperature (°C) | 75 |
| Maximum Operating Temperature (°F) | 167 |
| Minimum Operating Temperature (°C) | -20 |
| Minimum Operating Temperature (°F) | -4 |
| Maximum Installation Temperature (°C) | 50 |
| Maximum Installation Temperature (°F) | 122 |
| Minimum Installation Temperature (°C) | 0 |
| Minimum Installation Temperature (°F) | 32 |
| Sub Brand | Pan-Net |
| Maximum Installation Tension (lb) | 25 |
| Maximum Installation Tension (N) | 110 |
| Bend Radius (In.) | 0.9 |
| Bend Radius (mm) | 22 |
| Number of Pairs | 4 |
| Conductor Material | Copper |
| Conductor Type | Solid |
| Overall Length (m) | 305 |
| Conductor Gauge (AWG) | 23 |
| Insulation Material | FEP |
| Insulation Diameter (In.) | 0.039 |
| Insulation Diameter (mm) | 0.99 |
| Maximum Voltage (V) | 80 |
| Standards Met | Exceeds ANSI/TIA-568.2-D Category 6 and ISO 11801 Class E with Channel Headroom Guarantee, NFPA 262 and CSA FT-6, meets IEEE 802.3af, IEEE 802.3at and IEEE 802.3bt for PoE applications, RoHS Compliant. |
| Color | Blue |
| Overall Length (ft.) | 1000 |
| Packaging Type | Easy Payout Carton |
| Product Type | Copper Cable |
Panduit - PUP6004BU-W - Package Information
| UPC | 07498366903 |
|---|---|
| Standard Package Quantity | 1000 |
| Standard Package Volume (cf) | 1.3037 |
| Standard Ctn. Quantity | 36000 |
| Standard Ctn. Volume (cf) | 46.9336 |
