Panduit PUP6004WH-W | Copper Cable Cat 6 23 Awg Utp Cmp White
Description
Description

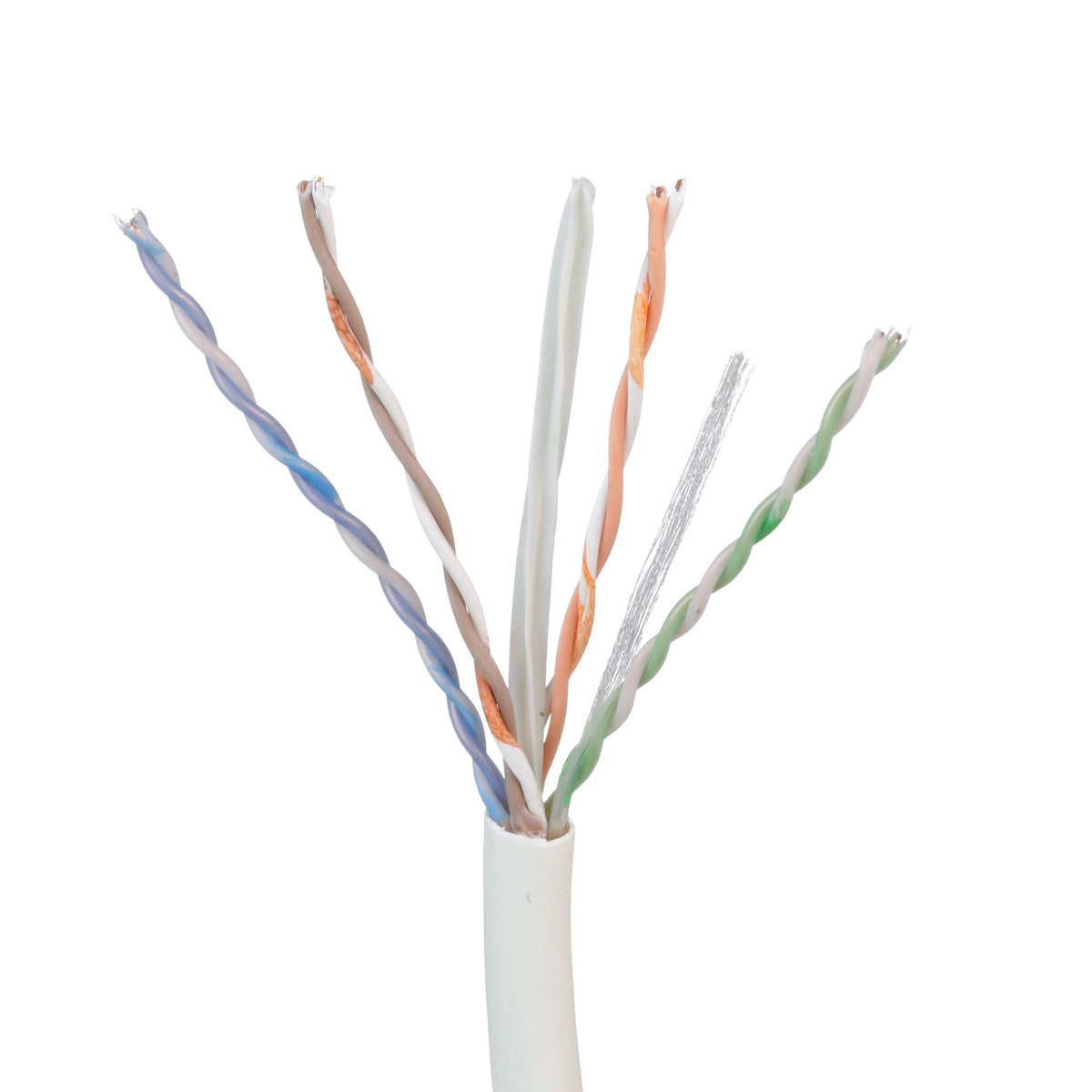

The TX6000 Enhanced Cat 6 U/UTP copper cable is constructed of 23 AWG copper conductors with FEP/HDPE insulation. The conductors are twisted in pairs and separated by a cross divider. All four pairs are surrounded by a PVC flame-retardant jacket. The w hite, plenum (CMP) cable is supplied 1,000 feet (305 meters) to an easy pay-out carton.
Tech Info: Exceeds ANSI/TIA-568.2-D Category 6 and ISO 11801 Class E with Channel Headroom Guarantee, NFPA 262 and CSA FT-6, meets IEEE 802.3af, IEEE 802.3at and IEEE 802.3bt for PoE applications, RoHS Compliant.
Specifications
Specifications
Panduit - PUP6004WH-W - Specifications
| Category | Category 6 |
|---|---|
| Conductor Type | Solid |
| Conductor Size | 23 Awg (American Wire Gauge) |
| Conductor/Pair Count | 4 Pair |
| Fire Rating | Plenum |
| Jacket Color | White |
| Type | Data |
| Shielded | U/Utp - Unshielded Twisted Pair |
| UNSPSC Code | 26121609 |
