Brand: Panduit
|
SKU:
CMP-00424PND-7ERB-06
Panduit PUP6504BU-UY | Tx6500 Copper Cable, Cat 6, 23 Awg, U/Utp, Cmp-Lp, Blue
Regular price
$3.03
Unit price
Shipping calculated at checkout.
-
Low prices.
Price match guarantee
-
In-House Experts.
We know our products
-
Easy Returns.
Quick & Hassle Free
-
Superior Selection.
Extensive product catalog
Panduit PUP6504BU-UY | Tx6500 Copper Cable, Cat 6, 23 Awg, U/Utp, C...
Regular price
$3.03
Unit price
Brand: Panduit
|
SKU:
CMP-00424PND-7ERB-06
Regular price
$3.03
Unit price
Shipping calculated at checkout.
Description
Description

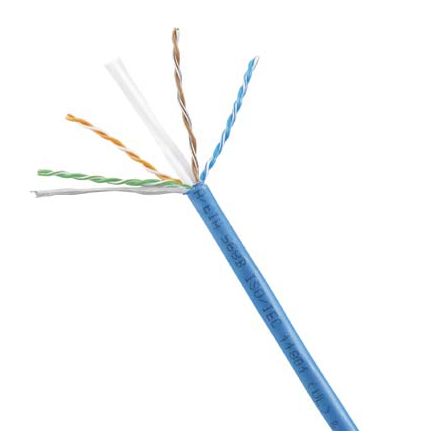

Panduit PUP6504BU-UY | Tx6500 Copper Cable, Cat 6, 23 Awg, U/Utp, Cmp-Lp, Blue
The TX6500 Cat 6 U/UTP Plenum copper cable is constructed of 23 AWG copper conductors with FEP/polyolefin insulation. The copper conductors shall be twisted in pairs and separated by a cross divider. All four pairs shall be covered by a flame retardant PVC (CMP), Blue jacket. Packaged 1000 ft./305m on a reel in a box.
Panduit - PUP6504BU-UY - Features
- Exceeds requirements of ANSI/TIA/EIA-568-C.2 Category 6 and ISO 11801 2nd Edition Class E channel standards
- Exceeds requirements of ANSI/TIA/EIA-568-C.2 and IEC 61156-5 Category 6 component standards
- Reduced attenuation maximizes the amount of signal that reaches the receiver, increasing bandwidth
- Third party tested to comply with ANSI/TIA/EIA-568-B.2-1
- Cable diameter: 0.264 in. (6.7mm) nominal
- Installation temperature range: 32F to 122F (0C to 50C)
- Operating temperature range: 14F to 140F (-10C to 60C)
- Descending length cable markings enable easy identification of remaining cable which reduces installation time and cable scrap
- Cable supplied in an easy payout reel-in-a-box
Specifications
Specifications
Panduit - PUP6504BU-UY - Product Categories
- Copper Systems
- Enterprise/Data Center Copper Cable
Panduit - PUP6504BU-UY - Specifications
| Brand Name | Panduit |
|---|---|
| Manufacturer Part Number | PUP6504BU-UY |
| Item Description | Tx6500 Copper Cable, Cat 6, 23 Awg, U/Utp, Cmp-Lp, Blue |
| Note | Available in North America |
| Environment | Indoor |
| Performance Level | Category 6 |
| Cable Construction | U/UTP |
| Flammability Rating | CMP |
| LP Rating | 0.5A |
| Sub Brand | Pan-Net |
| Number of Pairs | 4 |
| Conductor Material | Copper |
| Conductor Type | Solid |
| Conductor Gauge (AWG) | 23 |
| Color | Blue |
| Product Type | Copper Cable |
Panduit - PUP6504BU-UY - Package Information
| UPC | 07498305821 |
|---|---|
| Standard Package Quantity | 1000 |
| Standard Package Volume (cf) | 2.2407 |
| Standard Ctn. Quantity | 27000 |
| Standard Ctn. Volume (cf) | 60.5000 |
