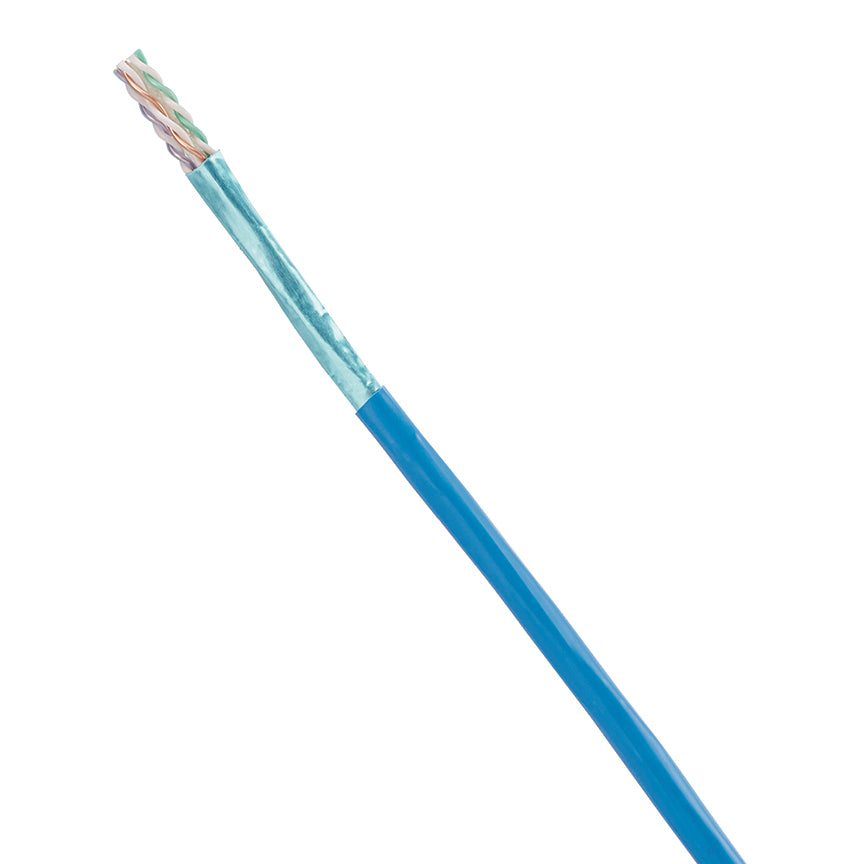

Panduit PUP6AV04GR-G | Copper Cable | UPC - 61305636810
Regular price
$1.72
Unit price
Brand: Panduit
|
SKU:
CMP-00423PND-6AVM-04
Regular price
$1.72
Unit price
Description
Description
Panduit PanNet TX6A 10Gig Copper Cable, Cat 6a UTP Plenum, 80 VAC, 4 Pair Conductors, Solid Conductor, 23 AWG Conductor, 1/4 in OD, 1000 ft Length, <9.38 Ohm Resistance, FEP/PE Insulation, FEP Jacket, Green Jacket, -4 to 194 deg F
Features + Benefits
- Copper conductors shall be twisted in pairs and separated by a cross divider, all four pairs shall be surrounded by a metallic Vari-MaTriX tape cut into segments of varying length and a flame retardant jacket
- The Vari-MaTriX tape shall minimize the cable diameter and suppress the effects of alien crosstalk while retaining UTP electromagnetic interference immunity
- Innovative cable design shall provide installation flexibility as cables can be routed in tight bundles through pathways and spaces
- Compatible with components of the TX6A-SD 10Gig UTP copper cabling system with MaTriX technology (70 m solution) for increased design flexibility
- Provides the highest worst case margins above the industry standard for both electrical and alien crosstalk performance
- Improves fill capacity, cable management, reduces required bend radius and allows efficient use of pathways and spaces
- Allows operation in 194 deg F ambient environment providing error-free performance in high density cabinets and large cable bundles running PoE+ or PoE++ applications
- All testing and headroom based on 48-port/1RU panels
- Easy identification of remaining cable reduces installation time and cable scrap
- <9.38 Ohm per 328 ft
Panduit PUP6AV04GR-G | Copper Cable | UPC - 61305636810 Key Specs
| Environment | Indoor |
| Performance Level | Category 6A |
| Cable Construction | U/UTP |
| Flammability Rating | Plenum (CMP) |
| LP Rating | LP (0.7A) |
| Resistance Properties | Flame Retardant |
| Jacket Material | Polyvinyl Chloride |
| Nominal Cable Outside Diameter (In.) | 0.25 |
| Nominal Cable Outside Diameter (mm) | 6.4 |
| Maximum Operating Temperature (°C) | 105 |
| Maximum Operating Temperature (°F) | 221 |
| Minimum Operating Temperature (°C) | -20 |
| Minimum Operating Temperature (°F) | -4 |
| Maximum Installation Temperature (°C) | 60 |
| Maximum Installation Temperature (°F) | 140 |
| Minimum Installation Temperature (°F) | 32 |
| Sub Brand | PanNet |
| Maximum Installation Tension (lb) | 25 |
| Maximum Installation Tension (N) | 110 |
Panduit PUP6AV04GR-G | Copper Cable | UPC - 61305636810 Data Sheets
| Videos | Vari-Matrix, The Smallest Category 6A Cable | Download and View |
| White Papers | The Advantages of a Varying Length Segmented Foil Tape in Category 6A UTP Cable | Download and View |
| Technology Briefs | Impact of 2017 National Electric Code on Power over Ethernet Cabling | Download and View |
Panduit PUP6AV04GR-G | Copper Cable | UPC - 61305636810 Environmental Information
| Panduit's RoHS Statement | Download and View |
