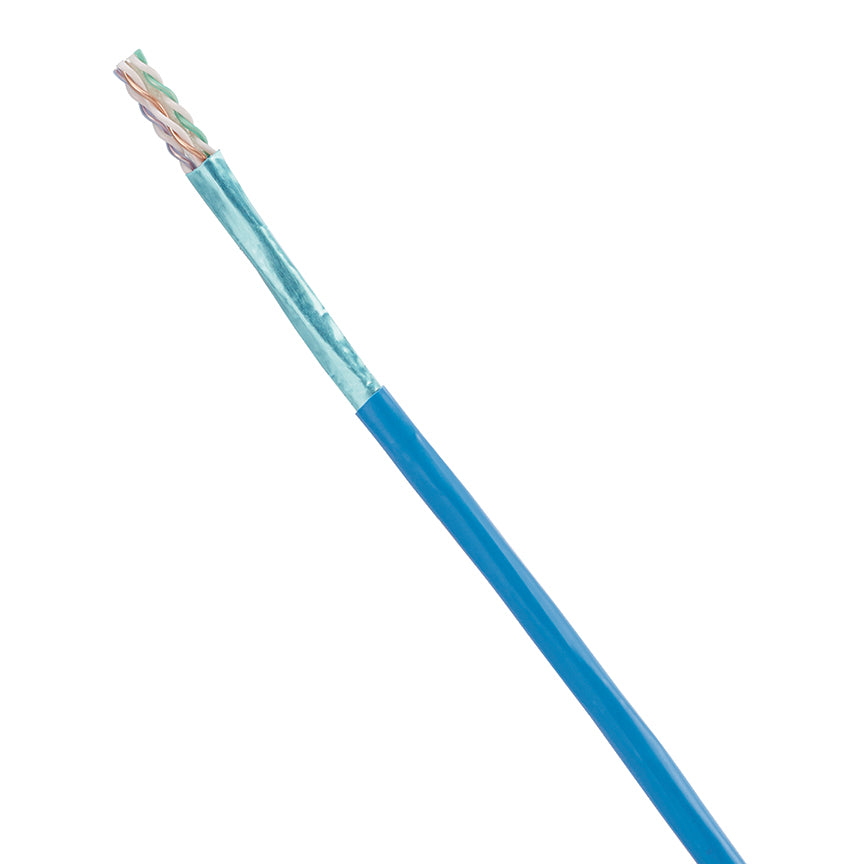

Panduit PUR6AV04BL-G | Copper Cable | UPC - 61305656743

Category 6A/class EA cable shall be constructed of 23 AWG copper conductors with HDPE low smoke zero halogen (LSZH), FEP (CMP) or PE riser (CMR). The copper conductors shall be twisted in pairs and separated by a cross-divider. All four pairs shall be surrounded by a metallic Vari-MaTriX tape cut into segments of varying length and a flame-retardant jacket. The Vari-MaTriX tape shall minimize the cable diameter and suppress the effects of alien crosstalk while retaining UTP electromagnetic interference immunity. The innovative cable design shall provide installation flexibility as cables can be routed in tight bundles through pathways and spaces.

Panduit PanNet TX6A 10Gig Riser Cable, Cat 6a, 80 V, 4 Pairs Conductors, U/UTP Solid Copper Conductor, 23 AWG Conductor, 0.26 in OD, 1000 ft Length, <9.38 Ohm/328 ft Resistance, HDPE Jacket, Black Jacket, -4 to 140 deg F

Features + Benefits

• Vari-MaTriX technology - Best-in-class cable diameter delivers superior PSANEXT and PSAACRF suppression while retaining UTP EMI immunity
• Interoperable - Compatible with components of the TX6A-SD 10Gig UTP copper cabling system with MaTriX technology (70 m solution) for increased design flexibility
• Superior headroom warranty provides the highest margins above the industry standard for both electrical and alien crosstalk performance
• Small, round cable design improves fill capacity, cable management, reduces required bend radius and allows efficient use of pathways and spaces
• Extended temperature range allows operation in 75 deg C (167 deg F) to 90 deg C (194 deg F) ambient environment providing error-free performance in high-density cabinets and large cable bundles running PoE+ or PoE++ applications
• Highest density - All testing and headroom based on 48-port/1RU panels
• Descending length cable markings easy identification of remaining cable to reduce installation time and cable scrap

Panduit PUR6AV04BL-G | Copper Cable | UPC - 61305656743 Key Specs

---

Panduit PUR6AV04BL-G | Copper Cable | UPC - 61305656743 Data Sheets

Videos | Vari-Matrix, The Smallest Category 6A Cable	Download and View
White Papers | The Advantages of a Varying Length Segmented Foil Tape in Category 6A UTP Cable	Download and View
Guaranteed Performance Beyond the Standards TX6A UTP Vari-MaTriX Copper Cabling Systems	Download and View

---

Panduit PUR6AV04BL-G | Copper Cable | UPC - 61305656743 Environmental Information

Panduit's RoHS Statement

Download and View
