Brand: Panduit
|
SKU:
CM-00423PND-6U-06
Panduit PUR6C04BU-U | Copper Cable, Cat 6, 23 Awg, U/Utp, Cmr, Blue
Regular price
$1.47
Unit price
Shipping calculated at checkout.
-
Low prices.
Price match guarantee
-
In-House Experts.
We know our products
-
Easy Returns.
Quick & Hassle Free
-
Superior Selection.
Extensive product catalog
Panduit PUR6C04BU-U | Copper Cable, Cat 6, 23 Awg, U/Utp, Cmr, Blue
Regular price
$1.47
Unit price
Brand: Panduit
|
SKU:
CM-00423PND-6U-06
Regular price
$1.47
Unit price
Shipping calculated at checkout.
Description
Description
Panduit PUR6C04BU-U | Copper Cable, Cat 6, 23 Awg, U/Utp, Cmr, Blue

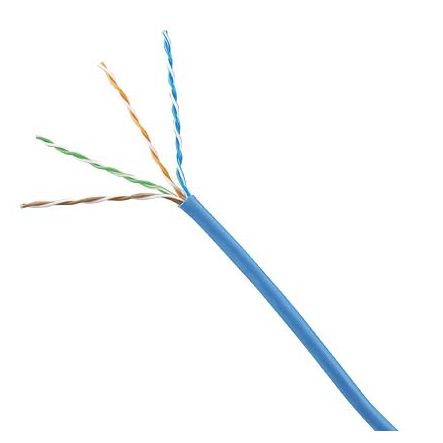

The TX6 Cat 6 U/UTP copper cable is constructed of 23 AWG copper conductors with HDPE insulation. The copper conductors are twisted in pairs . All four pairs are surrounded by a PVC flame-retardant jacket. The blue, riser (CMR) cable is supplied 1,000 feet (305 meters) to an easy pay-out carton.
Specifications
Specifications
Panduit - PUR6C04BU-U - Product Categories
- Copper Systems
- Enterprise/Data Center Copper Cable
- https://www.panduit.com/content/dam/panduit/en/products/media/9/99/999/8999/110408999.pdf
Panduit - PUR6C04BU-U - Specifications
| Brand Name | Panduit |
|---|---|
| Manufacturer Part Number | PUR6C04BU-U |
| Item Description | Copper Cable, Cat 6, 23 Awg, U/Utp, Cmr, Blue |
| Note | Available in North America |
| Environment | Indoor |
| Performance Level | Category 6 |
| Cable Construction | U/UTP |
| Flammability Rating | CMR |
| Resistance Properties | Flame Retardant |
| Jacket Material | Polyvinyl Chloride (PVC) |
| Nominal Cable Outside Diameter (In.) | 0.21 |
| Nominal Cable Outside Diameter (mm) | 5.3 |
| Maximum Operating Temperature (°C) | 75 |
| Maximum Operating Temperature (°F) | 167 |
| Minimum Operating Temperature (°C) | -20 |
| Minimum Operating Temperature (°F) | -4 |
| Maximum Installation Temperature (°C) | 50 |
| Maximum Installation Temperature (°F) | 122 |
| Minimum Installation Temperature (°C) | 0 |
| Minimum Installation Temperature (°F) | 32 |
| Sub Brand | Pan-Net |
| Maximum Installation Tension (lb) | 25 |
| Maximum Installation Tension (N) | 110 |
| Bend Radius (In.) | 0.84 |
| Bend Radius (mm) | 21 |
| Number of Pairs | 4 |
| Conductor Material | Copper |
| Conductor Type | Solid |
| Overall Length (m) | 305 |
| Conductor Gauge (AWG) | 23 |
| Insulation Material | Polyolefin |
| Insulation Diameter (In.) | 0.039 |
| Insulation Diameter (mm) | 0.99 |
| Maximum Voltage (V) | 80 |
| Standards Met | Exceeds ANSI/TIA-568.2-D Category 6 and ISO 11801 Class E with Channel Headroom Guarantee, meets IEEE 802.3af, IEEE 802.3at and IEEE 802.3bt for PoE applications, UL 1666 and CSA FT-4, RoHS Compliant. |
| Color | Blue |
| Overall Length (ft.) | 1000 |
| Packaging Type | Easy Payout Carton |
| Product Type | Copper Cable |
Panduit - PUR6C04BU-U - Package Information
| UPC | 07498322094 |
|---|---|
| Standard Package Quantity | 1000 |
| Standard Package Volume (cf) | 1.6806 |
| Standard Ctn. Quantity | 36000 |
| Standard Ctn. Volume (cf) | 60.5000 |
