Brand: Panduit
|
SKU:
10044837
Panduit PV10-10F-E | Loose Piece Terminal | UPC - 07498334424
Regular price
$26.64
Unit price
Shipping calculated at checkout.
-
Low prices.
Price match guarantee
-
In-House Experts.
We know our products
-
Easy Returns.
Quick & Hassle Free
-
Superior Selection.
Extensive product catalog
Panduit PV10-10F-E | Loose Piece Terminal | UPC - 07498334424
Regular price
$26.64
Unit price
Description
Description

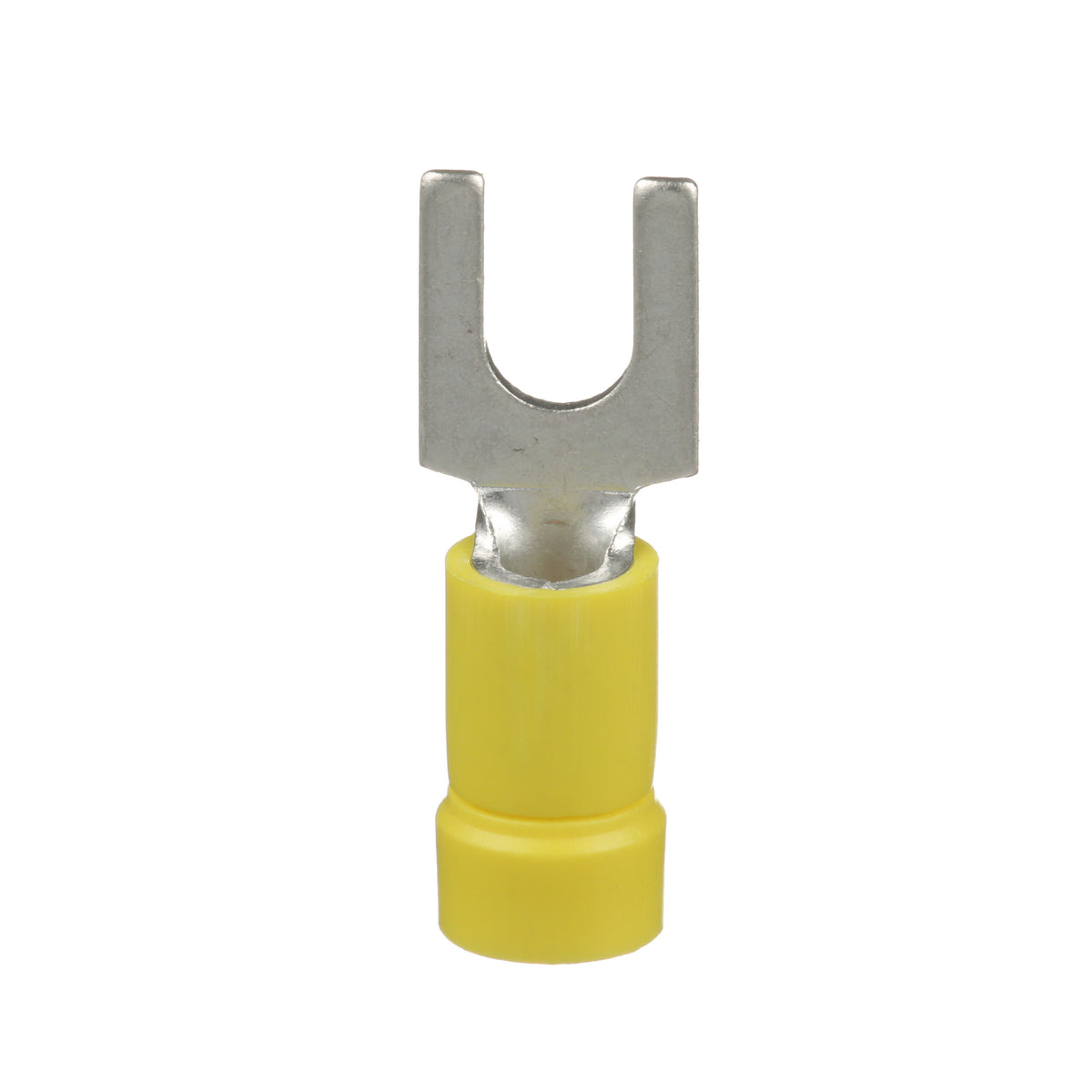

Panduit Pan-Term Fork Terminal, Insulated Loose Piece, Series: PV-F, Copper/Solid/Stranded Conductor, 14 to 10 AWG Conductor, #10 Stud, 1.04 in Length, Brazed Seam Barrel, Fork Tongue, 0.37 in W x 0.04 in THK Tongue, 600 VAC, Specifications: 5/16 in L Wire Strip, 0.225 in Dia Maximum Vinyl Insulation, 1/4 in Clearance, 221 deg F, Copper, TiN Coated, Yellow
- Fast and easy installation
- Insulation support
- Brazed seam protects terminal barrel from splitting during the crimp process
- Internal barrel serrations assure good wire contact and maximum tensile strength
Panduit Panduit PV10-10F-E | Loose Piece Terminal | UPC - 07498334424 Key Specs
| Fork Type | Standard |
| Insulation Material | Vinyl |
| Insulation Type | Vinyl |
| Maximum Copper Conductor Size (AWG SOL) | #10 |
| Maximum Copper Conductor Size (AWG STR) | #10 |
| Maximum Copper Conductor Size (AWG) | #10 |
| Maximum Wire Size (AWG) | #10 |
| Minimum Wire Size (AWG) | #14 |
| Minimum Copper Conductor Size (AWG SOL) | #14 |
| Minimum Copper Conductor Size (AWG STR) | #14 |
| Minimum Copper Conductor Size (AWG) | #14 |
| Stud Size | #10 |
| Wire Strip Length (In.) | 0.31 |
| Wire Strip Length (mm) | 7.9 |
| Standards Met | C22.2 No.65; UL486A-486B; 587H; E52164; LR312120 |
| Maximum Voltage (V) | 600 |
| Maximum Voltage (kV) | 0.6 |
| Base Material | Copper |
| Finish/Coating | Tin-Plated |
| Color Code | Yellow |
Panduit Panduit PV10-10F-E | Loose Piece Terminal | UPC - 07498334424 Environmental Information
| Panduit's RoHS Statement | Download and View |
