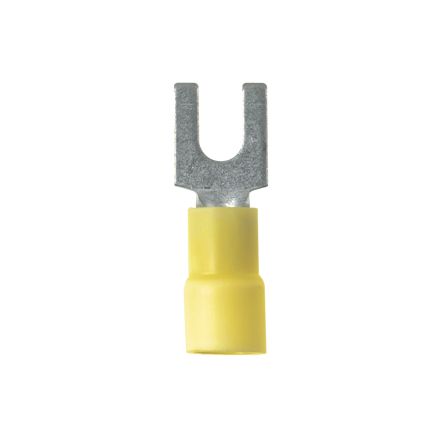

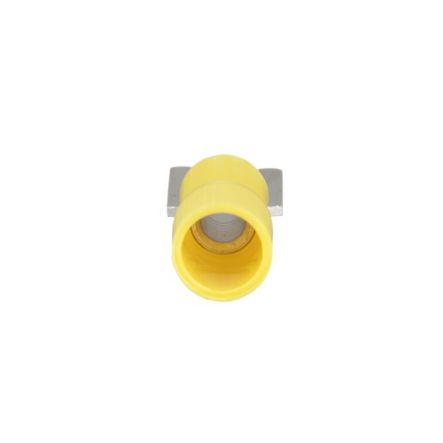

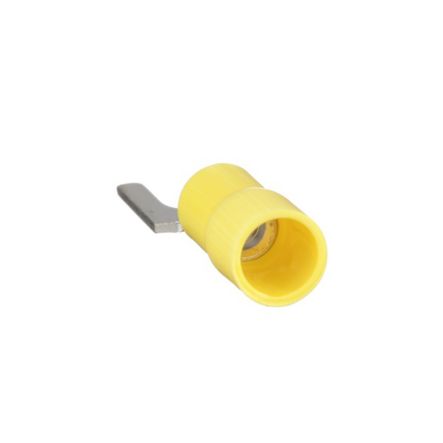

Panduit PV10-10FX-D | Pan-Term PV10-10FX-D Loose Piece Terminal
Fork Terminal, vinyl insulated, 12- 10 AWG, #10 stud size, expanded insulation for large wire O.D., bulk package.
Panduit - PV10-10FX-D - Features
- Fork Terminal, vinyl insulated, 12 - 10 AWG, #10 stud size, expanded insulation for large wire O.D.
- Expanded wire entry designed to accommodate wire with a larger insulation thickness
- Fork design provides for fast and easy installation, without the need to remove fastener
- Insulation support helps to prevent wire damage in bending applications
- Brazed seam protects terminal barrel from splitting during the crimp process
- UL Flammability UL 94V-0, maximum insulation temperature 221F (105C)
- Internal barrel serrations assure good wire contact and maximum tensile strength
- UL and CSA rated up 600 V per UL 486
Specifications
Specifications
Panduit - PV10-10FX-D - Product Categories
- Wire Termination
- Fork Terminals
Panduit - PV10-10FX-D - Specifications
| Brand Name | Panduit |
|---|---|
| Manufacturer Part Number | PV10-10FX-D |
| Item Description | Pan-Term PV10-10FX-D Loose Piece Terminal |
| Fork Type | Standard |
| Insulation Material | Vinyl |
| Insulation Type | Vinyl |
| Maximum Copper Conductor Size (AWG SOL) | #10 |
| Maximum Copper Conductor Size (AWG STR) | #10 |
| Maximum Copper Conductor Size (AWG) | #10 |
| Maximum Wire Size (AWG) | #10 |
| Minimum Wire Size (AWG) | #12 |
| Minimum Copper Conductor Size (AWG SOL) | #12 |
| Minimum Copper Conductor Size (AWG STR) | #12 |
| Minimum Copper Conductor Size (AWG) | #12 |
| Maximum Metric Conductor Size (mm²) | 6 |
| Minimum Metric Conductor Size (mm²) | 4 |
| Stud Size | #10 |
| Wire Strip Length (In.) | 5/16 |
| Wire Strip Length (mm) | 7.9 |
| Standards Met | UL Listed 587H E52164; CSA Certified LR31212 |
| Maximum Voltage (V) | 600 |
| Maximum Voltage (kV) | 0.6 |
| Base Material | Copper |
| Finish/Coating | Tin-Plated |
| Color Code | Yellow |
| Barrel Type | Expanded Entry |
| Barrel Length (In.) | 0.44 |
| Barrel Length (mm) | 11.2 |
| Flammability Rating | UL94V-0 |
| Maximum Operating Temperature (°C) | 105 |
| Maximum Operating Temperature (°F) | 221 |
| Seam Type | Brazed |
| Maximum Wire Insulation Diameter (In.) | 0.25 |
| Maximum Wire Insulation Diameter (mm) | 6.4 |
| Outer Diameter (In.) | 0.25 |
| Outer Diameter (mm) | 6.4 |
| Stud Hole Size (In.) | #10 |
| Stud Hole Size (mm) | 5 |
| Overall Length (In.) | 1.11 |
| Overall Length (mm) | 28.2 |
| Overall Width (In.) | 0.37 |
| Overall Width (mm) | 9.4 |
| Tongue Length (In.) | 0.67 |
| Tongue Length (mm) | 17 |
| Sub Brand | Pan-Term |
| Tongue Thickness (In.) | 0.04 |
| Tongue Thickness (mm) | 1 |
| Tongue Width (In.) | 0.37 |
| Tongue Width (mm) | 9.4 |
| Packaging Type | Box |
Panduit - PV10-10FX-D - Package Information
| UPC | 07498380433 |
|---|---|
| Standard Package Quantity | 500 |
| Standard Package Volume (cf) | 0.0664 |
| Standard. Ctn. Quantity | 0 |
| Standard. Ctn. Volume (cf) | 0.0000 |
