Brand: Panduit
|
SKU:
PAN-PV10-10LFB-2K

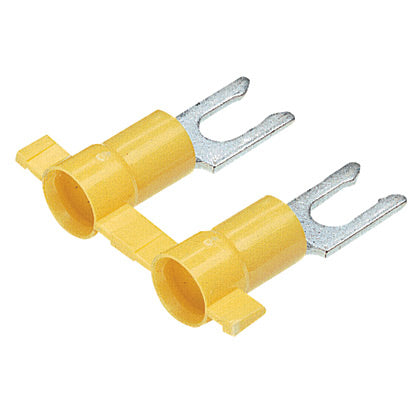

Panduit PV10-10LFB-2K | Terminals on a Reel | UPC - 07498380851
Regular price
$1,039.13
Unit price
Shipping calculated at checkout.
-
Low prices.
Price match guarantee
-
In-House Experts.
We know our products
-
Easy Returns.
Quick & Hassle Free
-
Superior Selection.
Extensive product catalog
Panduit PV10-10LFB-2K | Terminals on a Reel | UPC - 07498380851
Regular price
$1,039.13
Unit price
Brand: Panduit
|
SKU:
PAN-PV10-10LFB-2K
Regular price
$1,039.13
Unit price
Shipping calculated at checkout.
Description
Description
Panduit Pan-Term Reel Smart Fork Terminal, Reel Fed, Series: PV-LFB, Stranded Copper Conductor, 12 to 10 AWG Conductor, #10 Stud, 1.04 in Length, Butted Seam/Funnel Entry Barrel, Locking Fork Tongue, 0.34 in W x 0.04 in THK Tongue, 600 VAC, 11/32 in L Wire Strip, 0.225 in Dia Vinyl Insulation, 0.21 in Clearance, 221 deg F, Copper, Tin Plated, Yellow
Features + Benefits
- Expanded wire entry designed to accommodate wire with a larger insulation thickness
- Fork design provides for fast and easy installation, without the need to remove fastener
- Insulation support helps to prevent wire damage in bending applications
- Brazed seam protects terminal barrel from splitting during the crimp process
- Internal barrel serrations assure good wire contact and maximum tensile strength
Panduit PV10-10LFB-2K | Terminals on a Reel | UPC - 07498380851 Key Specs
| Fork Type | Locking Fork |
| Insulation Material | Vinyl |
| Insulation Type | Vinyl |
| Maximum Copper Conductor Size (AWG SOL) | #10 |
| Maximum Copper Conductor Size (AWG STR) | #10 |
| Maximum Copper Conductor Size (AWG) | #10 |
| Maximum Wire Size (AWG) | #10 |
| Minimum Wire Size (AWG) | #12 |
| Minimum Copper Conductor Size (AWG SOL) | #12 |
| Minimum Copper Conductor Size (AWG STR) | #12 |
| Minimum Copper Conductor Size (AWG) | #12 |
| Maximum Metric Conductor Size (mm²) | 6 |
| Minimum Metric Conductor Size (mm²) | 2.5 |
| Stud Size | #10 |
| Wire Strip Length (In.) | 0.34 |
| Wire Strip Length (mm) | 8.7 |
| Standards Met | C22.2 No.65; UL486A-486B; 587H; E52164; LR312120 |
| Maximum Voltage (V) | 600 |
| Maximum Voltage (kV) | 0.6 |
| Base Material | Copper |
Panduit PV10-10LFB-2K | Terminals on a Reel | UPC - 07498380851 Data Sheets
| Catalog Cut Sheets | Catalog Cut Sheet - PV18-6LFB-3K Product Page | Download and View |
| Part Drawings | Part Drawing - PDF - A41070 | Download and View |
| Selection Guides | Terminal Tools Selection Guide | Download and View |
Panduit PV10-10LFB-2K | Terminals on a Reel | UPC - 07498380851 Environmental Information
| Panduit's RoHS Statement | Download and View |
