Brand: Panduit
|
SKU:
RAW-PV10-10RD

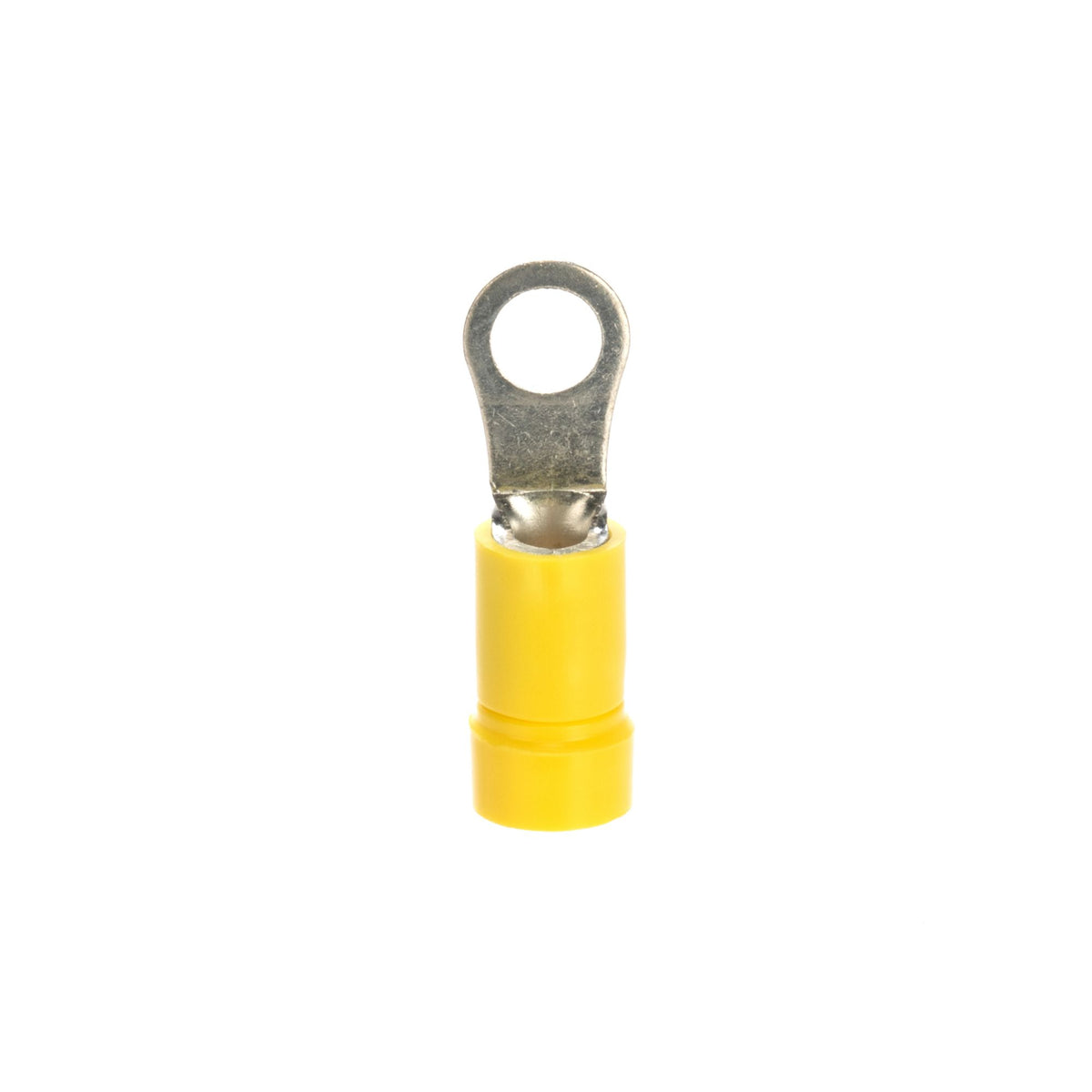

Panduit PV10-10R-D | Pan-Term Ring Terminal, Yellow, Vinyl, 10-12 AWG, #10 Stud, PK500
Regular price
$1.72
Unit price
Shipping calculated at checkout.
-
Low prices.
Price match guarantee
-
In-House Experts.
We know our products
-
Easy Returns.
Quick & Hassle Free
-
Superior Selection.
Extensive product catalog
Panduit PV10-10R-D | Pan-Term Ring Terminal, Yellow, Vinyl, 10-12 A...
Regular price
$1.72
Unit price
Description
Description
Panduit PV10-10R-D | Pan-Term Ring Terminal, Yellow, Vinyl, 10-12 AWG, #10 Stud, PK500
Ensure reliable, insulated connections with our ring terminal, designed for durability and secure performance in various electrical applications.
Specifications
Specifications
Panduit - PV10-10R-D - Specifications
| Stud Hole Size (In.) | #10 |
|---|---|
| Stud Hole Size (mm) | 5 |
| Stud Size | #10 |
| Insulation Material | Vinyl |
| Maximum Copper Conductor Size (AWG) | 10 |
| Minimum Copper Conductor Size (AWG) | #12 |
| Maximum Wire Size (AWG) | 10 |
| Minimum Wire Size (AWG) | #12 |
| Maximum Metric Conductor Size (mm²) | 6 |
| Minimum Metric Conductor Size (mm²) | 4 |
| Wire Strip Length (In.) | 5/16 |
| Wire Strip Length (mm) | 7.9 |
| Standards Met | cULus Listed 587H E52164, CSA Certified LR31212 |
| Base Material | Copper |
| Maximum Voltage (V) | 600 |
| Maximum Voltage (kV) | 0.6 |
| Finish/Coating | Tin-Plated |
| Color Code | Yellow |
| Barrel Type | Funnel Entry |
| Flammability Rating | UL94V-0 |
| Maximum Operating Temperature (°C) | 105 |
Panduit - PV10-10R-D - Package Includes
| UPC | 07498380133 |
|---|---|
| Std. Pkg. Qty. | 500 |
| Std. Pkg. Volume (cf) | 0.0482 |
| Std. Ctn. Qty. | 0 |
| Std. Ctn. Volume (cf) | 0.0000 |
Panduit - PV10-10R-D - Videos
| Panduit PV10-10R-D Video | Click to View |
|---|
