Brand: Panduit
|
SKU:
591838

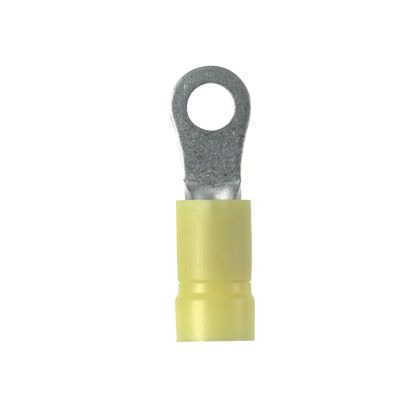

Panduit PV10-10R-E | Ring Terminal, Vinyl, 12-10AWG, #10, PK20
Regular price
$25.49
Unit price
Shipping calculated at checkout.
-
Low prices.
Price match guarantee
-
In-House Experts.
We know our products
-
Easy Returns.
Quick & Hassle Free
-
Superior Selection.
Extensive product catalog
Panduit PV10-10R-E | Ring Terminal, Vinyl, 12-10AWG, #10, PK20
Regular price
$25.49
Unit price
Description
Description
Panduit PV10-10R-E | Ring Terminal,Vinyl,12-10AWG,#10,PK20
Ensure reliable, insulated connections with our ring terminal, designed for durability and secure performance in various electrical applications.
Panduit Pan-Term Terminal, Type PV-R, Solid/Stranded Conductor, 12 to 10 AWG Conductor, #10 Stud, 1.05 in Length, Brazed Seam/Funnel Entry Barrel, Ring Tongue, 0.31 in W x 0.04 in THK Tongue, 600 VAC, 5/16 in L Wire Strip, 0.31 in Clearance, 221 deg F, Copper, Tin Plated, Yellow
Panduit - PV10-10R-E - Features
- Ring tongue design assures a secure connection in high vibration applications
- Metal insulation grip sleeve crimps to wire insulation, providing protection to the crimp joint during high vibration applications
- Internal barrel serrations assure good wire contact and maximum tensile strength
Specifications
Specifications
Panduit - PV10-10R-E - Specifications
| Brand Name | Panduit |
|---|---|
| Manufacturer Part Number | PV10-10R-E |
| Stud Hole Size (mm) | 254 |
| Stud Size | #10 |
| Insulation Material | Nylon |
| Maximum Copper Conductor Size (AWG SOL) | 10 |
| Maximum Copper Conductor Size (AWG STR) | 10 |
| Maximum Copper Conductor Size (AWG) | 10 |
| Minimum Copper Conductor Size (AWG SOL) | 12 |
| Minimum Copper Conductor Size (AWG) | 12 |
| Maximum Wire Size (AWG) | 10 |
| Minimum Wire Size (AWG) | #12 |
| Wire Strip Length (In.) | 0.31 |
| Wire Strip Length (mm) | 7.9 |
| Standards Met | UL Listed 587H E52164; CSA Certified LR31212 |
| Base Material | Copper |
| Maximum Voltage (V) | 1000 |
| Maximum Voltage (kV) | 1 |
| Color Code | Yellow |
| CSA Temperature Rating (°C) | 221 |
| Insulation Diameter (In.) | 0.23 |
| Insulation Diameter (mm) | 5.7 |
| Maximum Operating Temperature (°C) | 105 |
| UPC | 07498336239 |
Panduit - PV10-10R-E - Environmental Information
| RoHS Status | ROHS3 Compliant |
|---|---|
| Moisture Sensitivity Level (MSL) | Not Applicable |
| ECCN | EAR99 |
| HTSUS | 8536.90.4000 |
