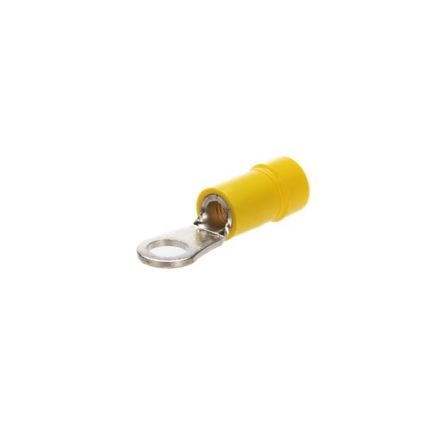

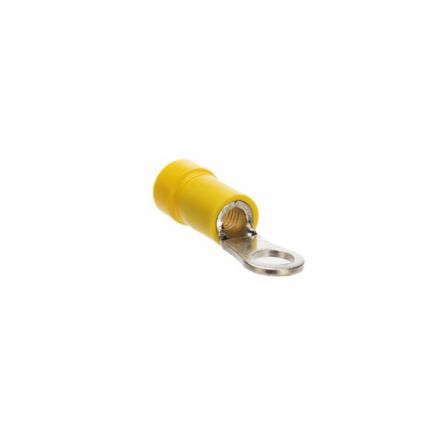

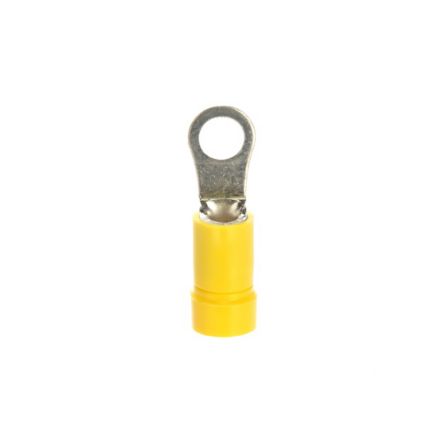

Panduit PV10-10R-L | Pan-Term Pv10-10R-L Ring Terminal, Yellow, Vinyl, 10-12 Awg, #10 Stud, Pk50
The PV10-10R-L Pan-Term Terminal is a vinyl insulated, ring terminal. Brazed seam protects terminal barrel from splitting during the crimp process. Internal barrel serrations assure good wire contact and maximum tensile strength. Extented barrel insulation provides protection and strain relief when crimped.
Panduit - PV10-10R-L - Features
- Panduit Pan-Term Terminal, Type PV-R, Solid/Stranded Conductor, 12 to 10 AWG Conductor, #10 Stud, 1.05 in Length, Brazed Seam/Funnel Entry Barrel, Ring Tongue, 0.31 in W x 0.04 in THK Tongue, 600 VAC, 5/16 in L Wire Strip, 0.31 in Clearance, 221 deg F, Copper, Tin Plated, Yellow
- Insulation support helps to prevent wire damage in bending applications
- Ring tongue design assures a secure connection in high vibration applications
- Brazed seam protects terminal barrel from splitting during the crimp process
- Internal barrel serrations assure good wire contact and maximum tensile strength
Specifications
Specifications
Panduit - PV10-10R-L - Product Categories
- Wire Termination
- Ring Terminals
Panduit - PV10-10R-L - Specifications
| Brand Name | Panduit |
|---|---|
| Manufacturer Part Number | PV10-10R-L |
| Item Description | Pan-Term Pv10-10R-L Ring Terminal, Yellow, Vinyl, 10-12 Awg, #10 Stud, Pk50 |
| Stud Hole Size (In.) | #10 |
| Stud Hole Size (mm) | 5 |
| Stud Size | #10 |
| Insulation Material | Vinyl |
| Maximum Copper Conductor Size (AWG) | #10 |
| Maximum Wire Size (AWG) | #10 |
| Minimum Wire Size (AWG) | #12 |
| Minimum Copper Conductor Size (AWG) | #12 |
| Maximum Metric Conductor Size (mm²) | 6 |
| Minimum Metric Conductor Size (mm²) | 4 |
| Wire Strip Length (In.) | 5/16 |
| Wire Strip Length (mm) | 7.9 |
| Standards Met | cULus Listed 587H E52164, CSA Certified LR31212 |
| Base Material | Copper |
| Maximum Voltage (V) | 600 |
| Maximum Voltage (kV) | 0.6 |
| Finish/Coating | Tin-Plated |
| Color Code | Yellow |
| Barrel Type | Funnel |
| Flammability Rating | UL94V-0 |
| Maximum Operating Temperature (°C) | 105 |
| Maximum Operating Temperature (°F) | 221 |
| Maximum Wire Insulation Diameter (In.) | 0.23 |
| Maximum Wire Insulation Diameter (mm) | 5.8 |
| Seam Type | Brazed |
| Sub Brand | Pan-Term |
| Overall Length (In.) | 1.05 |
| Overall Length (mm) | 26.7 |
| Overall Width (In.) | 0.31 |
| Overall Width (mm) | 7.9 |
| Tongue Thickness (In.) | 0.04 |
| Tongue Thickness (mm) | 1 |
| Tongue Width (In.) | 0.31 |
| Tongue Width (mm) | 7.9 |
| Packaging Type | Bottle |
| Product Type | Ring Terminal |
| For Use With | CT-100, CT-1550, CT-1551, CT-2300/ST (CD-550), CT-2500/L (CT-2550CH), UP14ZLW (CD-550) |
| Part Features | • Ring tongue design assures a secure connection in high vibration applications • Insulation support helps to prevent wire damage in bending applications • Internal barrel serrations assure good wire contact and maximum tensile strength |
| MPN: | PV10-10R-L |
| Barrel Type: | Brazed Seam/Funnel Entry |
| Color: | Yellow |
| Conductor Size: | 12 to 10 AWG |
| Conductor Type: | Solid/Stranded |
| Finish: | Tin Plated |
| Length: | 1.05 in |
| Material: | Copper |
| Series: | PV Series |
| Specifications: | 5/16 in L Wire Strip, 0.31 in Clearance |
| Stud Size: | #10 |
| Temperature Rating: | 221 deg F |
| Tongue Size: | 0.31 in W x 0.04 in THK |
| Tongue Type: | Ring |
| Type: | Type PV-R |
| Voltage Rating: | 600 VAC |
Panduit - PV10-10R-L - Package Information
| UPC | 07498380132 |
|---|---|
| Standard Package Quantity | 50 |
| Standard Package Volume (cf) | 0.0037 |
| Standard Ctn. Quantity | 500 |
| Standard Ctn. Volume (cf) | 0.0368 |
Panduit - PV10-10R-L - Videos
| Video 1 | Click to View |
|---|---|
| Video 2 | Click to View |
