Brand: Panduit
|
SKU:
PAN-PV10-10RB-2K

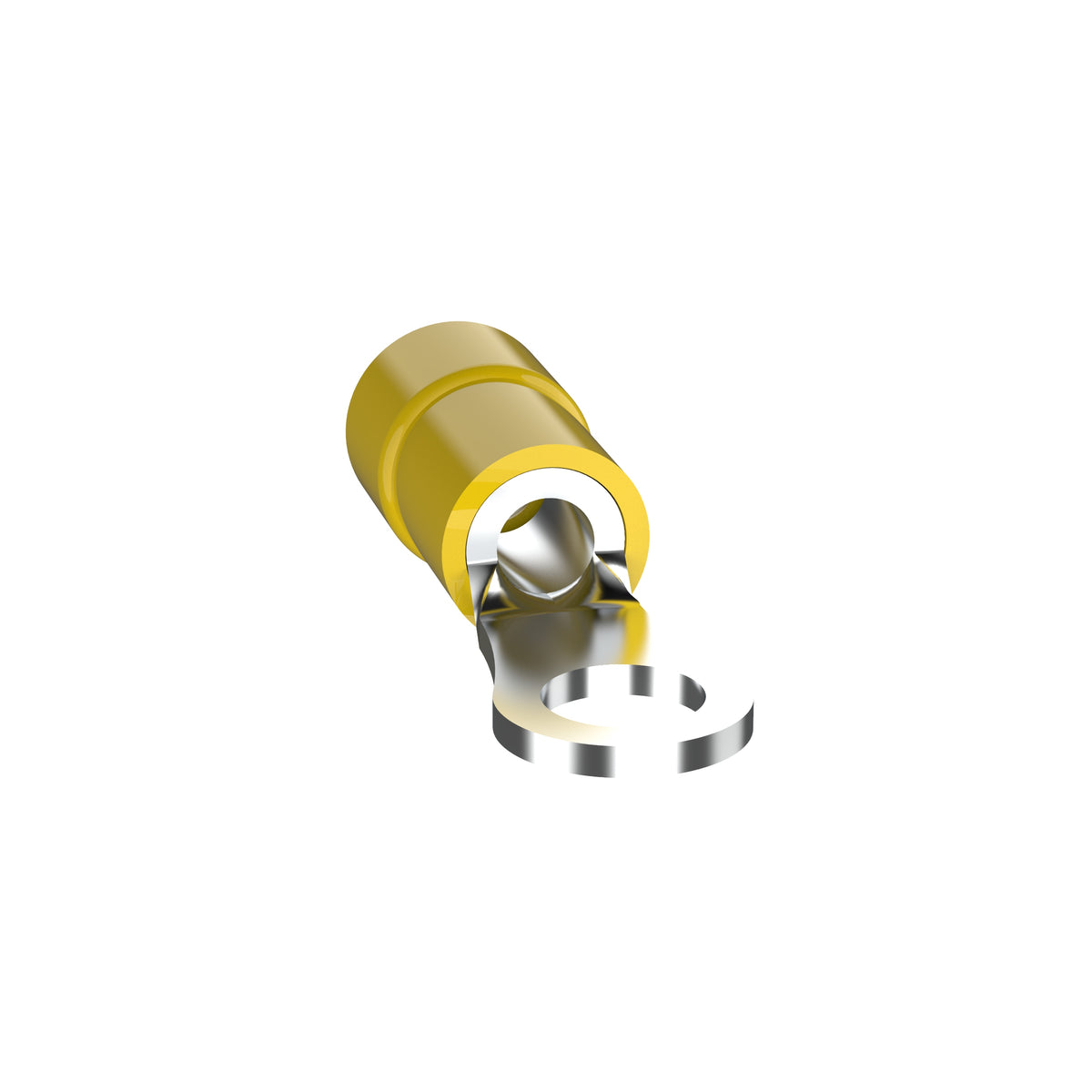

Panduit PV10-10RB-2K | Ring Terminal on Reel | UPC - 07498380361
Regular price
$625.56
Unit price
Shipping calculated at checkout.
-
Low prices.
Price match guarantee
-
In-House Experts.
We know our products
-
Easy Returns.
Quick & Hassle Free
-
Superior Selection.
Extensive product catalog
Panduit PV10-10RB-2K | Ring Terminal on Reel | UPC - 07498380361
Regular price
$625.56
Unit price
Brand: Panduit
|
SKU:
PAN-PV10-10RB-2K
Regular price
$625.56
Unit price
Shipping calculated at checkout.
Description
Description
Panduit Pan-Term Reel Smart Terminal, Type PV-RB, Solid/Stranded Conductor, 12 to 10 AWG Conductor, #10 Stud, 1.02 in Length, Insulation Support/Funnel Entry Barrel, Ring Tongue, 0.31 in W x 0.03 in THK Tongue, 600 VAC, 11/32 in L Wire Strip, 0.31 in Clearance, 221 deg F, Copper, Tin Plated, Yellow
Features + Benefits
- Expanded wire entry designed to accommodate wire with a larger insulation thickness
- Ring tongue design assures a secure connection in high vibration applications
- Insulation support helps to prevent wire damage in bending applications
- Brazed seam protects terminal barrel from splitting during the crimp process
- Internal barrel serrations assure good wire contact and maximum tensile strength
- Expanded insulation for large wire OD
Panduit PV10-10RB-2K | Ring Terminal on Reel | UPC - 07498380361 Key Specs
| Insulation Material | Vinyl |
| Maximum Copper Conductor Size (AWG SOL) | #10 |
| Maximum Copper Conductor Size (AWG STR) | #10 |
| Maximum Wire Size (AWG) | #10 |
| Minimum Wire Size (AWG) | #12 |
| Minimum Copper Conductor Size (AWG SOL) | #12 |
| Minimum Copper Conductor Size (AWG STR) | #12 |
| Maximum Metric Conductor Size (mm²) | 6 |
| Minimum Metric Conductor Size (mm²) | 4 |
| Wire Strip Length (In.) | 11/32 |
| Wire Strip Length (mm) | 8.7 |
| Standards Met | UL 486A/B, and CSA 22.2 No.65 |
| Base Material | Copper |
| Maximum Voltage (V) | 600 |
| Maximum Voltage (kV) | 0.6 |
| Finish/Coating | Tin-Plated |
| Color Code | Yellow |
| Barrel Type | Funnel |
| Flammability Rating | UL94V-0 |
| Maximum Operating Temperature (°C) | 105 |
Panduit PV10-10RB-2K | Ring Terminal on Reel | UPC - 07498380361 Data Sheets
| Catalog Cut Sheets | Catalog Cut Sheet - PV18-4RNB-3K Product Page | Download and View |
| Part Drawings | Ring Terminals-A41067 | Download and View |
| Selection Guides | Terminal Tools Selection Guide | Download and View |
Panduit PV10-10RB-2K | Ring Terminal on Reel | UPC - 07498380361 Environmental Information
| Panduit's RoHS Statement | Download and View |
