Brand: Panduit
|
SKU:
DRC-036558

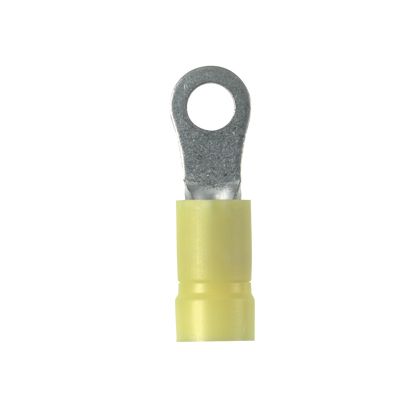

Panduit PV10-12R-Q | Pan-Term PV10-12R-Q Ring Terminal
Regular price
$44.88
Unit price
Shipping calculated at checkout.
-
Low prices.
Price match guarantee
-
In-House Experts.
We know our products
-
Easy Returns.
Quick & Hassle Free
-
Superior Selection.
Extensive product catalog
Panduit PV10-12R-Q | Pan-Term PV10-12R-Q Ring Terminal
Regular price
$44.88
Unit price
Description
Description
Panduit PV10-12R-Q | Pan-Term PV10-12R-Q Ring Terminal
Ring Terminal, 12 – 10 AWG, 1/2" stud size, vinyl insulated, funnel entry, standard package.
Specifications
Specifications
Panduit - PV10-12R-Q - Product Categories
- Wire Termination
- Ring Terminals
Panduit - PV10-12R-Q - Specifications
| Brand Name | Panduit |
|---|---|
| Manufacturer Part Number | PV10-12R-Q |
| Item Description | Pan-Term PV10-12R-Q Ring Terminal |
| Minimum Operating Temperature (°C) | 105 |
| Stud Hole Size (In.) | 1/2" |
| Stud Hole Size (mm) | 12 |
| Stud Size | 1/2" |
| Insulation Material | Nylon |
| Maximum Copper Conductor Size (AWG) | #10 |
| Maximum Wire Size (AWG) | #10 |
| Minimum Wire Size (AWG) | #12 |
| Minimum Copper Conductor Size (AWG) | #12 |
| Wire Strip Length (In.) | 5/16 |
| Wire Strip Length (mm) | 7.8 |
| Standards Met | UL Listed 587H E52164, CSA Certified LR31212 |
| Base Material | Copper |
| Maximum Voltage (V) | 1000 |
| Maximum Voltage (kV) | 1 |
| Finish/Coating | Tin-Plated |
| Color Code | Yellow |
| CSA Temperature Rating (°C) | 221 |
| Flammability Rating | UL94V-0 |
| Insulation Diameter (In.) | 0.23 |
| Insulation Diameter (mm) | 5.7 |
| Maximum Operating Temperature (°C) | 105 |
| Maximum Operating Temperature (°F) | 221 |
| Maximum Wire Insulation Diameter (In.) | 0.23 |
| Maximum Wire Insulation Diameter (mm) | 5.7 |
| Outer Diameter (In.) | 0.53 |
| Seam Type | Brazed |
| Outer Diameter (mm) | 13.5 |
| Sub Brand | Pan-Term |
| Overall Length (In.) | 1.46 |
| Overall Length (mm) | 37.1 |
| Overall Width (In.) | 0.72 |
| Overall Width (mm) | 18.3 |
| Tongue Width (In.) | 0.72 |
| Tongue Width (mm) | 18.3 |
| Packaging Type | Bottle |
| Product Type | Ring Terminal |
| For Use With | CT-100, CT-1550, CT-1551, CT-2300/ST (CD-550), CT-2500/L (CT-2550CH), UP14ZLW (CD-550) |
| Part Features | • Ring tongue design assures a secure connection in high vibration applications • Insulation support helps to prevent wire damage in bending applications • Internal barrel serrations assure good wire contact and maximum tensile strength |
Brand Name - PV10-12R-Q - Package Information
| UPC | 07498312450 |
|---|---|
| Standard Package Quantity | 25 |
| Standard Package Volume (cf) | 0.0926 |
| Standard Ctn. Quantity | 250 |
| Standard Ctn. Volume (cf) | 0.9259 |
