Panduit PV10-14F-D | Loose Piece Terminal | UPC - 07498380417
Regular price
$235.01
Unit price
Brand: Panduit
|
SKU:
PAN-PV10-14FD
Regular price
$235.01
Unit price
Shipping calculated at checkout.
Description
Description

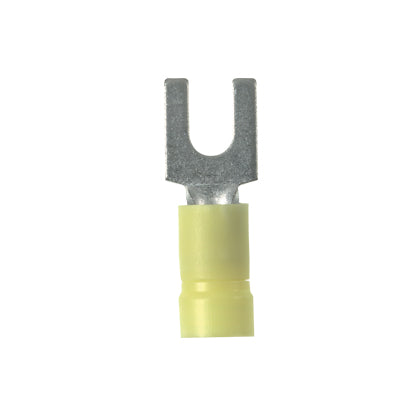

Panduit Pan-Term Fork Terminal, Loose Piece, Series: PV-F, Stranded Copper Conductor, 14 to 10 AWG Conductor, 1/4 in Stud, 1.14 in Length, Brazed Seam/Funnel Entry Barrel, Fork Tongue, 0.49 in W x 0.04 in THK Tongue, 600 VAC, 5/16 in L Wire Strip, 0.225 in Dia Vinyl Insulation, 0.32 in Clearance, 221 deg F, Copper, Tin Plated, Yellow
Features + Benefits
- Fork design provides for fast and easy installation, without the need to remove fastener
- Metal insulation grip sleeve crimps to wire insulation, providing protection to the crimp joint during high vibration applications
- Internal barrel serrations assure good wire contact and maximum tensile strength
Panduit PV10-14F-D | Loose Piece Terminal | UPC - 07498380417 Key Specs
| Fork Type | Standard |
| Insulation Material | Vinyl |
| Insulation Type | Vinyl |
| Maximum Copper Conductor Size (AWG SOL) | #10 |
| Maximum Copper Conductor Size (AWG STR) | #10 |
| Maximum Copper Conductor Size (AWG) | #10 |
| Maximum Wire Size (AWG) | #10 |
| Minimum Wire Size (AWG) | #12 |
| Minimum Copper Conductor Size (AWG SOL) | #12 |
| Minimum Copper Conductor Size (AWG STR) | #12 |
| Minimum Copper Conductor Size (AWG) | #12 |
| Maximum Metric Conductor Size (mm²) | 6 |
| Minimum Metric Conductor Size (mm²) | 2.5 |
| Stud Size | 1/4" |
| Wire Strip Length (In.) | 0.31 |
| Wire Strip Length (mm) | 7.9 |
| Standards Met | American Bureau of Shipping (ABS); C22.2 No.65; UL486A-486B; 587H; E52164; LR312120 |
| Maximum Voltage (V) | 600 |
| Maximum Voltage (kV) | 0.6 |
| Base Material | Copper |
Panduit PV10-14F-D | Loose Piece Terminal | UPC - 07498380417 Data Sheets
| Part Drawings | Part Drawing - PDF - A41189 | Download and View |
| Selection Guides | Terminal Tools Selection Guide | Download and View |
Panduit PV10-14F-D | Loose Piece Terminal | UPC - 07498380417 Environmental Information
| Panduit's RoHS Statement | Download and View |
