Brand: Panduit
|
SKU:
10044842
Panduit PV10-14LFX-L | Loose Piece Terminal | UPC - 07498380838
Regular price
$74.21
Unit price
Shipping calculated at checkout.
-
Low prices.
Price match guarantee
-
In-House Experts.
We know our products
-
Easy Returns.
Quick & Hassle Free
-
Superior Selection.
Extensive product catalog
Panduit PV10-14LFX-L | Loose Piece Terminal | UPC - 07498380838
Regular price
$74.21
Unit price
Description
Description

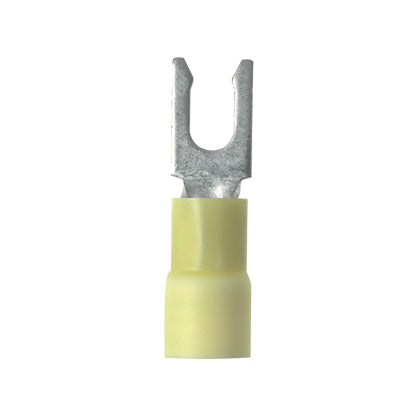

Panduit Pan-Term Fork Terminal, Loose Piece, Series: PV-LFX, Stranded Copper Conductor, 12 to 10 AWG Conductor, 1/4 in Stud, 1-1/4 in Length, Brazed Seam/Funnel Entry Barrel, Locking Fork Tongue, 0.46 in W x 0.04 in THK Tongue, 600 VAC, 5/16 in L Wire Strip, 1/4 in Dia Vinyl Insulation, 0.32 in Clearance, 221 deg F, Copper, Tin Plated, Yellow
- Fork design provides for fast and easy installation, without the need to remove fastener
- Flange design provides extra secure connection on a variety of applications
- Insulation support helps to prevent wire damage in bending applications
- Internal barrel serrations assure good wire contact and maximum tensile strength
Panduit Panduit PV10-14LFX-L | Loose Piece Terminal | UPC - 07498380838 Key Specs
| Fork Type | Locking Fork |
| Insulation Material | Vinyl |
| Insulation Type | Vinyl |
| Maximum Copper Conductor Size (AWG STR) | #10 |
| Maximum Copper Conductor Size (AWG) | #10 |
| Maximum Wire Size (AWG) | #10 |
| Minimum Wire Size (AWG) | #12 |
| Minimum Copper Conductor Size (AWG STR) | #12 |
| Minimum Copper Conductor Size (AWG) | #12 |
| Maximum Metric Conductor Size (mm²) | 6 |
| Minimum Metric Conductor Size (mm²) | 4 |
| Stud Size | 1/4" |
| Wire Strip Length (In.) | 0.31 |
| Wire Strip Length (mm) | 7.9 |
| Standards Met | American Bureau of Shipping (ABS); C22.2 No.65; UL486A-486B; 587H; E52164; LR312120 |
| Maximum Voltage (V) | 600 |
| Maximum Voltage (kV) | 0.6 |
| Base Material | Copper |
Panduit Panduit PV10-14LFX-L | Loose Piece Terminal | UPC - 07498380838 Environmental Information
| Panduit's RoHS Statement | Download and View |
